Amptron 24V BluEdge 100Ah 200A Elite Lithium Battery Bundle
Pick this product up from any of the locations below! Call us on 1300 902 361 for more details.
- Port Kennedy, Western Australia 6172
- Bellambi, New South Wales 2518
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Amptron Elite 24V 100Ah 200A Battery Bundle: A Complete System, No Shopping List
A 24V battery on its own won't get you far. You still need a charger, a way to see what it's doing, a proper mount and the right comms lead, and hunting each one down separately is how setups end up half finished.
The Amptron 24V BluEdge 100Ah Elite Bundle puts the 24V 100Ah battery together with its matched charger, display and mounting tray, all in one order.
Sort the whole 24V 100Ah system in one order and add the bundle to your cart today.

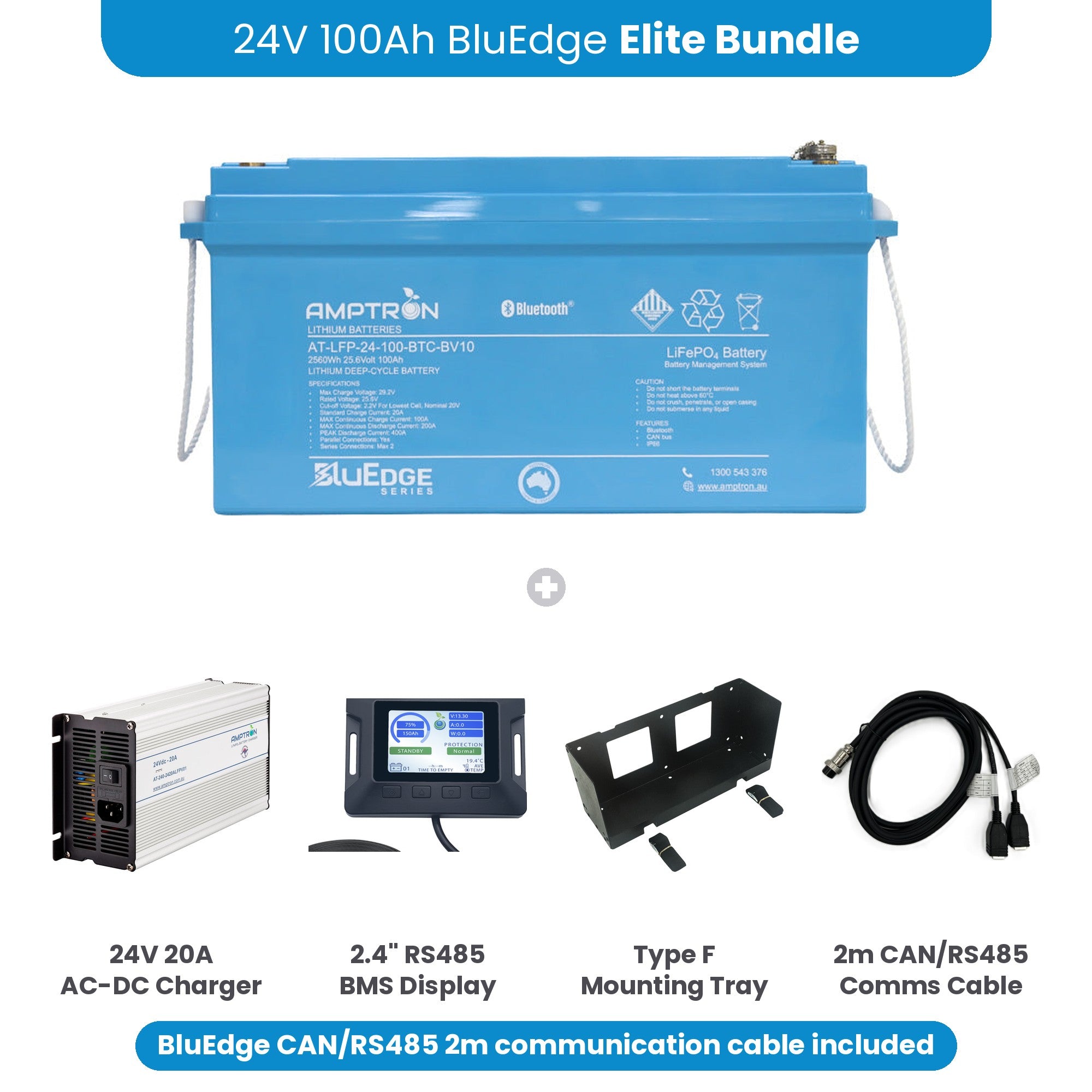

What's In The Elite Bundle:

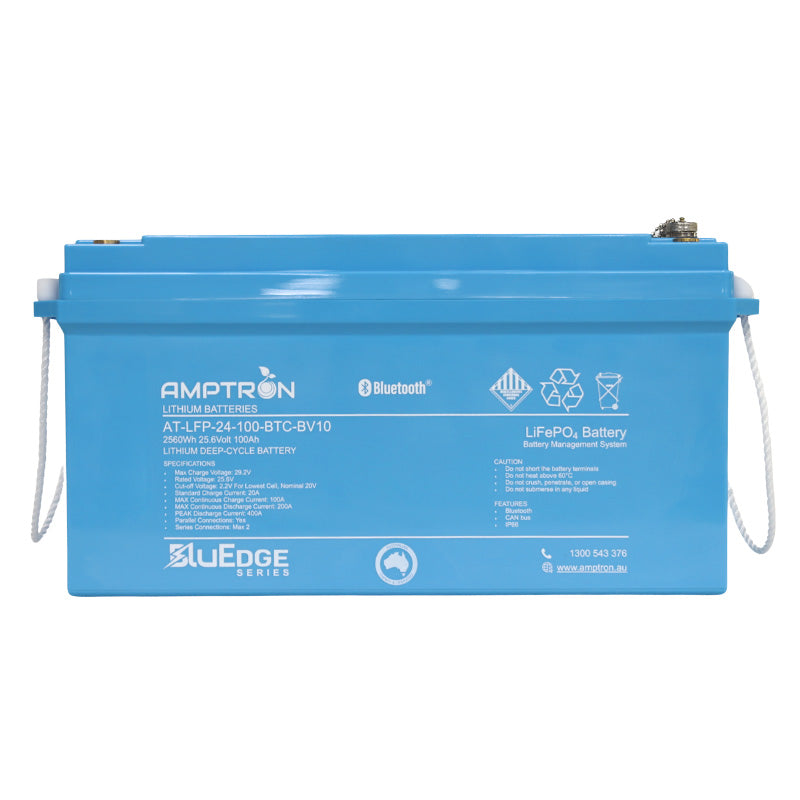

- 1 x Amptron 24V BluEdge 100Ah 200A Lithium Battery ($1,999 RRP)

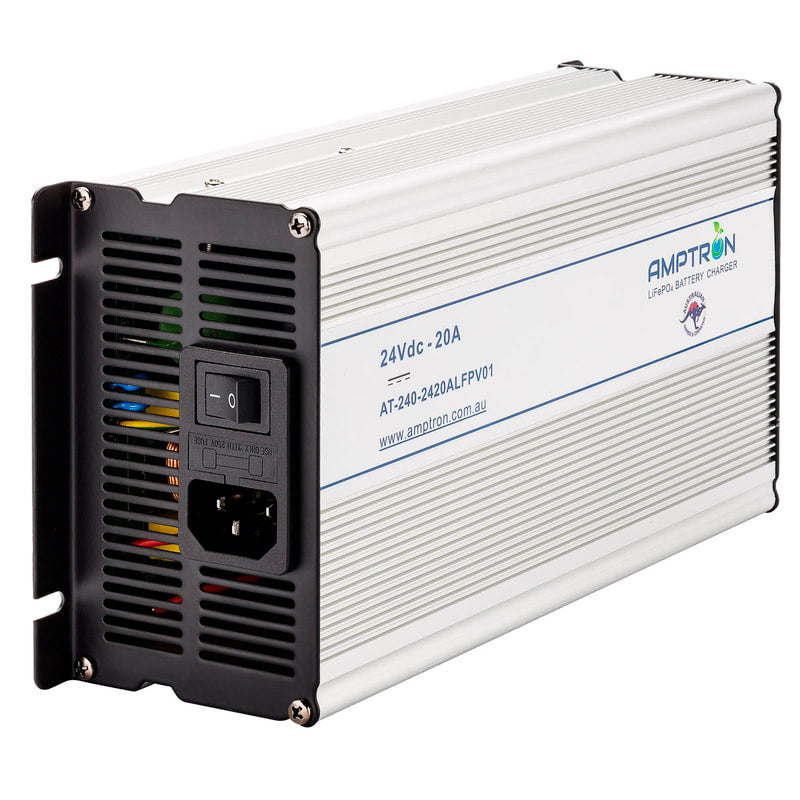

- 1 x Amptron 24V 20A AC-DC Battery Charger ($310 RRP)

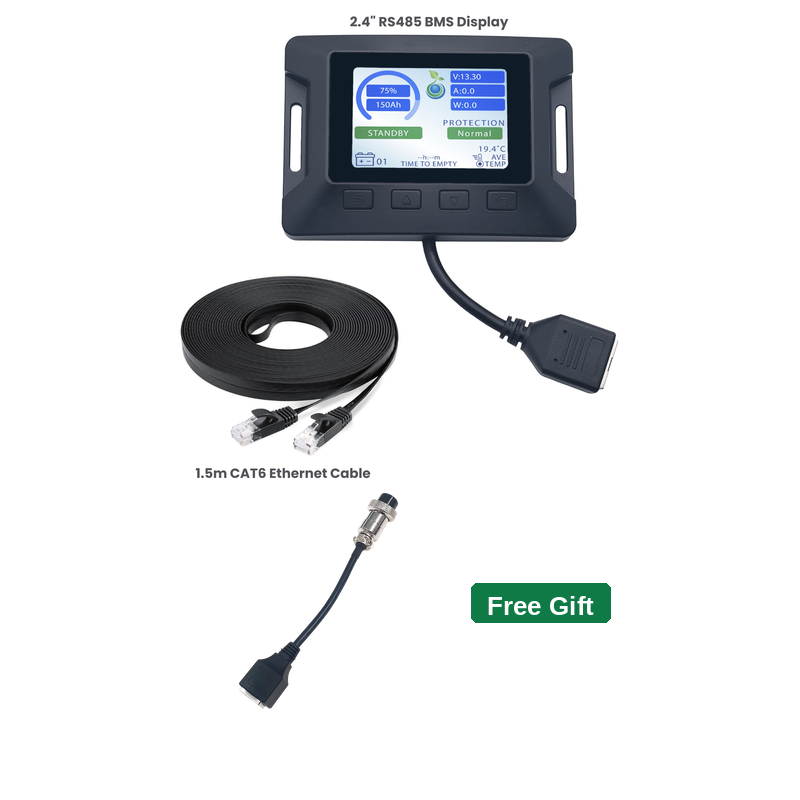

- 1 x Amptron BluEdge RS485 2.4″ BMS LCD Display, with its own 1.5m CAT6 UTP cable ($175 RRP)
- 1 x Amptron Type F Mounting Tray ($179 RRP)

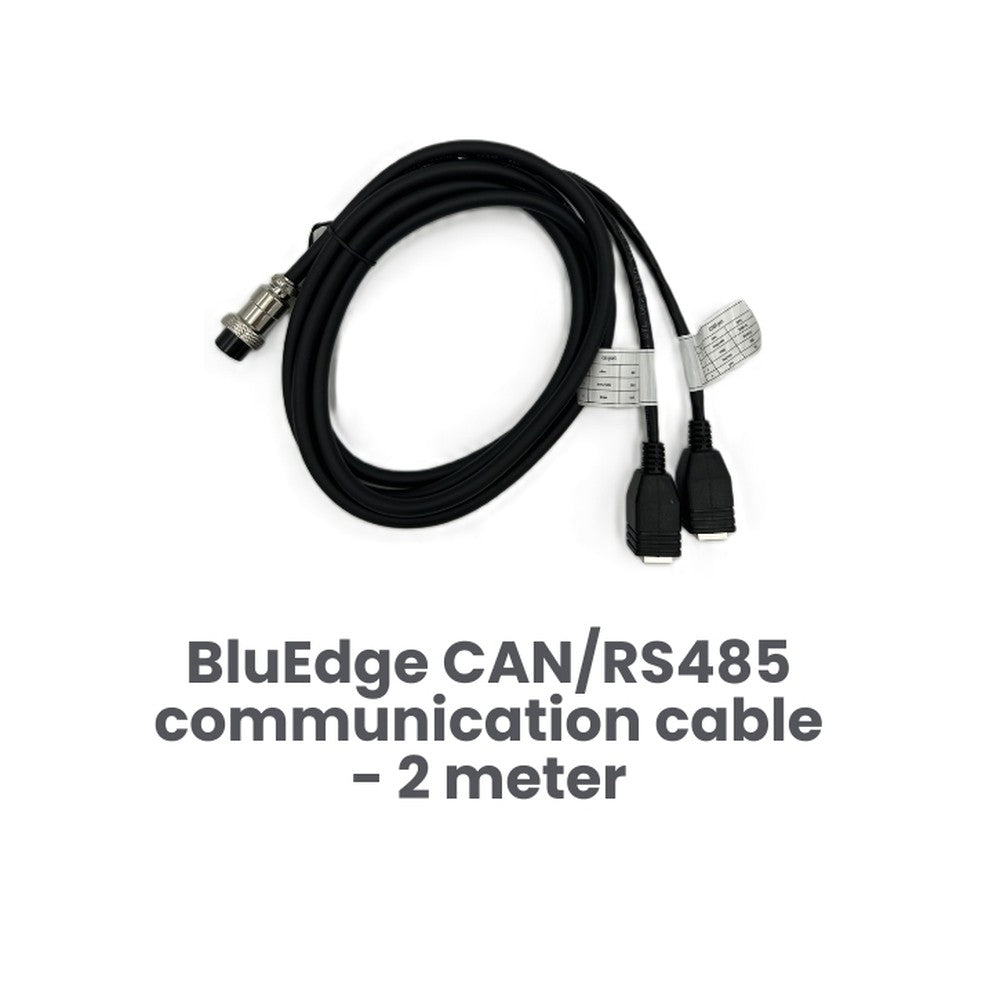

Also included: a 2m BluEdge CAN/RS485 communication cable ($20 RRP).
Total RRP of everything included: $2,683.
Why The Amptron 24V BluEdge 100Ah Elite Bundle May Be Right For You:
- Get serious grunt from a compact battery with 200A continuous discharge from a 100Ah / 2560Wh pack weighing just 22kg.
- Charge it properly from day one with the matched Amptron 24V 20A AC-DC Battery Charger, so there's no guessing whether a charger suits your battery.
- See exactly what your battery's doing on the BluEdge RS485 2.4″ BMS LCD Display, which reads straight from the battery's BMS and shows state of charge, voltage, current, power, temperature and alarm codes.
- Mount it once and forget it on a powder-coated aluminium Type F Mounting Tray with a silicone base pad and two locking straps. The Type F tray is listed by Amptron as a fit for the 24V 100Ah BluEdge (AT-LFP-24-100-BTC-BV10), so the battery sits snug instead of sliding about.
- Skip the shopping list and get the battery and its matched accessories together in one order.
Amptron 24V BluEdge 100Ah 200A Lithium Battery Key Specs
| MODEL: | AT-LFP-24-100-BTC-BV10 |
| CAPACITY: | 100Ah / 2560Wh (at 0.2C) |
| NOMINAL VOLTAGE: | 25.6V |
| MAX CONTINUOUS DISCHARGE: | 200A |
| PEAK DISCHARGE (2 SEC): | 400A |
| DIMENSIONS (L x W x H): | 485 x 168 x 240mm |
| WEIGHT: | 22kg |
| IP RATING: | IP67 |
| COMMS: | Bluetooth, CAN bus / RS485 |
| WARRANTY: | 5 years (Australian based) |
Amptron 24V BluEdge 100Ah Elite Bundle FAQs
1. What's included in the Elite Bundle?
The Amptron 24V BluEdge 100Ah 200A Lithium Battery, the Amptron 24V 20A AC-DC Battery Charger, the Amptron BluEdge RS485 2.4″ BMS LCD Display, the Amptron Type F Mounting Tray, plus a 2m BluEdge CAN/RS485 communication cable.
2. What is the RRP of everything included?
At RRP, the battery, charger, display, mounting tray and 2m CAN/RS485 cable come to $2,683 when bought separately.
3. Does the 2.4″ display work with this battery?
Yes. It reads data straight from the BluEdge battery's BMS over RS485 and includes cell-voltage information on compatible 24V, 36V and 48V BluEdge systems. It comes with its own 1.5m CAT6 UTP cable.
4. What warranty does the battery have?
The BluEdge series is backed by an Australian based 5-year warranty. Each accessory in the bundle is covered under its own product warranty.
