Amptron Mounting Tray For 24V 100Ah BluEdge And 36V 50Ah Or 85Ah Classic Batteries
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Secure Your Amptron Battery With A Type F Mounting Tray Today
Moving to 24V or 36V is a big step up for a touring or off-grid build, but the battery still has to live through the same corrugations as any other. If it isn't held down properly, every bump goes straight through the terminals and cables, and a good battery wears out years before it should.

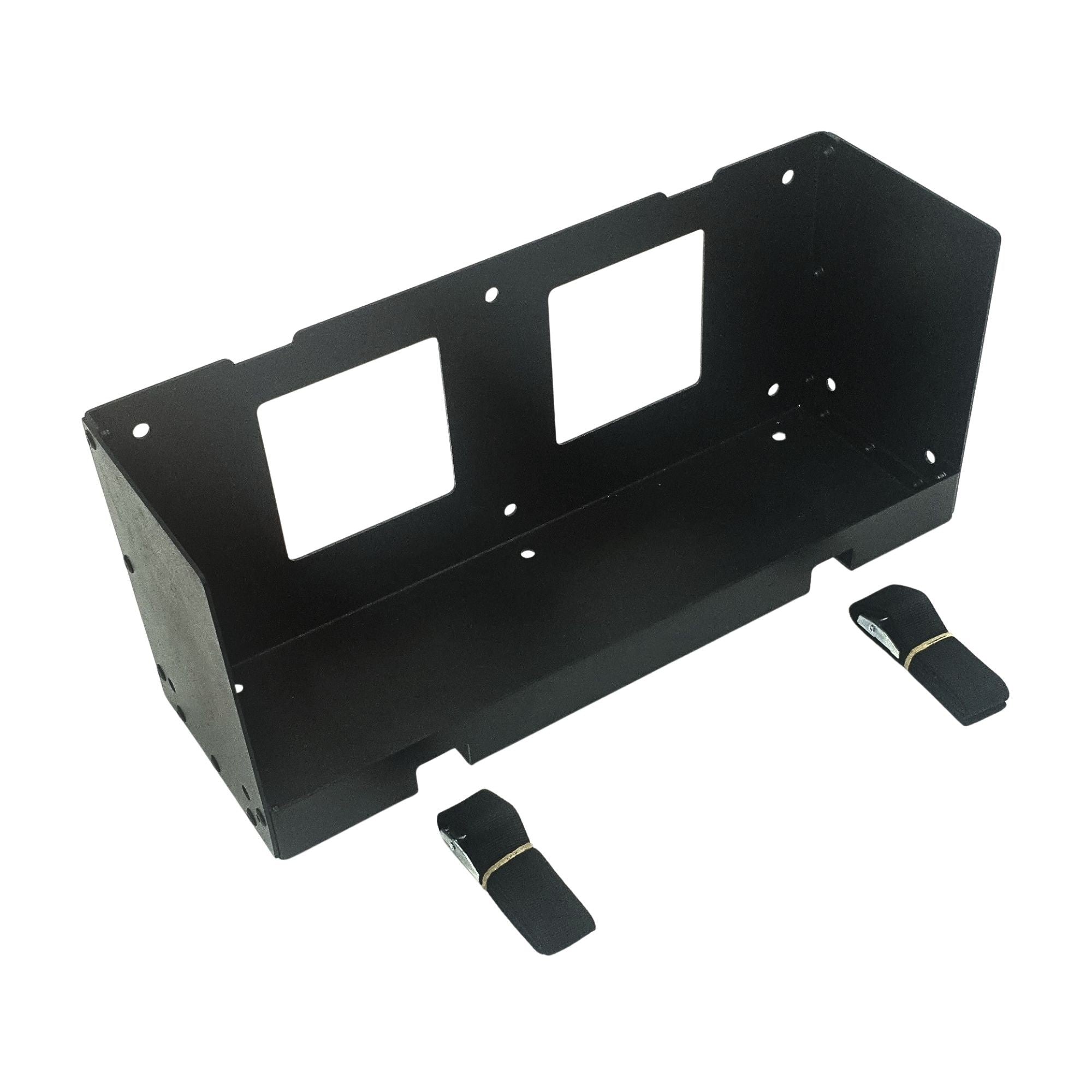

This tray is built for the Amptron 24V 100Ah BluEdge and the 36V 50Ah and 85Ah Classic batteries. Powder-coated aluminium, a thick silicone base pad, and two heavy-duty locking straps over the top.
Lock your higher-voltage setup down properly. Add one to your cart today.
Why The Amptron Mounting Tray May Be Right For You:
- Stop the battery shifting on rough ground with a tray sized for the 24V and 36V models it's built for, so there's no slop for the corrugations to work on.
- Protect your terminals and cables thanks to the thick silicone base pad, which absorbs vibration and impact rather than passing it into the connections.
- Strap it down for good using two heavy-duty flexible locking straps, which hold far better than a bungee or something improvised.
- Keep the weight down at 2.55kg, so you're adding a mount rather than another load to carry.
- Leave it where it cops the weather because the powder coating resists corrosion and dust, so it still looks right after a few seasons out bush.
- Cover three batteries with one tray since it suits the 24V 100Ah BluEdge, 36V 50Ah Classic and 36V 85Ah Classic, which helps if you change setups later.

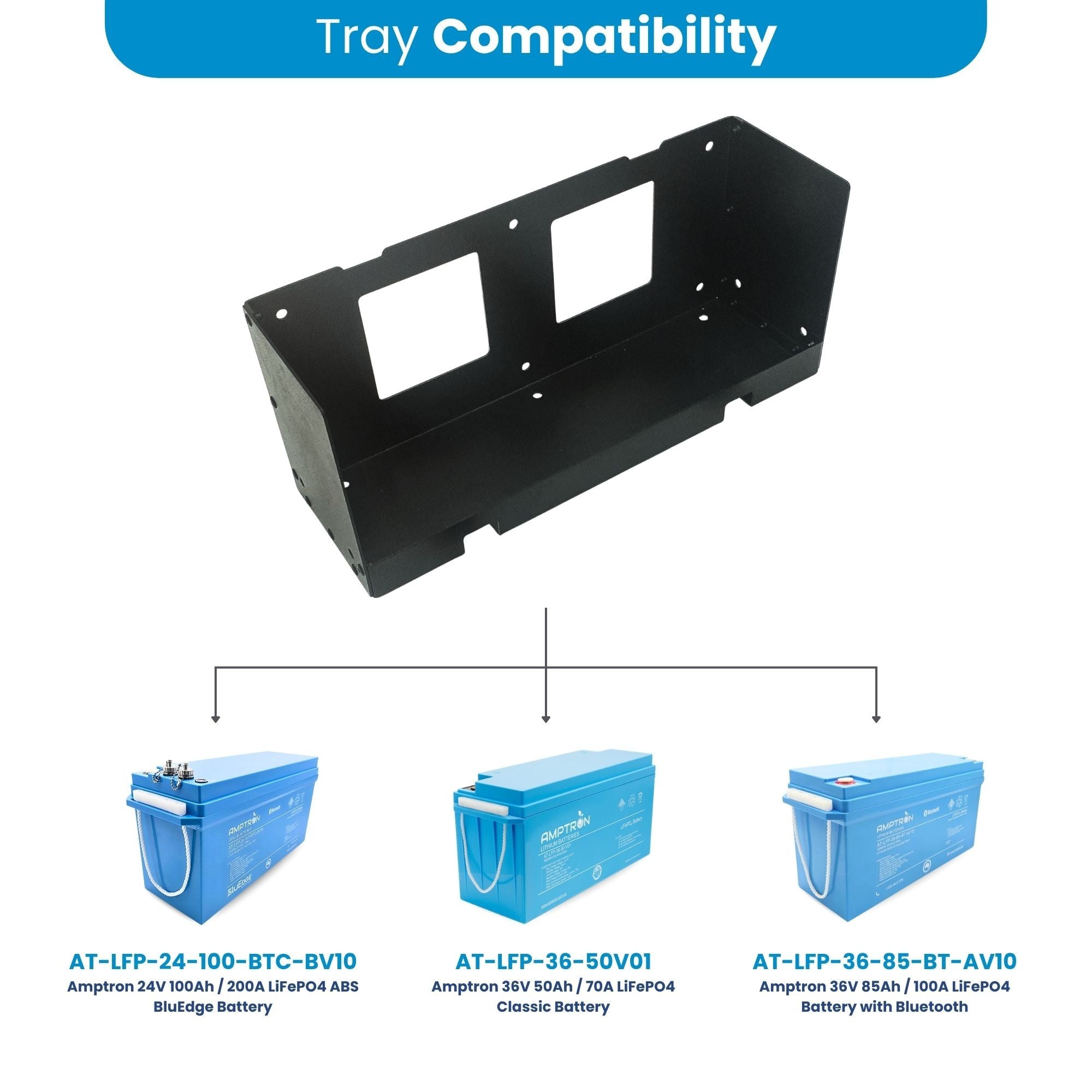

Which Batteries It Fits:
- AT-LFP-24-100-BTC-BV10, Amptron 24V 100Ah / 200A LiFePO4 ABS BluEdge
- AT-LFP-36-50V01, Amptron 36V 50Ah / 70A LiFePO4 Classic
- AT-LFP-36-85-BT-AV10, Amptron 36V 85Ah / 100A LiFePO4 Classic with Bluetooth
Where It Suits:
- Under rear seats or in the tray back of 4WDs
- Boats
- Dual cab and single cab ute trays
- Caravans and motorhomes
- Camper trailers
- Off-grid and solar power setups
- Commercial and fleet vehicles
- Any job needing a secure battery mount
What's In The Box:
- 1 x Amptron aluminium mounting tray
- 2 x flexible locking straps
- 1 x silicone shock-absorbing base pad
Amptron Mounting Tray Tech Specs
| MODEL: | Type F |
| SKU: | AT-UMT-F |
| MATERIAL: | Powder coated aluminium |

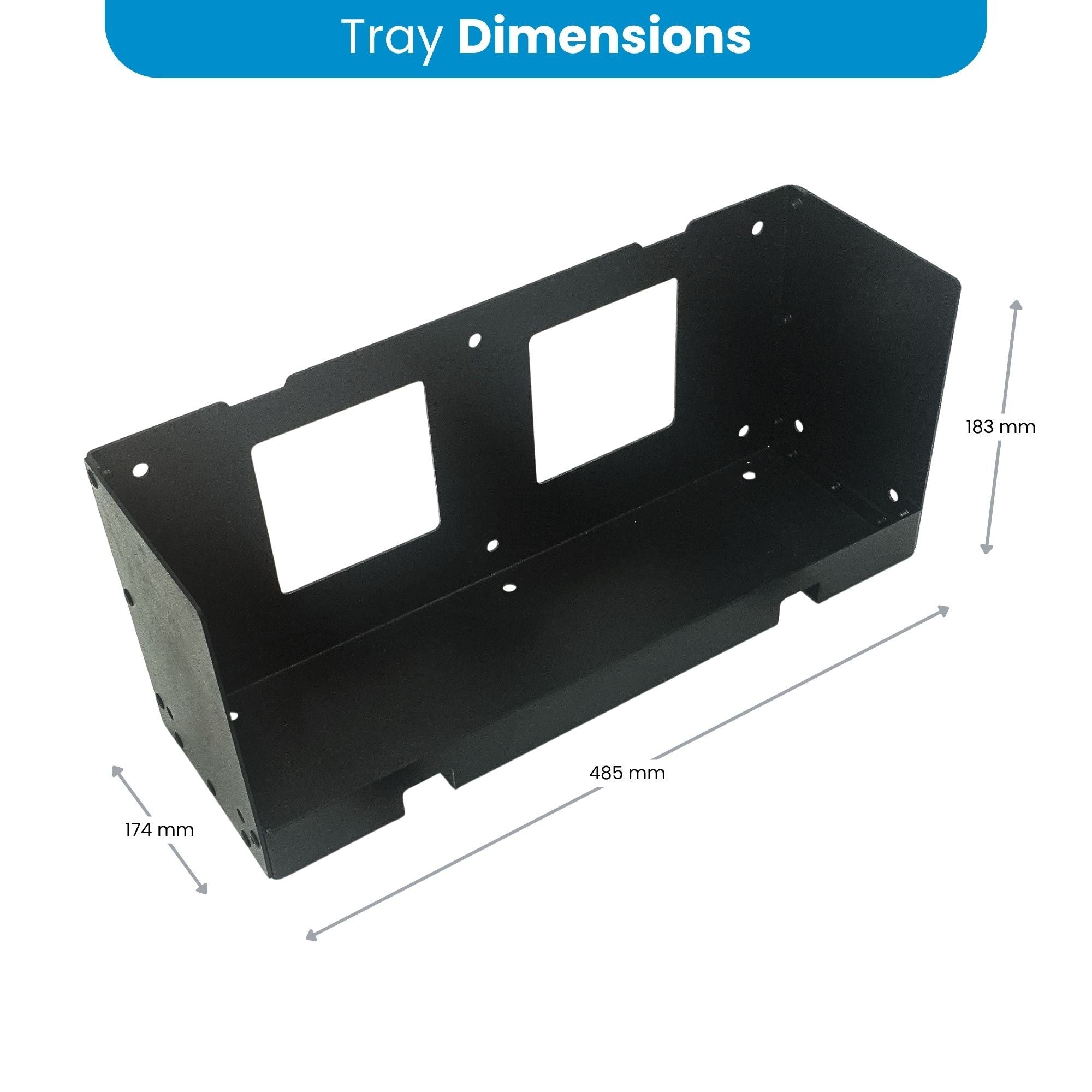

| TRAY DIMENSIONS (L x W x H): | 485 x 183 x 174 mm |
| WEIGHT: | 2.55 kg |
| BASE PAD: | Thick silicone shock-absorbing pad |
| LOCKING MECHANISM: | 2 x flexible locking straps |
| FINISH: | Powder coated, corrosion and dust resistant |
| COMPATIBLE BATTERIES: | Amptron 24V 100Ah BluEdge, 36V 50Ah Classic and 36V 85Ah Classic (AT-LFP-24-100-BTC-BV10, AT-LFP-36-50V01, AT-LFP-36-85-BT-AV10) |
| RECOMMENDED APPLICATIONS: | 4WD rear seat, ute tray (dual or single cab), RV and caravan, custom installs |
| INSTALLATION: | Self-installation, no professional fitting required |
Amptron Mounting Tray FAQs
1. Which batteries does this tray fit?
Three of them: the 24V 100Ah BluEdge (AT-LFP-24-100-BTC-BV10), the 36V 50Ah Classic (AT-LFP-36-50V01) and the 36V 85Ah Classic with Bluetooth (AT-LFP-36-85-BT-AV10). Tray dimensions are 485 x 183 x 174mm, so another battery may fit if it sits inside those measurements, but measure yours first. Ring us on 1300 902 361 if you want it checked.
2. I've got a 24V 100Ah. Is this the right tray?
Only if it's the BluEdge, AT-LFP-24-100-BTC-BV10. The other Amptron 24V 100Ah, AT-LFP-24-100AV02, uses the Type C tray at 370 x 200 x 189mm. Same voltage and capacity, different case, so check the model number on your battery before ordering.
3. Do I need an auto electrician to fit it?
Not for the tray, that's a self-installation job. Wiring the battery is another matter, and at 24V or 36V that's even more reason to leave the electrical side to someone qualified.
4. Can I keep the tray if I change batteries later?
Yes, as long as you're moving between the batteries it's built for. The 24V 100Ah BluEdge, 36V 50Ah Classic and 36V 85Ah Classic all fit this tray, so the mount can stay put while the battery changes.
