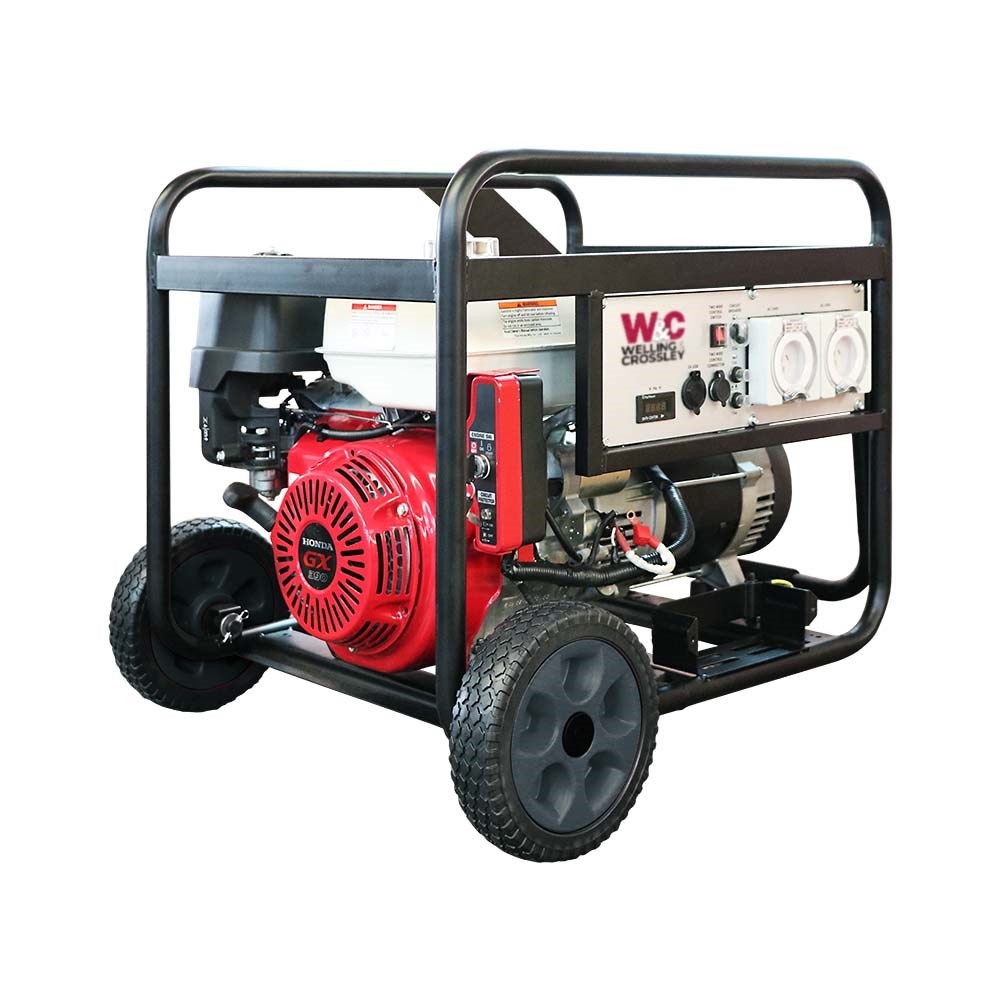

Welling & Crossley WC-P7750H 7.75 kVA Honda Electric Start AVR Petrol Generator
Pick this product up from any of the locations below! Call us on 1300 902 361 for more details.
- Brooklyn, Victoria 3012
- Malaga, Western Australia 6090
- Milperra, New South Wales 2214
- Mount Louisa, Queensland 4814
- Stapylton, Queensland 4207
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Welling & Crossley WC-P7750H 7.75 kVA Honda Generator, Honda Reliability With Clean AVR Power
Free with purchase: a large generator dust cover to keep dust and grit out between uses.
When the job site needs power or the grid drops out at home, the engine is what decides whether you're up and running or pulling a cord in frustration. The Welling & Crossley WC-P7750H puts a genuine Honda GX390 engine, backed by Honda Australia, behind 6,000 W of AVR-regulated power.
The automatic voltage regulator keeps the output steady so tools and electronics aren't hit by fluctuations, and you can start it by key, by recoil, or remotely through the 2-wire start. It comes with a transport kit of handles and wheels, so moving it around the site or the shed isn't a two-person job.
Add one to your cart and get Honda-powered backup sorted.
Why The Welling & Crossley WC-P7750H May Be Right For You:
- Rely on a proven engine with the genuine Honda GX390, a 389cc single cylinder 4-stroke backed by Honda Australia and covered by a 3-year engine warranty.
- Protect the gear you plug in thanks to the AVR, which stabilises the output voltage so fluctuations don't damage tools and electronics.
- Start it whichever way suits with recoil, push-button electric start, or 2-wire start that lets an automatic transfer switch or float switch fire it up for you.

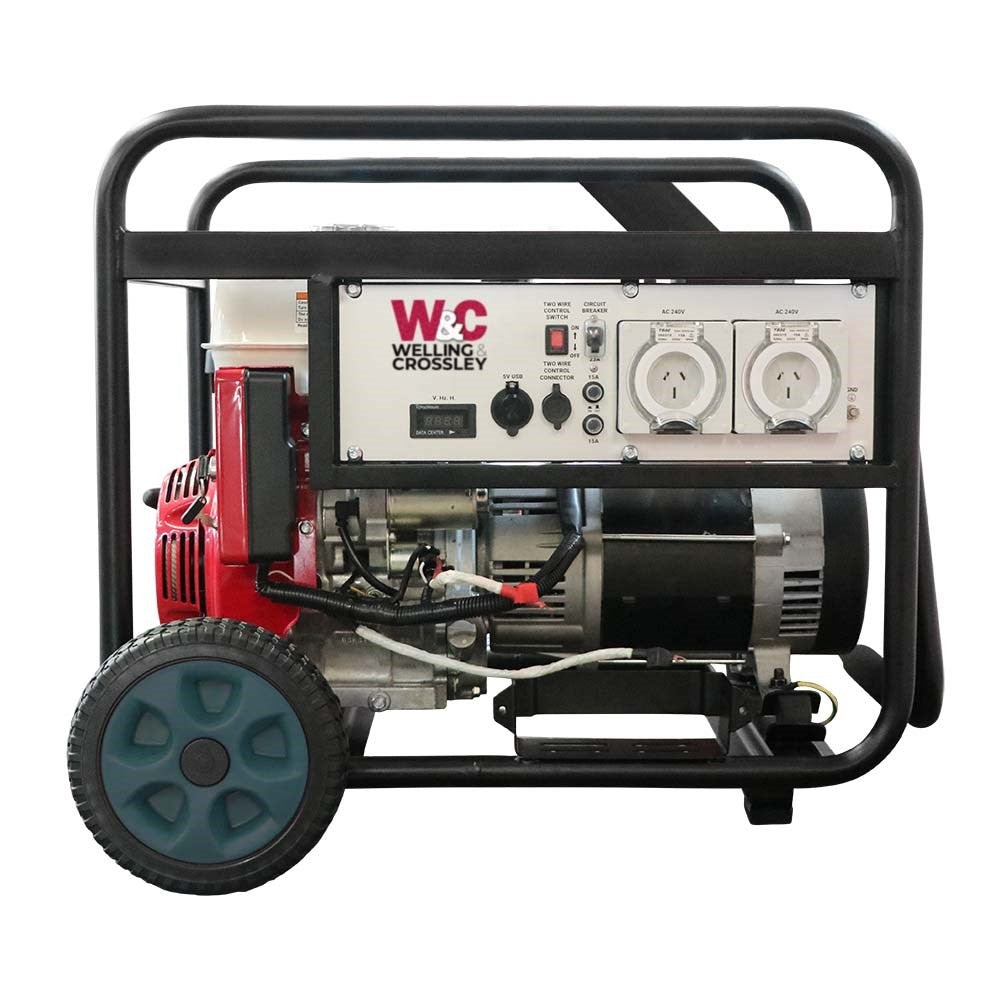

- Keep the plugs dry on site with two IP66-rated 15A outlets, plus USB-A and USB-C ports for charging phones and devices.
- Move it without a struggle on the supplied heavy-duty wheels and handles, made for rough ground as well as the shed floor.
- Check it at a glance on the digital display, which shows volts, frequency and run time.
Welling & Crossley WC-P7750H Package Contents:
- 1 x Welling & Crossley WC-P7750H 7.75 kVA AVR petrol generator with Honda GX390 engine
- 1 x Transport kit (handles and wheels)
Welling & Crossley WC-P7750H Tech Specs
| MODEL: | WC-P7750H |
| PRODUCT CODE: | 811992 |
| MODEL RATING: | 7.75 kVA |
| MAX AC OUTPUT: | 6000 W |
| RATED AC OUTPUT: | 5500 W |
| VOLTAGE / FREQUENCY: | 240 V AC / 50 Hz |
| TYPE: | Open Frame AVR |
| CONNECTIONS: | 2 x IP66 15A, 1 x USB Type A (18W), 1 x USB Type C (15W) |
| ENGINE: | Honda GX390, single cylinder, 4-stroke, OHV, air-cooled petrol |
| DISPLACEMENT: | 389cc |
| IGNITION: | DCDI with variable timing |
| LOW OIL PROTECTION: | Fitted |
| STARTING TYPE: | Recoil / Electronic / 2-Wire |
| FUEL TANK CAPACITY: | 6.1 L |
| FUEL CONSUMPTION: | 1.37 L/hr @ ¼ load |
| OPERATING TIME @ 25% LOAD: | 4.4 hrs |
| FUEL TYPE: | Petrol, 91 octane unleaded |
| OIL: | 1.1 L SAE 10W-30 |
| SPARK PLUG: | NGK BPR6ES |
| POWER FACTOR: | 0.8 |
| PRODUCT DIMENSIONS: | 550 x 700 x 660 mm |
| DRY WEIGHT: | 80 kg |
| PACKAGING DIMENSIONS: | 705 x 555 x 590 mm |
| EMISSIONS: | Euro 5 compliant |
| WARRANTY: | Engine 3 years, alternator and frame 2 years |
Welling & Crossley WC-P7750H FAQs
1. What can it power?
6,000 W maximum with 5,500 W rated at 240V, through two IP66 15A outlets plus USB-A and USB-C. That suits small to medium tools and lights on a worksite, or essential appliances as home backup.
2. How does it compare to the WC-P8750?
The WC-P8750 gives you more output, 7,000 W maximum, and a bigger 25 L tank. The WC-P7750H trades some of that for a genuine Honda GX390 engine with a 3-year engine warranty. Its 6.1 L tank gives about 4.4 hours at 25% load, so keep a jerry can handy for long days.

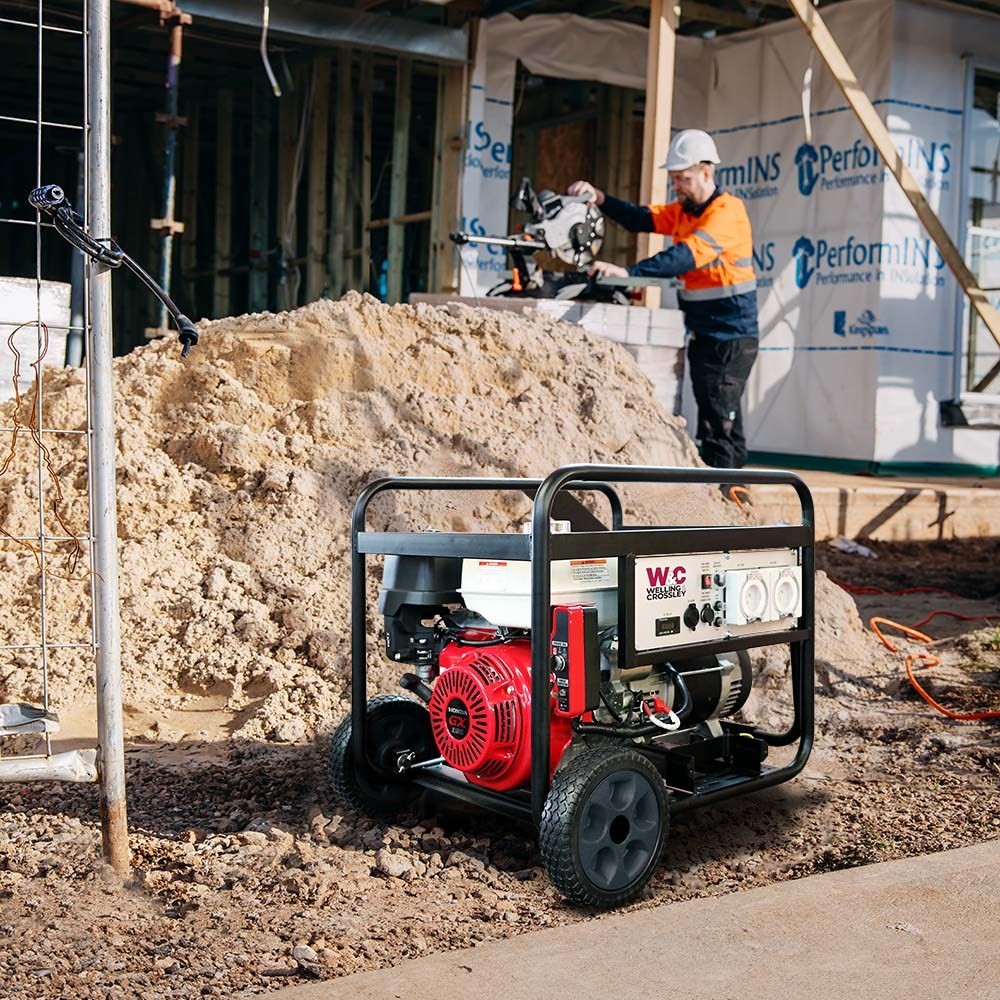

3. Can I use it on a worksite?
Yes, it's built for worksite power, but an RCD may be required on some worksites. Check your site's requirements before you plug in, and ring us on 1300 902 361 if you're unsure.
4. What safety precautions should I follow?
Outdoors only, always. Petrol generators produce carbon monoxide, which you cannot see or smell, so never run one inside a shed, garage or under an awning, even with the doors open. Keep it clear of flammable materials, don't exceed its rated output, and let the engine cool before refuelling.
