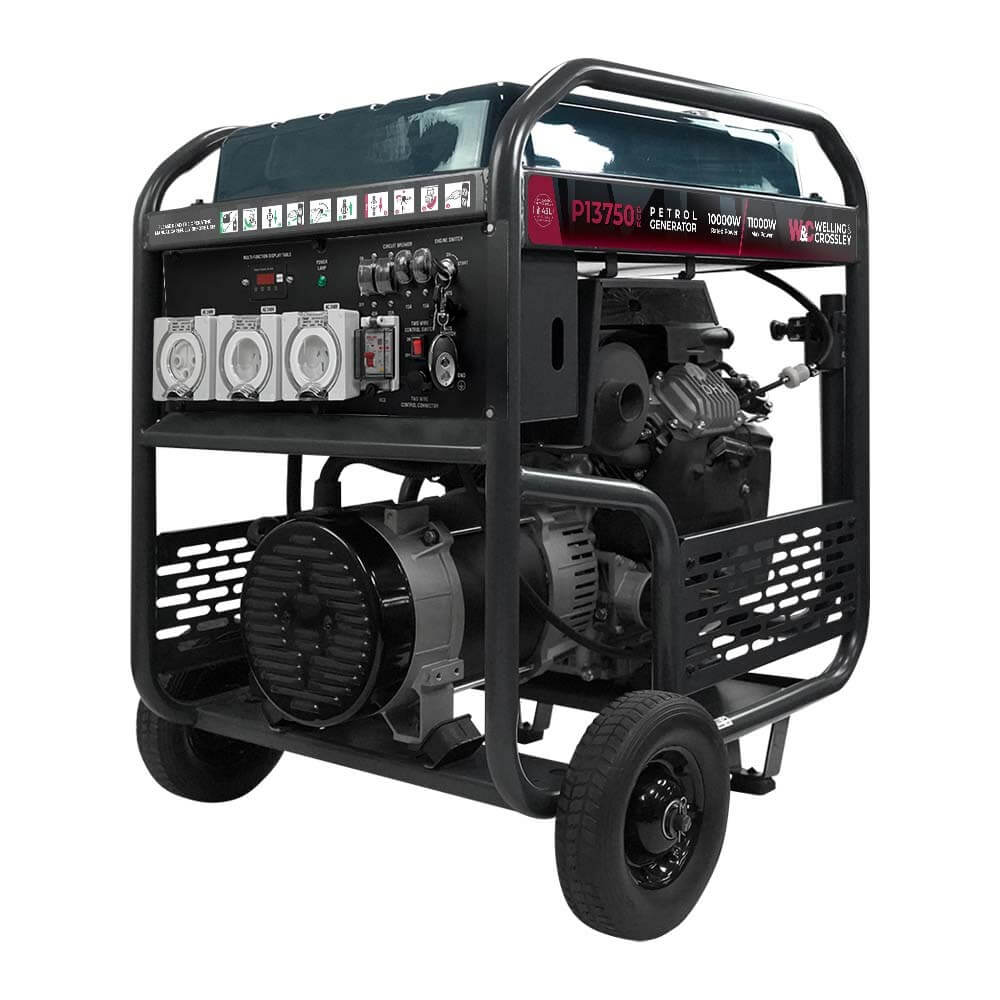

Welling & Crossley 13.75 kVA RCD Electric Start AVR Petrol Generator

Welling & Crossley 13.75kVA RCD Generator – Easy Electric Start!

When the power goes kaput in the middle of a ripper storm or you’re out at the shed trying to keep the tools humming, the Welling & Crossley 13.75 kVA RCD Petrol Generator (WC-P13750RCD) has your back.

No more sitting in the dark watching the fridge defrost or your favourite footy game buffering, this big-gun petrol unit pumps out up to 10 kW of clean, stable juice thanks to its AVR tech, and the built-in RCD helps keep you safe from electrical mishaps. With a lazy-boy electric start and wheels on the frame, it’s easy to get going and shift around, even if your ute’s flat battery has other ideas.

Don’t wait for the next blackout to bite, get yours sorted and stay powered up when it matters most!

Why The 11kW Welling Crossley RCD Generator May Be Right For You:

• Enjoy dependable power when it really counts, with the 13.75 kVA (11 kW) output and AVR, so your appliances, tools and essentials keep running without a hitch.

• Save your arms and your temper, thanks to the easy electric start, meaning you’re up and running at the push of a button instead of pulling cords all day.

• Feel safer using your generator, with the built-in RCD protection, giving you peace of mind and added safety from electrical faults.

• Run more gear at the same time, thanks to the high-capacity open-frame petrol design, so you can get the job done faster without juggling power loads.

• Move it around without breaking a sweat, with the heavy-duty frame and wheel kit, making it easier to position on site, at home or in the shed.

Add one to your cart and have backup power ready before you need it.

Welling Crossley 11kW RCD Petrol Generator Package Contents:

• 1 × Welling & Crossley 13.75 kVA (11 kW) Petrol Generator with Electric Start & RCD

• 1 × Battery (pre-fitted or supplied for electric start)

• 1 × Wheel and handle kit

• 1 × User manual

Welling & Crossley 13.75VA RCD Generator User Manual:

WC-P13750RCD Tech Specs

Brand: Welling & Crossley
Product Type: Portable Generator
Product Code: 811988
Generator Type: Open Frame AVR Generator with RCD
Fuel Type: Petrol (91 Octane Unleaded)
Model Rating: 13.75 kVA
Power Factor: 0.8

Electrical Output

• Max AC Output: 11,000 W

• Rated AC Output: 10,000 W

• Voltage: 240V AC

• Frequency: 50 Hz

Connections

• 2 × IP66 15A outlets

• 1 × IP66 32A outlet

• 1 × USB-A (18W)

• 1 × USB-C (15W)

Engine & Performance

• Engine Model: WC-690

• Engine Type: Twin cylinder, 4-stroke, OHV, air-cooled petrol

• Displacement: 688 cc

• Operating Speed: 3000 rpm

• Ignition System: TCI

• Starting Method: Recoil / Electric / 2-Wire / Wireless Remote

• Low Oil Protection: Fitted

Fuel & Runtime

• Fuel Tank Capacity: 45 L

• Fuel Consumption: 2.2 L/hr @ 25% load

• Operating Time @ 25% Load: Up to 27 hours

Dimensions & Weight

• Product Dimensions: 810 × 640 × 920 mm

• Dry Weight: 160 kg

• Pack Weight: 160 kg

• Packaging Dimensions: 790 × 620 × 790 mm

Noise & Compliance

• Noise Level: < 90 dBA @ 7 m

Maintenance

• Oil Type & Capacity: 1.5 L SAE 10W-30

• Spark Plug: NGK BPR6ES

Warranty

• Limited Warranty: 2 Years

Welling & Crossley 13.75 kVA RCD Generator FAQs

1. What does the built-in RCD add?
A residual current device — a safety switch that cuts power the instant it detects a fault, the same principle as the RCD in your home switchboard. On a worksite where tools are being plugged in and out, and leads get dragged across the ground, that protection matters. It's the main difference between this model and the non-RCD version at a lower price.

2. What can it power?
11,000 W maximum with 10,000 W rated at 240V, through two IP66 15A outlets and an IP66 32A outlet, plus USB-A and USB-C. That's enough for a busy worksite or a whole property.

3. What does AVR do?
Automatic Voltage Regulation keeps the output voltage steady as load changes, which protects motors and electronics from the dips and spikes an unregulated generator produces.

4. What safety precautions should I follow?
Outdoors only, always. Petrol and diesel generators produce carbon monoxide, which you cannot see or smell — never run one inside a shed, garage or under an awning, even with the doors open. Keep it clear of flammable materials, don't exceed its rated output, and let the engine cool before refuelling.
