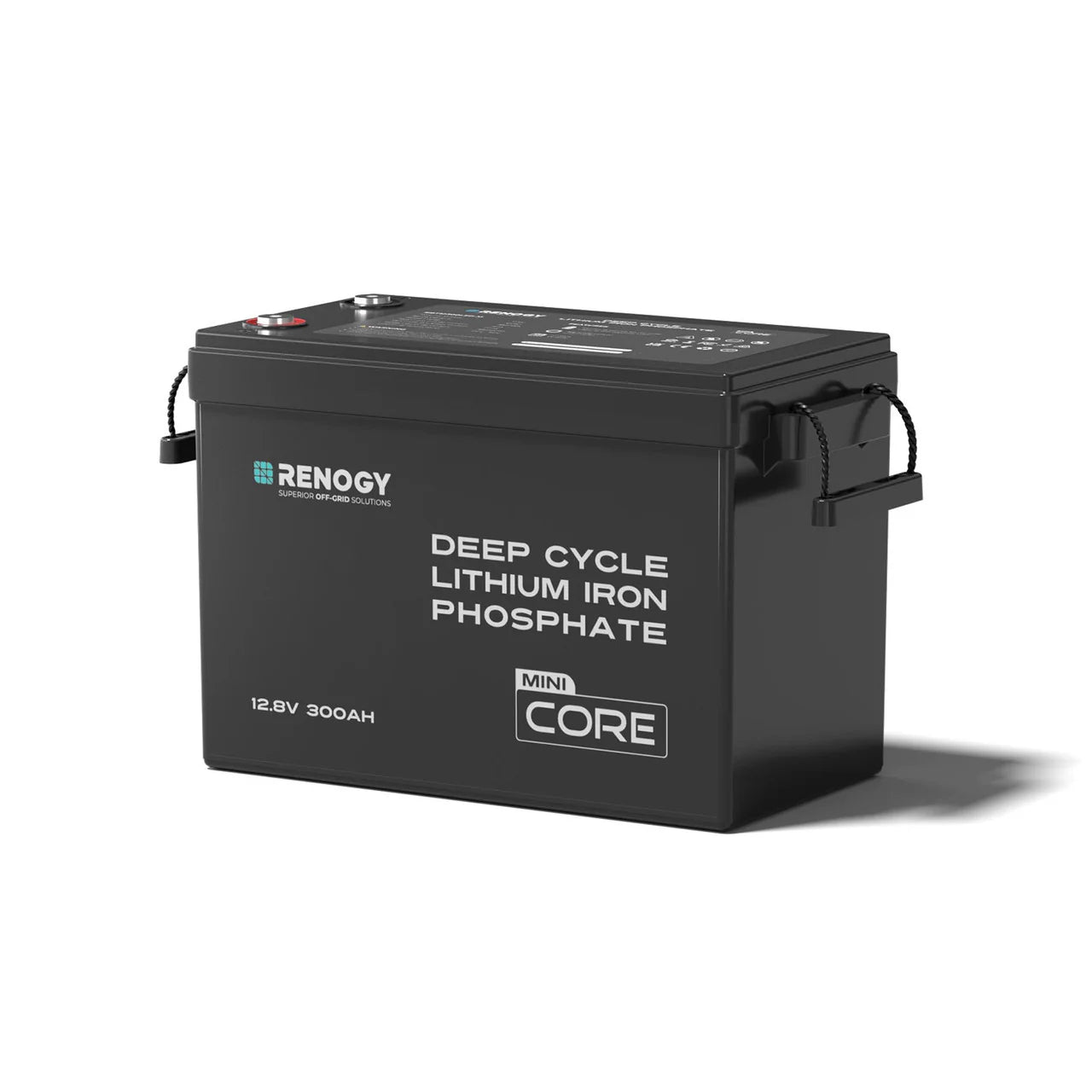

Renogy Core Mini 12V 300Ah Lithium Battery

Core Mini 300Ah Lithium Power – Tough, Reliable, Ready for the Bush!

Sick of your old battery tapping out quicker than you do on a summer arvo? The Renogy Core Mini 300Ah LiFePO4 battery is here to put an end to warm beers, flickering lights, and that “uh-oh” moment when your fridge gives up halfway through a trip.

It’s lighter, tougher, and way more dependable than the bulky brick you’ve been dragging around, plus it laughs in the face of cold weather.

If you’re ready for a power setup that actually keeps up with you, grab one today and make your next trip a drama-free one.

Why The Renogy Core Mini 300ah May Be Right For You:

• Enjoy long-lasting, reliable power with the 300Ah LiFePO4 capacity, so your fridge, lights, and gadgets stay running for days without worry.

• Stay confident in cold weather thanks to the built-in low-temperature protection, meaning your battery won’t spit the dummy when temps drop.

• Save your back and make setup easier with the lightweight Core Mini design, letting you move and install it without the usual wrestle.

• Keep your system safer and more stable with the advanced BMS protection, helping you avoid overcharging headaches and extend your battery’s lifespan.

• Spend less time charging and more time relaxing thanks to high-efficiency LiFePO4 tech, giving you quicker top-ups and hassle-free power on every trip.

Core Mini 300ah Package Contents:

• 1 × Core Mini 12.8V 300Ah Lithium Iron Phosphate Battery

• 2 × M8 × 1.25 × 12 mm terminal bolts

• 2 × M8 × 1.25 × 16 mm terminal bolts

• 1 × User Manual / Quick Start Guide

Core Mini 12V 300ah User Manual:

Core Mini 12V 300ah Tech Specs

Electrical Specifications

• Capacity: 300Ah

• Voltage Range: 10V–14.8V

• Nominal Output Voltage: 12.8V

• Total Energy: 3840Wh

• Cycle Life: Up to 5000 cycles at 80% depth of discharge

• Charging Voltage Range: 10V–14.8V

• Max Continuous Charge Current: 150A

• Max Continuous Discharge Current: 200A

• Peak Discharge Current: 380A for 10 seconds

• Operating Temps:

  • Charge: 0°C to 60°C (32°F to 140°F)

  • Discharge: -20°C to 65°C (-4°F to 149°F)

• Storage Temp: -20°C to 60°C (-4°F to 140°F)

• Humidity Range: 5% to 95%

Mechanical & Safety Specifications

• Dimensions: 384 × 194 × 253 mm (15.12 × 7.64 × 9.96 in)

• Weight: 25 kg (55.1 lbs)

• Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm

• Protection Rating: IP65 (dustproof & splash-resistant)

• Certifications: UN38.3, MSDS, RCM, CE, FCC, RoHS, PSE, UKCA

• Warranty: 5-year prorated warranty
