Renogy Core Mini 12V 200Ah Lithium Battery

Core Mini 12V 200Ah, Reliable Lithium Power for Life Off the Grid!

Tired of your old caravan or van battery croaking just when you need a cuppa after a long day on the road? The Renogy Core Mini 12.8 V 200 Ah LiFePO4 battery is your mate for the long haul, it packs a whopping 2560 Wh into a 21% smaller frame than traditional batteries, freeing up space in tight battery boxes without sacrificing grunt.

It’s got a serious 200 A BMS and a smart low-temperature cut-off built in, so you don’t have to babysit it when temperatures drop, no more worrying about frost freezing your power or frying the cells.

In short: whether you’re off-grid in the bush, towing the van to the coast or just sick of sketchy power for your fridge, lights or microwave, this little beast keeps the juice flowing. Time to chuck your old battery and grab a Core Mini, your next adventure’s calling!

Add one to your cart and give your setup the capacity it needs.

Why The Renogy Core Mini 200ah May Be Right For You:

• You get more usable power on the road thanks to the Core Mini’s 200Ah LiFePO4 chemistry, so your fridge, lights and gadgets keep humming without chucking a tantrum.

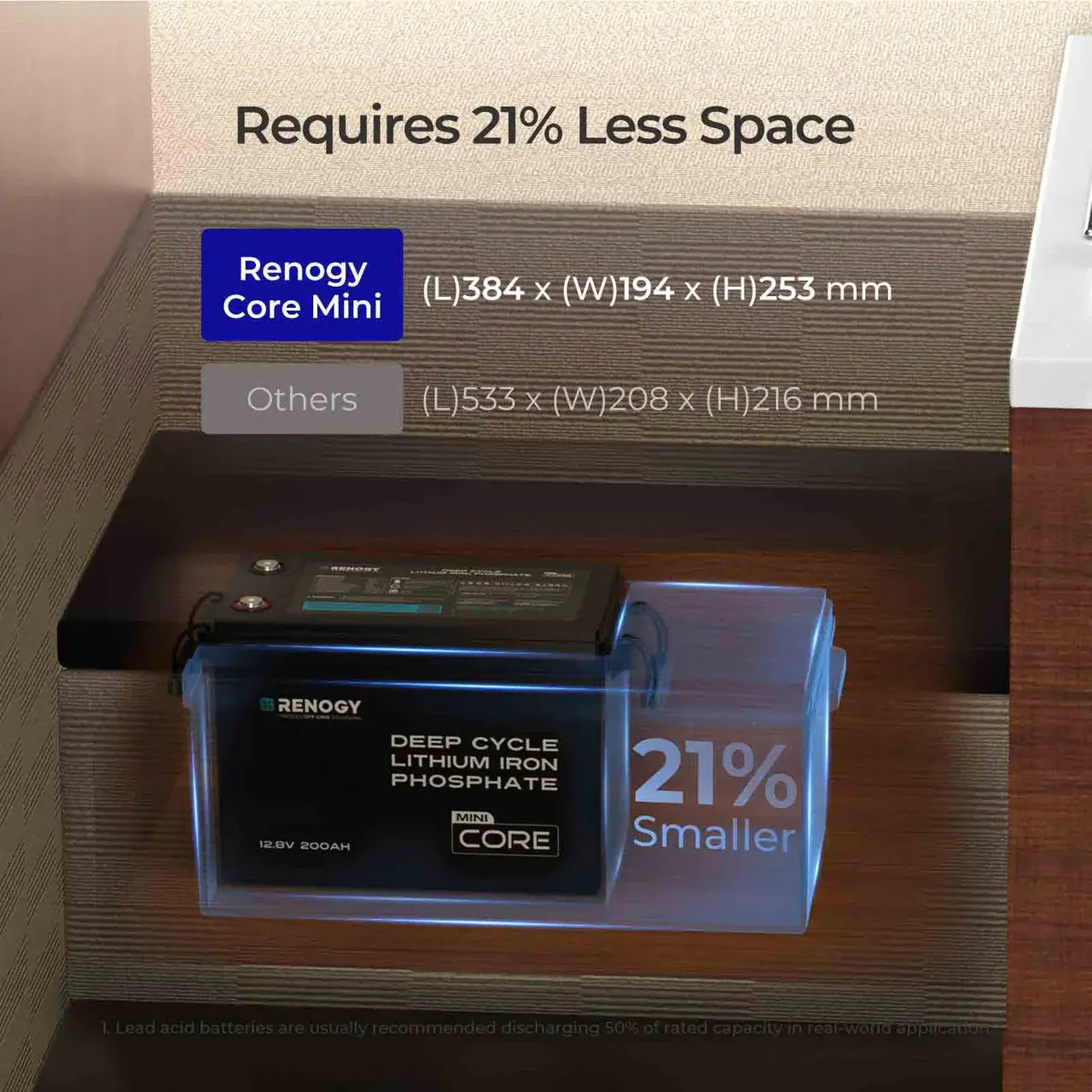

• You free up precious space in your van because the Core Mini’s compact design is 21% smaller than standard batteries, making your setup tidier and a whole lot less of a squeeze.

• You avoid battery dramas in cold weather with its low-temperature protection system, meaning your power won’t cark it when the mercury drops.

• You enjoy safer, steadier performance courtesy of the built-in 200A smart BMS, so you can run your gear with confidence instead of worrying it’ll blow a fuse, literally.

• You stay off-grid longer thanks to its impressive 4000+ cycle lifespan, giving you years of reliable juice and fewer headaches swapping out batteries in the middle of nowhere.

Core Mini 200ah Package Contents:

• The battery itself, the 12.8 V 200 Ah Core Mini LiFePO4 unit

• A user manual

• Two insulating sleeves for the M8 terminal bolts

• Long terminal bolts (for battery connection)

Renogy Core Mini 12V 200Ah Lithium Battery User Manual:

Core Mini 12V 200ah Tech Specs

Specifications
Rated Capacity (0.5C, 25°C): 200Ah
Nominal Voltage: 12.8V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25°C): 5000 cycles (80% DOD, 80% EOL)

Discharging Parameters
Maximum Continuous Discharge Current: 200A
Peak Discharge Current: 380A for 10 seconds

Charging Parameters
Voltage Range: 10V to 14.6V
Maximum Continuous Charge Current: 100A

Temperature Parameters
Operation Temperature, Charge: 32°F to 131°F (0°C to 55°C)
Operation Temperature, Discharge: -4°F to 149°F (-20°C to 65°C)
Storage Temperature Range: -4°F to 140°F (-20°C to 60°C)
Operation Relative Humidity: 5% to 95%

Mechanical Specifications
Dimensions (L × W × H): 15.12 × 7.64 × 9.96 in / 384 × 194 × 253 mm
Weight: 42.44 lbs / 19.25 kg
Terminal Bolt Size: M8 × 1.25 × 12 mm & M8 × 1.25 × 16 mm
Protection Rating: IP65

Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA

Warranty
5-year prorated material and workmanship warranty

Renogy Core Mini 12V 200Ah Lithium Battery FAQs

1. How does it compare to the standard Core 200Ah?
Same 200Ah and 2,560Wh in a more compact case. The difference is charge current, 100A maximum continuous on the Mini against 200A on the standard Core, so the Mini takes longer to refill.

2. What can I draw from it?
200A maximum continuous discharge with a 380A peak for 10 seconds, which covers inverter start-up surges.

3. What temperatures can it handle?
Charging from 0°C to 55°C and discharging from -20°C to 65°C.

4. How long will it last?
5,000 cycles at 80% depth of discharge to 80% end of life. Charging voltage range is 10V to 14.6V.
