iTechWorld 40A MPPT Solar Charge Controller

$215.00

🚚 FREE SHIPPING OVER $299.99: Spend $300 or more and enjoy free shipping* Conditions Apply.

💰 SAVE CASH: Call us on 1300 902 361 for an exclusive discount.

🔄 CHANGED YOUR MIND? We offer 30-day returns post purchase.

🛠️ NEED HELP WITH INSTALLATION? Call us for more info.

🤝 WE'RE HERE TO HELP: Call us from Mon-Sat between 8am-9pm AEST.

Notify me when back in stock

Take Charge Of Your Solar Power With The iTech 40A MPPT Solar Charge Controller

If you're relying on solar while you're out bush or touring the country, the iTechWorld 40A MPPT Solar Charge Controller is an absolute must-have. This little beauty ensures your solar panels are working at their full potential, even when the sun's playing hard to get.

Unlike cheaper PWM units, this MPPT controller squeezes every drop of juice from your solar panels, which means quicker charging and more power for your fridge, lights, and gadgets. Plus, it handles lithium batteries like a pro, so you're future-proofed. It's the set-and-forget solution for reliable off-grid energy. No dramas, no fried batteries, just dependable solar control. Chuck it in your setup and rest easy knowing your gear’s in good hands.

With smart 12/24V auto-sensing and up to 40A of regulated charge, it keeps your battery safe, topped up and healthy. The iTechworld 40 Amp MPPT Solar Charge Controller has a high-quality LCD display which is used to dynamically display the operation data and working status of the solar charge controller.

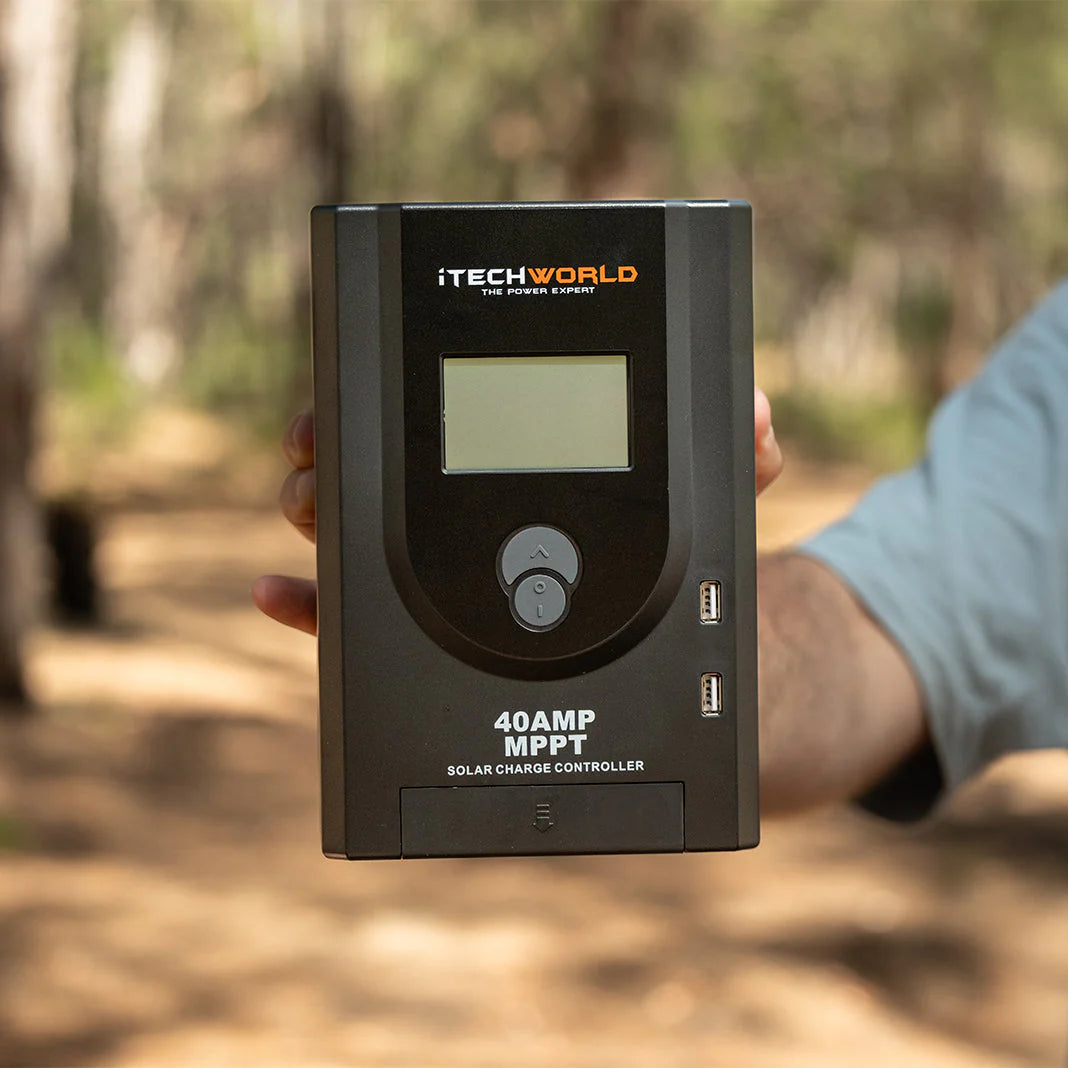

A photo of a man holding up a black iTechWorld 40A MPPT solar charge controller.

iTech 40A MPPT Solar User Manual:

iTechWorld 40A MPPT Solar Charge Controller User ManualiTechWorld 40A MPPT Solar Charge Controller User Manual

iTech 40A MPPT Solar Tech Specs:

🔧 GENERAL

System Rated Voltage:
12/24V DC (automatic sensing)
Max Open Circuit Voltage (Solar Panel):
100V DC (at lowest temperature), 92V DC (at 25°C)
Max Solar Input Power:
520W (12V system), 1040W (24V system)
Battery Voltage Range:
8V – 32V DC
Rated Charge Current:
40A
Battery Types:
Sealed lead-acid, flooded lead-acid, gel, LiFePO₄, LiNiMnCoO₂
Static Loss:
≤50mA
Temperature Compensation Coefficient:
-4mV/°2V (25°C)
LCD Temperature Range:
-20°C ~ 70°C
Operating Temperature:
-20°C ~ 55°C
Storage Temperature:
-30°C ~ 80°C
Working Humidity:
≤90% (non-condensing)
Grounding:
Common Positive
Dimensions (L×W×H):
215 × 145 × 75mm
Wire Terminal Size:
16mm² / 6AWG
Weight:
1.3kg
Description

Take Charge Of Your Solar Power With The iTech 40A MPPT Solar Charge Controller

If you're relying on solar while you're out bush or touring the country, the iTechWorld 40A MPPT Solar Charge Controller is an absolute must-have. This little beauty ensures your solar panels are working at their full potential, even when the sun's playing hard to get.

Unlike cheaper PWM units, this MPPT controller squeezes every drop of juice from your solar panels, which means quicker charging and more power for your fridge, lights, and gadgets. Plus, it handles lithium batteries like a pro, so you're future-proofed. It's the set-and-forget solution for reliable off-grid energy. No dramas, no fried batteries, just dependable solar control. Chuck it in your setup and rest easy knowing your gear’s in good hands.

With smart 12/24V auto-sensing and up to 40A of regulated charge, it keeps your battery safe, topped up and healthy. The iTechworld 40 Amp MPPT Solar Charge Controller has a high-quality LCD display which is used to dynamically display the operation data and working status of the solar charge controller.

A photo of a man holding up a black iTechWorld 40A MPPT solar charge controller.

iTech 40A MPPT Solar User Manual:

iTechWorld 40A MPPT Solar Charge Controller User ManualiTechWorld 40A MPPT Solar Charge Controller User Manual

iTech 40A MPPT Solar Tech Specs:

🔧 GENERAL
System Rated Voltage: 12/24V DC (automatic sensing) Max Open Circuit Voltage (Solar Panel): 100V DC (at lowest temperature), 92V DC (at 25°C) Max Solar Input Power: 520W (12V system), 1040W (24V system) Battery Voltage Range: 8V – 32V DC Rated Charge Current: 40A Battery Types: Sealed lead-acid, flooded lead-acid, gel, LiFePO₄, LiNiMnCoO₂ Static Loss: ≤50mA Temperature Compensation Coefficient: -4mV/°2V (25°C) LCD Temperature Range: -20°C ~ 70°C Operating Temperature: -20°C ~ 55°C Storage Temperature: -30°C ~ 80°C Working Humidity: ≤90% (non-condensing) Grounding: Common Positive Dimensions (L×W×H): 215 × 145 × 75mm Wire Terminal Size: 16mm² / 6AWG Weight: 1.3kg
