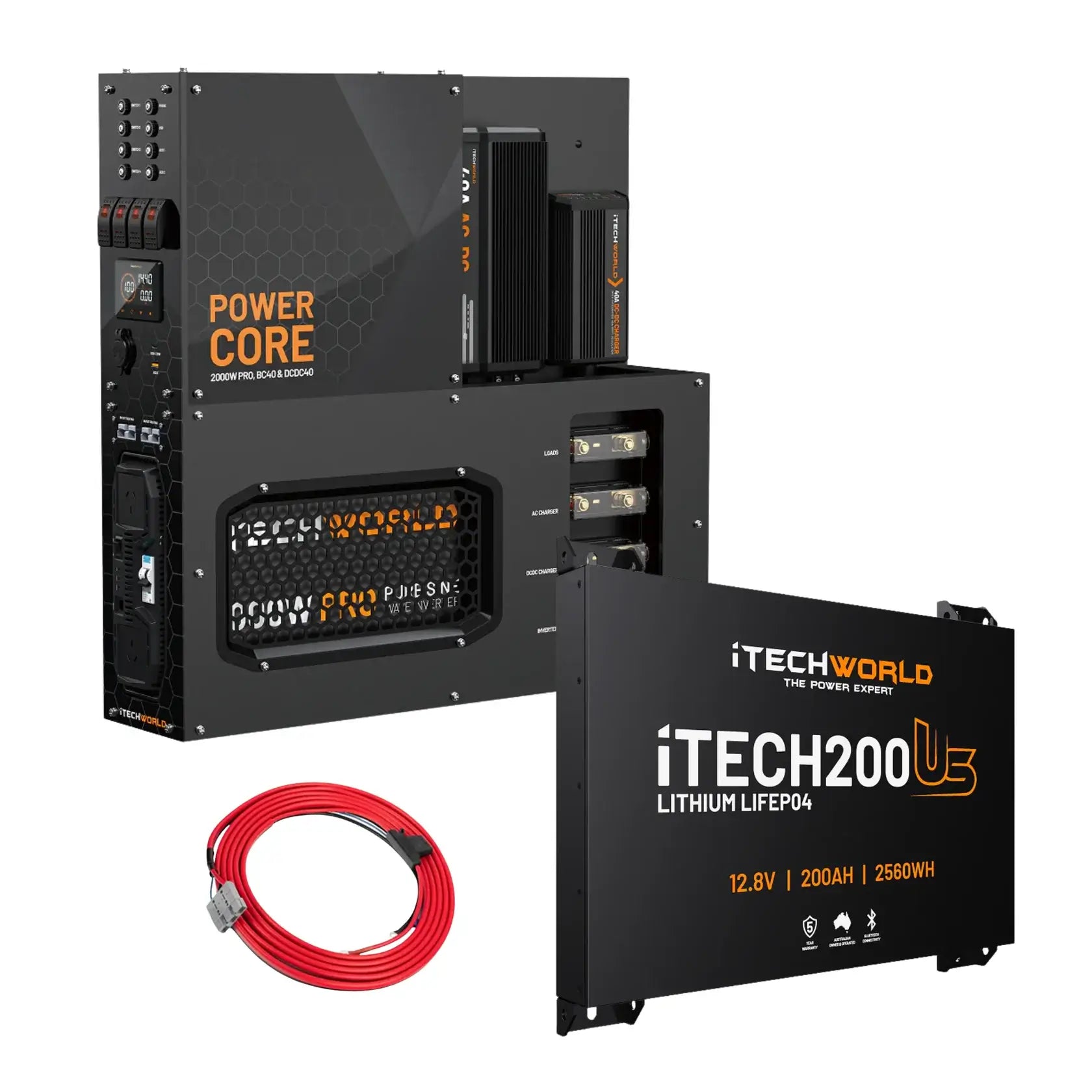

iTechWorld 200Ah Ultra Slim Power Core Canopy Power System

200Ah Ultra Slim Battery Power System – Big Power Without the Bulk!

Let’s face it, lugging around heavy batteries that barely last a crawl down the road is about as fun as stepping on a Lego in bare feet.

The iTechWorld 200Ah Ultra Slim Power Core gives you reliable, long-lasting power without the bulk. Perfect for caravans, canopy setups, or just keeping your fridge cold while you crank a few coldies. And because it’s all-in-one and neatly packaged, you won’t be tripping over wires like a blind roo in the bush.

Want dependable power without the headache? Click to order and power up your adventures!

Why The iTechWorld 200Ah Ultra Slim Power System May Be Right For You:

• Enjoy stress-free off-grid power with the 200Ah Ultra Slim all-in-one Power Core system, so you can keep the fridge running and the good times rolling wherever you pull up.

• Save precious space in your canopy setup thanks to the ultra-slim design, so you’ve got more room for the important stuff — like fishing gear and cold drinks.

• Skip the headache of complicated wiring with the plug-and-play complete power system, so you can get set up quicker and spend more time relaxing in the bush.

• Stay powered for longer trips without worrying about recharging with the massive 200Ah lithium battery capacity, so you can travel further and camp longer with total peace of mind.

• Rely on tough, dependable performance from the rugged iTechWorld build made for Aussie conditions, so your power keeps going even when the track gets rough.

iTech 200Ah Ultra Slim Power Core Package Contents:

• Power Core
• User Guide
• 35 x M4 Combination screws
• 4 x M3 Tapping screws
• 12 x Spare ANL fuses
• 10 x Terminal spades
• 20 x Terminal rings
• iTECHBC40 AC input cable

iTech 200Ah Ultra Slim Power Core User Manual:

iTechWorld Power Core With 200Ah Battery Tech Specs

⚡ General

Dimensions (L × W × H): 668 × 151 × 641mm
Weight: 21.8kg
Backlit Rocker Switches: 4 × 20A
USB Output: 18W
USB-C Output: 30W
Cigarette Lighter Output: 12V 15A
IN / OUT Anderson Plugs: 2 × 50A
Battery Compatibility: Lead Acid, GEL, AGM, Calcium & Lithium LiFePO4

🔋 iTECHDCDC40 DC-DC Charger

Alternator Input Voltage: 9V – 32V
Solar Input Voltage: 10V – 32V
Max Input Current: 45A
Standby Current: <15mA
Continuous Output Current: 40A
Selectable Battery Types: STD / GEL / AGM / Calcium / LiFePO4

Absorption (STD): 14.4V
Absorption (GEL): 14.1V
Absorption (AGM): 14.7V
Absorption (Calcium): 15.5V
Absorption (LiFePO4): 14.4V

Float (STD): 13.4V
Float (GEL): 13.5V
Float (AGM): 13.4V
Float (Calcium): 13.6V
Float (LiFePO4): 13.4V

🔌 iTECHBC40 AC Charger

Input Voltage: 220V – 240V
Input Frequency: 50Hz – 60Hz
Max Input Current: 4.8A
Max Input Power: 700W
Standby Current: <2mA
Continuous Output Current: 40A
Selectable Battery Types: STD / GEL / AGM / Calcium / LiFePO4

Absorption (STD): 14.4V
Absorption (GEL): 14.1V
Absorption (AGM): 14.7V
Absorption (Calcium): 15.5V
Absorption (LiFePO4): 14.4V

Float (STD): 13.4V
Float (GEL): 13.5V
Float (AGM): 13.4V
Float (Calcium): 13.6V

⚡ iTECH2000WPRO Inverter

Output Waveform: Pure Sine Wave
Input Voltage Range: 10.5V – 15.5V
Max Input Current: 156.3A
Standby Current: <1.3A
Harmonic Distortion: <3%
Efficiency: 90%

Continuous Output Power: 2000W
Peak Output Power: 4000W
Output Voltage: 240V
Output Frequency: 50Hz
Output Plug Rating: 10A

ATS Continuous Output Power: 3600W
ATS Voltage Requirement: 220V – 240V
ATS Transfer Time: 30ms

Remote Port: RJ12
Remote Dimensions: 86 × 86 × 19mm
RCD Tripping Current: 20A

📊 iTECHBM500 Battery Monitor

Input Voltage: 10V – 100V
Max Input Current: 500A
Voltage Accuracy: ±1%
Current Accuracy: ±1%
Capacity Accuracy: ±1%

Power Consumption (Screen Off): <2mA
Power Consumption (20% Brightness): <20mA
Power Consumption (100% Brightness): <60mA
