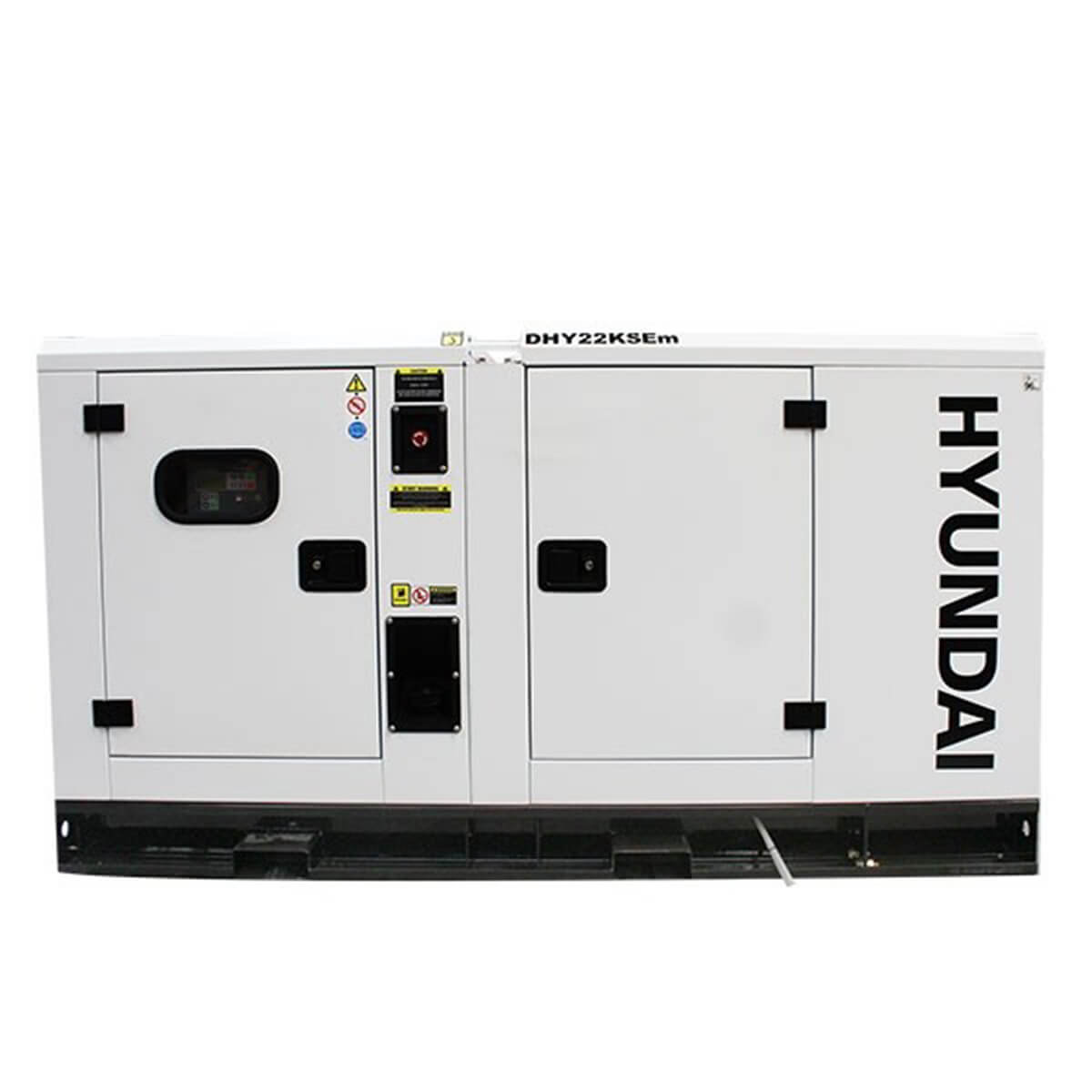

Hyundai DHY22KSEM 27.5kVA Single Phase Diesel Generator

Hyundai DHY22KSEM – Diesel Generator That Gets the Job Done!

If you live out bush or run a worksite where power isn’t always reliable, you’ll know the struggle, one outage and suddenly everything stops. The Hyundai DHY22KSEM 27.5kVA Single Phase Generator is built to solve that problem fast.

It delivers dependable diesel power to keep your home, farm, or business ticking along without missing a beat. No fuss, no drama, just proper backup power.

Get yours now and stay in control when the power drops out!

Why The Hyundai DHY22KSEM May Be Right For You:

• Enjoy reliable backup power when the grid packs it in, thanks to the 27.5kVA single-phase output, so your home or worksite keeps running without missing a beat.

• Keep the noise down while still getting serious performance, with the fully enclosed silent canopy design, so you won’t feel like you’ve got a jet engine parked in the backyard.

• Save time and hassle during long outages, with the efficient diesel engine built for extended run times, so you can stay powered up without constant refuelling dramas.

• Feel confident in tough Aussie conditions, thanks to the weather-protective, heavy-duty construction, so your generator stays dependable rain, wind or shine.

• Protect your valuable appliances and equipment, with stable and consistent power delivery, so everything from fridges to tools runs safely and smoothly.

Hyundai DHY122KSEM Single Phase Generator Package Contents:

• Hyundai DHY22KSEM 27.5kVA Single Phase Diesel Generator

• User Manual / Operating Instructions

• Built-in Control Panel

DHY22KSEM User Manual:

Hyundai 27.5kVA Single Phase Diesel Generator Tech Specs

Power Output

• Maximum Power (Standby): 27.5kVA / 22kW (Single Phase)

• Rated Power (Prime): 25kVA / 20kW

• Voltage: 230V

• Frequency: 50Hz

• Power Factor: 1.0

Engine

• Engine Model: Hyundai HY4102 Diesel

• Engine Speed: 1500 RPM

• Cylinders: 4

• Displacement: Approx. 3.8L (3800cc)

Fuel & Performance

• Fuel Type: Diesel

• Fuel Tank Capacity: Approx. 93L

• Run Time @ 100% Load: Approx. 10 hours

• Fuel Consumption @ Full Load: Approx. 9.3L/hr

Alternator & Control

• Alternator Type: Brushless with AVR

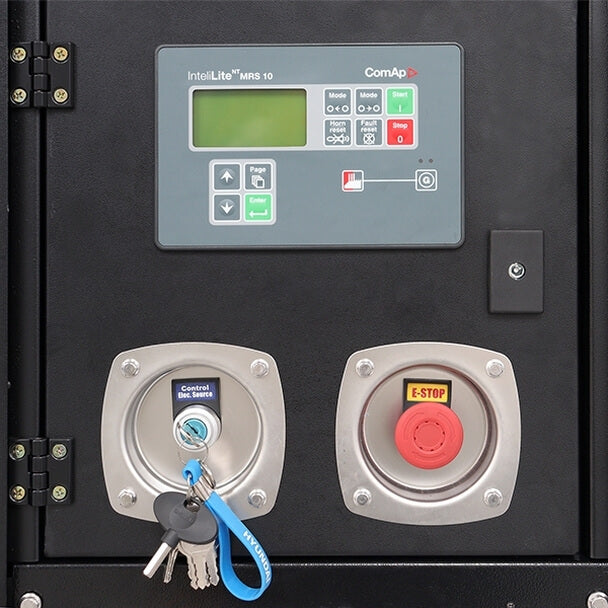

• Control Panel: Digital monitoring display

• ATS Compatible: Yes

Noise & Build

• Noise Level (75% Load): Approx. 67dB @ 7m

• Canopy: Silenced, weather-proof enclosure

Connections

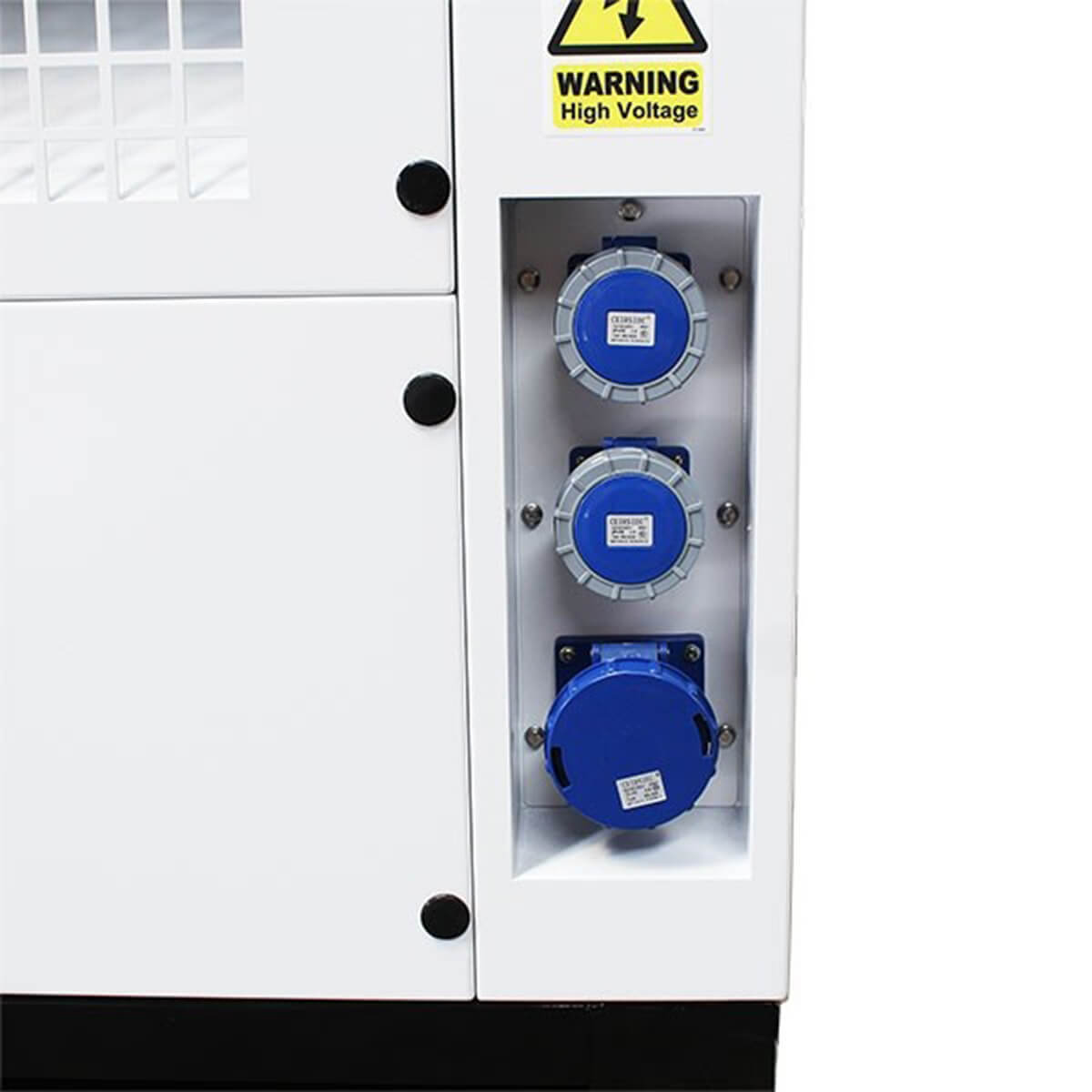

• Outlets: Multiple 230V outlets (32A & 63A options via busbar)

Physical

• Dimensions (Approx.): 2200 × 950 × 1250 mm

• Weight: Approx. 990 kg

Other

• Recommended Oil Type: SAE 15W-40

• Battery Start System: 12V
