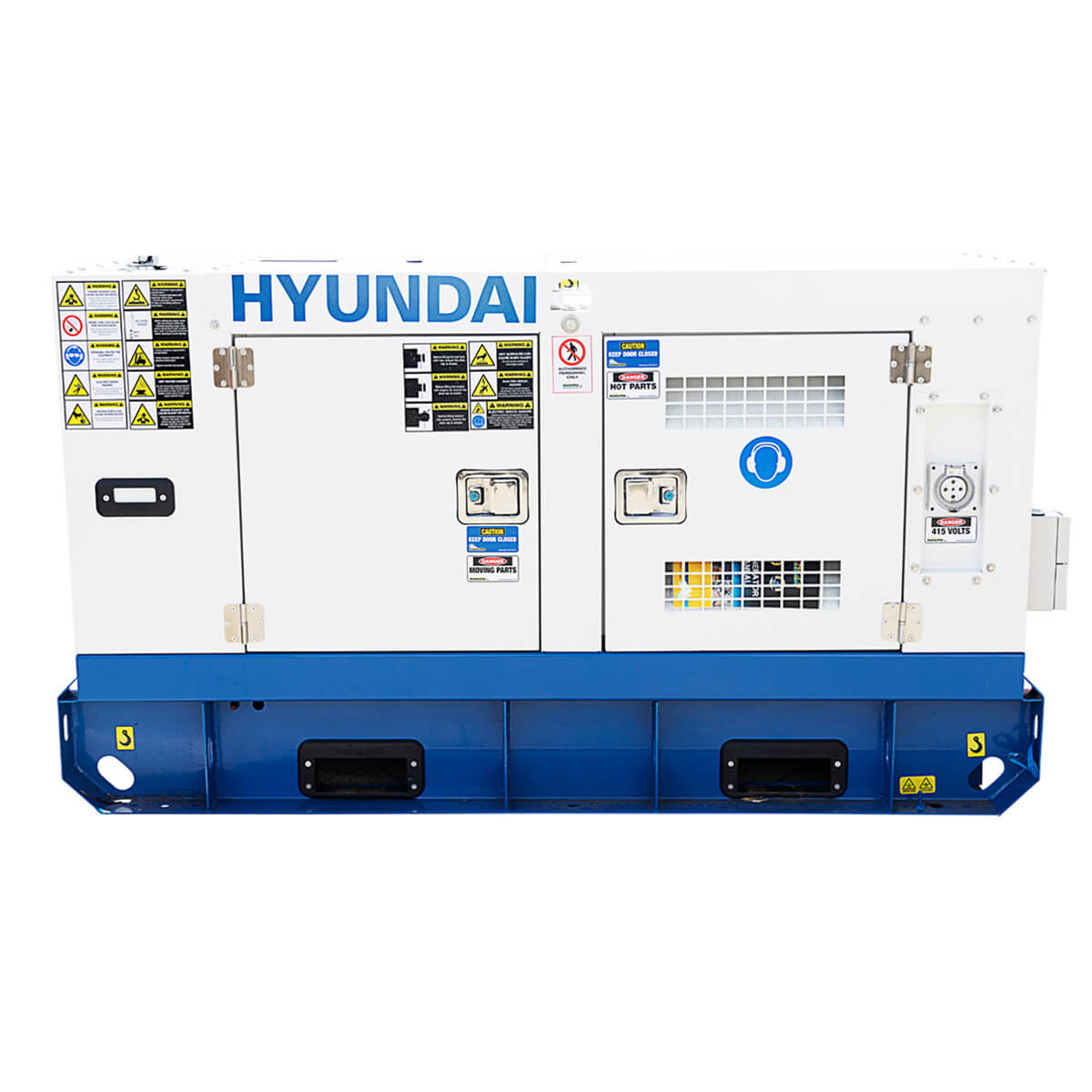

Hyundai DHY14KSE-3 14kVA 3 Phase Diesel Generator

Hyundai DHY14KSE-3 Diesel Generator, Solid 3 Phase Backup Power!

Nothing tests your patience like a blackout. unless it’s a blackout that shuts down your tools and spoils the freezer full of snags.

The Hyundai DHY14KSE-3 14kVA 3 Phase Diesel Generator is your backup plan when the grid goes walkabout, pumping out steady three-phase power so life can carry on as usual. Built tough and made to work, it’s perfect for anyone who’d rather stay powered up than sit around whinging.

Save yourself the headache and lock one in today!

Keep 3-phase gear running through an outage, add one to your cart today.

Why The Hyundai DHY14KSE-3 May Be Right For You:

• You get dependable backup power when the grid drops out, thanks to the 14kVA three-phase diesel output of the Hyundai DHY14KSE-3, so your home, shed or business keeps running without a hitch.

• You can safely power heavy equipment and sensitive electronics, because it delivers stable three-phase power, meaning less risk of damage and smoother operation all round.

• You avoid the racket of a loud generator, thanks to the sound-attenuated enclosure, so you won’t be rattling the neighbours or your own nerves.

• You’re up and running in no time during a blackout, with an easy electric start and simple control panel, so there’s no stuffing around when power matters most.

• You get a generator that’s built to go the distance, thanks to its robust diesel engine designed for tough Aussie conditions, so it’s ready to work whenever you are.

Hyundai DHY14KSE-3 Package Contents:

• Hyundai DHY14KSE-3 14kVA 3 Phase Diesel Generator

• User manual

• Keys

Hyundai DHY14KSE-3 Specs Sheet:

Hyundai DHY14KSE 14kVA 3 Phase Diesel Generator Tech Specs

Power

• Prime Power: 13 kVA / 10.4 kW

• Standby Power: 14 kVA / 11.2 kW

• Phase / Voltage: Three phase / 415 V

• Frequency: 50 Hz

• Speed: 1500 RPM

Engine

• Model: H4DW81-23D

• Cylinders: 4

• Displacement: 2.27 L

• Fuel Type: Diesel

• Fuel Consumption:

  • 4.98 L/hr @ 100% load

  • 3.8 L/hr @ 75% load

  • 2.7 L/hr @ 50% load

• Governor: Electronic

• Oil Capacity: 7.8 L

• Coolant Capacity: 15.5 L

Fuel & Run Time

• Fuel Tank Capacity: 80 L

• Approx. Run Time: ~21 hrs @ 75% load

Noise & Build

• Silenced Canopy: ~67 dB(A) @ 7 m

• Heavy-duty skid base with fork pockets

• Bunded fuel tank and galvanised powder-coat canopy

Alternator & Controls

• Alternator: Hyundai HK164C, brushless with AVR

• Harmonic Distortion: < 5%

• Insulation Class: Class H

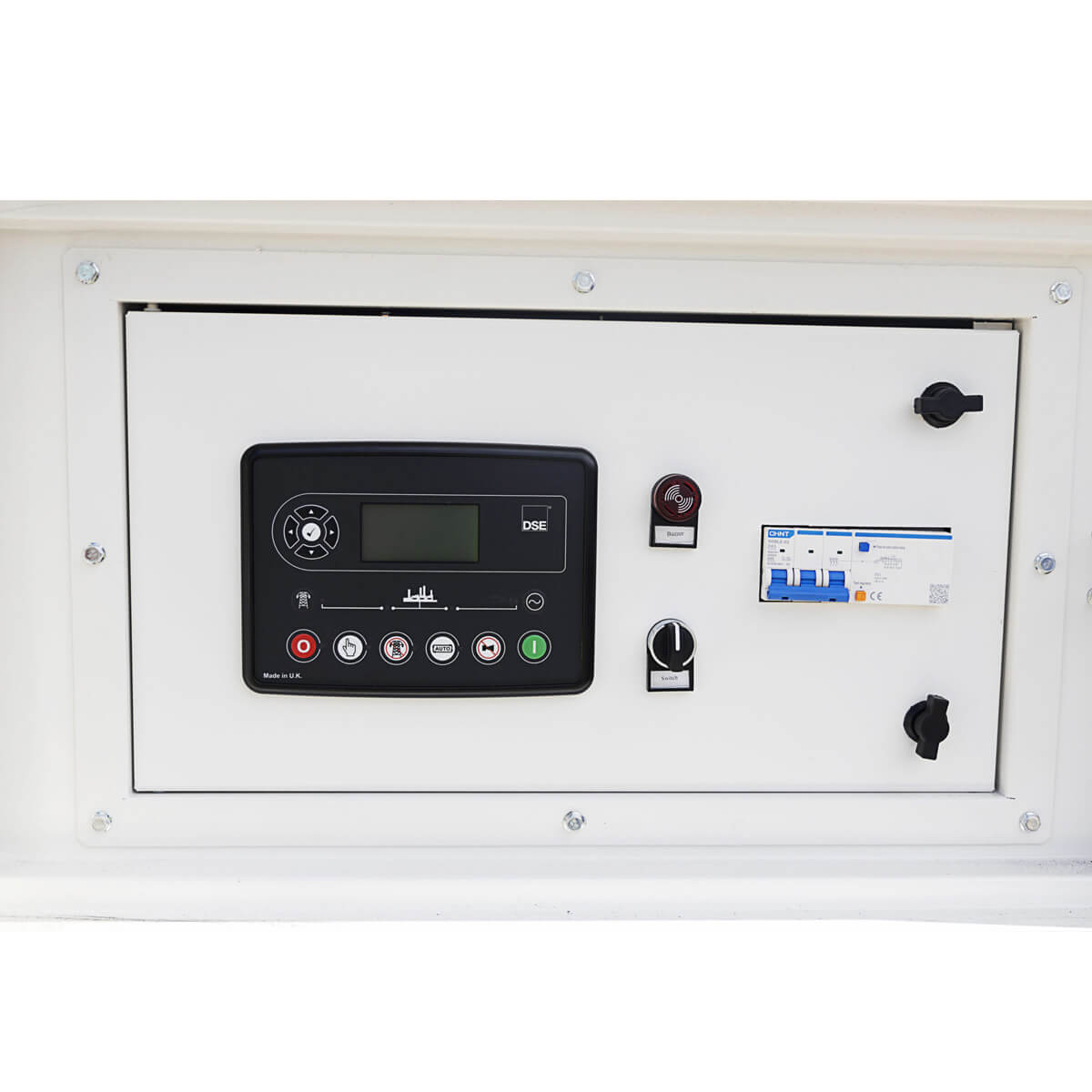

• Control Panel: DeepSea 6120

• Circuit Breaker: Four-pole

• Outlets:

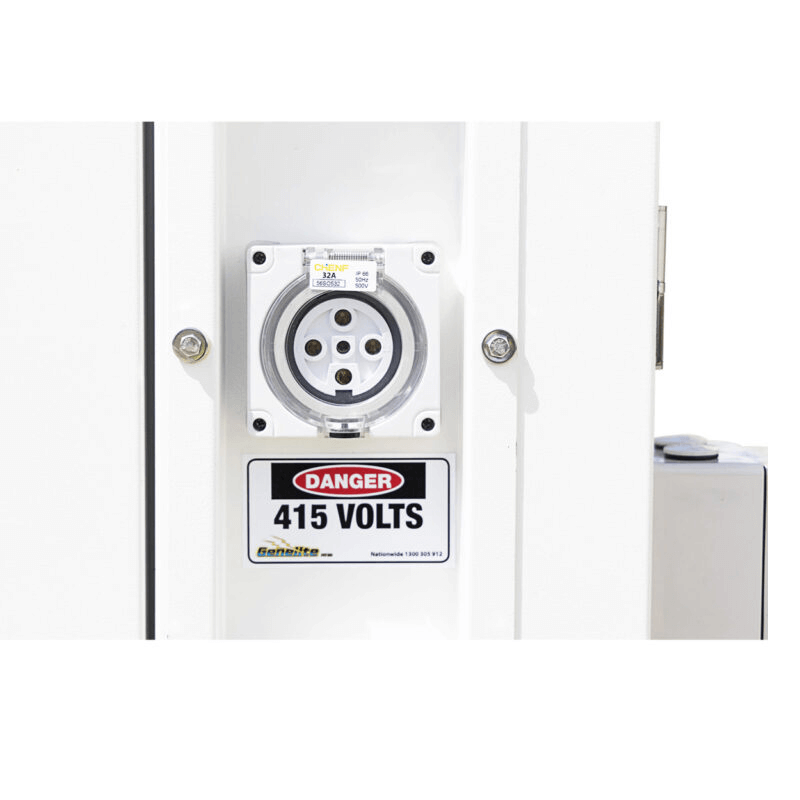

  • 1 × 32 A (415 V)

  • 2 × 15 A (240 V)

• Battery charger and isolator included

Physical

• Dimensions: 203.8 cm (L) × 85 cm (W) × 112.5 cm (H)

• Weight (Dry): ~900 kg

Optional Extras

• Mine spec kit

• Jacket water heater

• External fuel connection

• Auto Transfer Switch (ATS) compatible

Hyundai DHY14KSE-3 14kVA 3 Phase Diesel Generator FAQs

1. Is three phase right for me?
Only if you genuinely have three phase equipment or supply. Most homes and small workshops are single phase, and a three phase generator won't suit them. If you're not certain what you have, ring us on 1300 902 361 before ordering, it's the most common and most expensive mistake on these.

2. What are the power ratings?
Prime power is 13kVA / 10.4kW continuous, with 14kVA / 11.2kW standby. Three phase at 415V, 50Hz, at 1500 RPM.

3. How efficient is it?
Consumption runs approximately 4.98 L/hr at full load, 3.8 L/hr at 75% and 2.7 L/hr at 50%. It uses an electronic governor, which holds frequency more tightly than a mechanical one under changing load.

4. What engine and fluids does it use?
A 4-cylinder H4DW81-23D at 2.27 litres displacement, taking 7.8 litres of oil and 15.5 litres of coolant.
