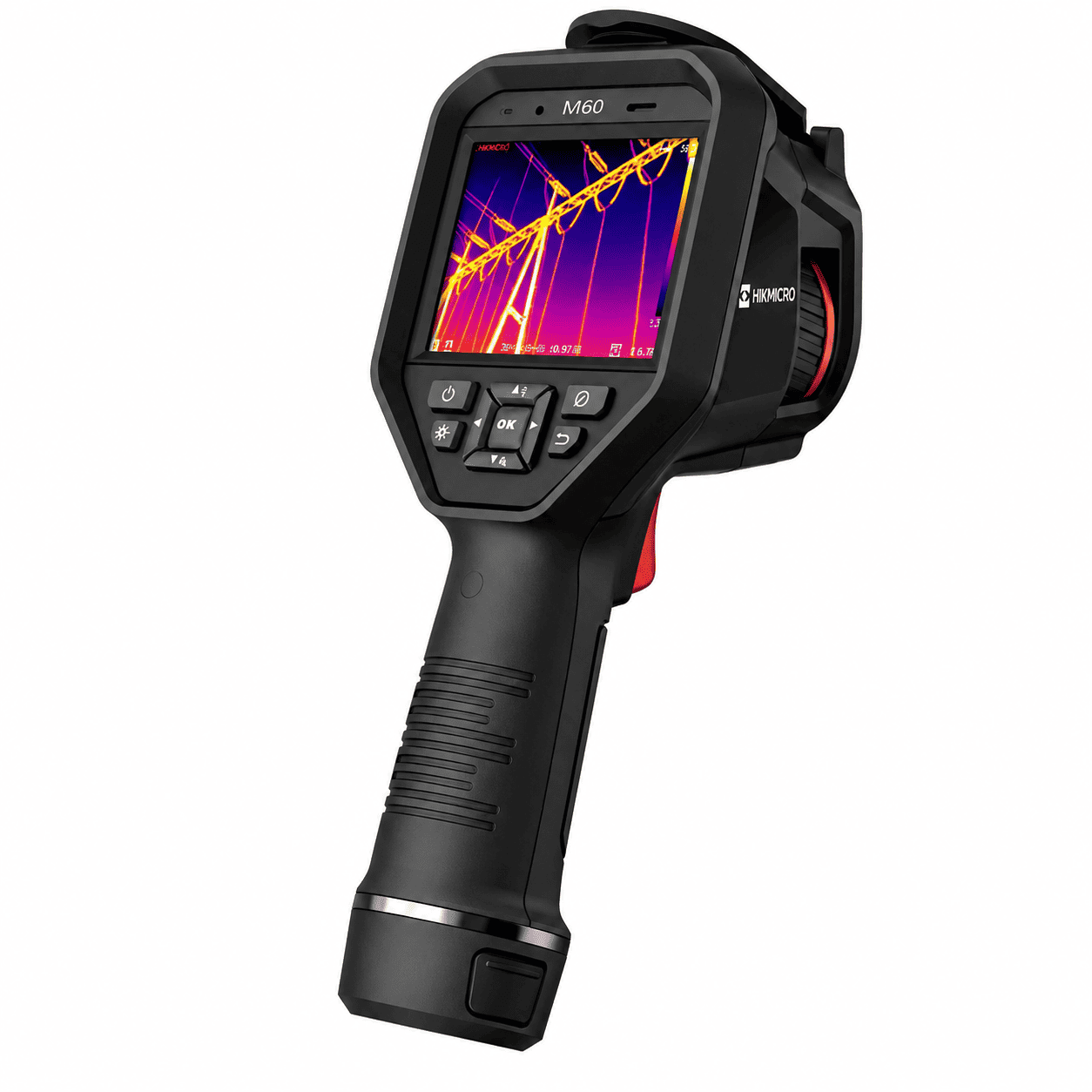

HIKMicro M60 Thermal Camera – Clear Thermal Imaging, Built Tough!
Tired of chasing electrical faults, overheating components or dodgy insulation without knowing exactly where the problem is hiding?
The HIKMicro M60 Thermal Imaging Camera takes the guesswork out of inspections, giving you a clear view of temperature differences so you can find potential trouble before it turns into a proper headache.
With detailed thermal imaging, manual focus and plenty of handy measurement tools, it’s built to help sparkies, technicians and maintenance pros get to the bottom of problems quicker, without playing a frustrating game of hide-and-seek.
Ready to make your thermal inspections a whole lot easier? Check out the HIKMicro M60 today.
Why The HIKMicro M60 May Be Right For You:
- Spot tricky faults with greater confidence thanks to the M60’s 640 × 480 infrared resolution, giving you detailed thermal images that make potential hot spots and temperature differences easier to identify.
- Pick up subtle temperature differences before they become bigger dramas with <35 mK thermal sensitivity (NETD), helping you identify potential issues that could otherwise be easy to miss.
- Inspect everything from nearby components to larger equipment with a clearer view using the M60’s manual focus from as close as 0.3 metres, helping you capture sharp thermal images and more precise measurements.
- Tackle a wide range of jobs with one handy bit of kit thanks to its -20°C to 650°C temperature measurement capability, letting you inspect anything from cold areas to seriously hot equipment without mucking about with multiple cameras.
- Find and document problem areas without making the job harder than it needs to be using hot spot, cold spot, centre spot and user-definable measurement tools, helping you analyse temperatures and record inspection findings more efficiently.
HIKMicro M60 Package Contents:
- Quick Start Guide (QSG) × 1
- USB 2.0 A to USB Type-C Cable × 1
- Power Supply for Battery Charger × 1
- International Power Plugs (US/EU/UK/AU)
- Rechargeable Batteries × 2
- Two-Bay Battery Charger × 1
- Hard Carrying Case × 1
- Wrist Strap × 1
- Calibration Certificate × 1
M60 Thermal Camera Data Sheet:
HIKMicro M60 Thermal Camera Tech Specs
Infrared Image
- IR Resolution: 640 × 480 (307,200 pixels)
- SuperIR Resolution: 1280 × 960 (1,228,800 pixels)
- NETD: < 35 mK (@ 25°C, F# = 1.0)
- Image Frequency: 30 Hz
- Detector Pitch: 17 μm
- Spectral Range: 7.5 to 14 μm
- Focal Length: 15 mm
- F-number: F1.0
- Field of View (FOV): 41.9° × 33.3°
- Spatial Resolution (IFOV): 1.13 mrad
- Minimum Focus Distance: 0.3 m (0.98 ft)
- Focus Mode: Manual Focus
Image Display
- Visual Camera: 3264 × 2448 (8 MP)
- Display: 640 × 480 resolution, 3.5" LCD touch screen
- Screen Brightness: Manual
- Digital Zoom: 1.0× to 8.0× continuous
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue
- Color Alarm: Red Above / Below / Interval
- Image Modes: Thermal / Visual / Fusion / PIP / Blending
Measurement and Analysis
- Object Temperature Range: -20°C to 650°C (-4°F to 1202°F)
- Accuracy: Max (±2°C / 3.6°F, ±2%)
- Measurement Tools: Center Spot, Hot Spot, Cold Spot
- User-Definable Measurement Tools: 10 spots, 1 line, 5 rectangles, and 5 circles
- Level and Span Mode: Auto / Manual / 1-Tap Touch-screen
Data Storage and Communication
- Storage Media: Removable 64 GB Micro SD Card
- Image Storage Capacity: Approx. 100,000 images
-
Annotations:
- Voice note: Max. 60 seconds
- Text note: Max. 200 characters
- Video Storage Capacity: Approx. 300 hours
- Video File Format: MP4 video and radiometric video
- Radiometric Infrared-Video Streaming (Compressed): Over UVC
Connectivity
- Wi-Fi: 802.11 b/g/n (2.4 GHz and 5 GHz)
- Bluetooth: Bluetooth 4.2
- USB Interface: USB Type-C
- LED Light: Yes
-
Laser: Yes, Class II
- Wavelength: 650 nm
- Power: < 1 mW
Battery
- Battery Type: Interchangeable and rechargeable Li-ion battery
- Battery Operating Time: Approx. 4 hours
- Battery Charging Time: Approx. 4 hours for a full charge
- Power Saving Mode: No
Protection and Safety
- Protection Level: IP54

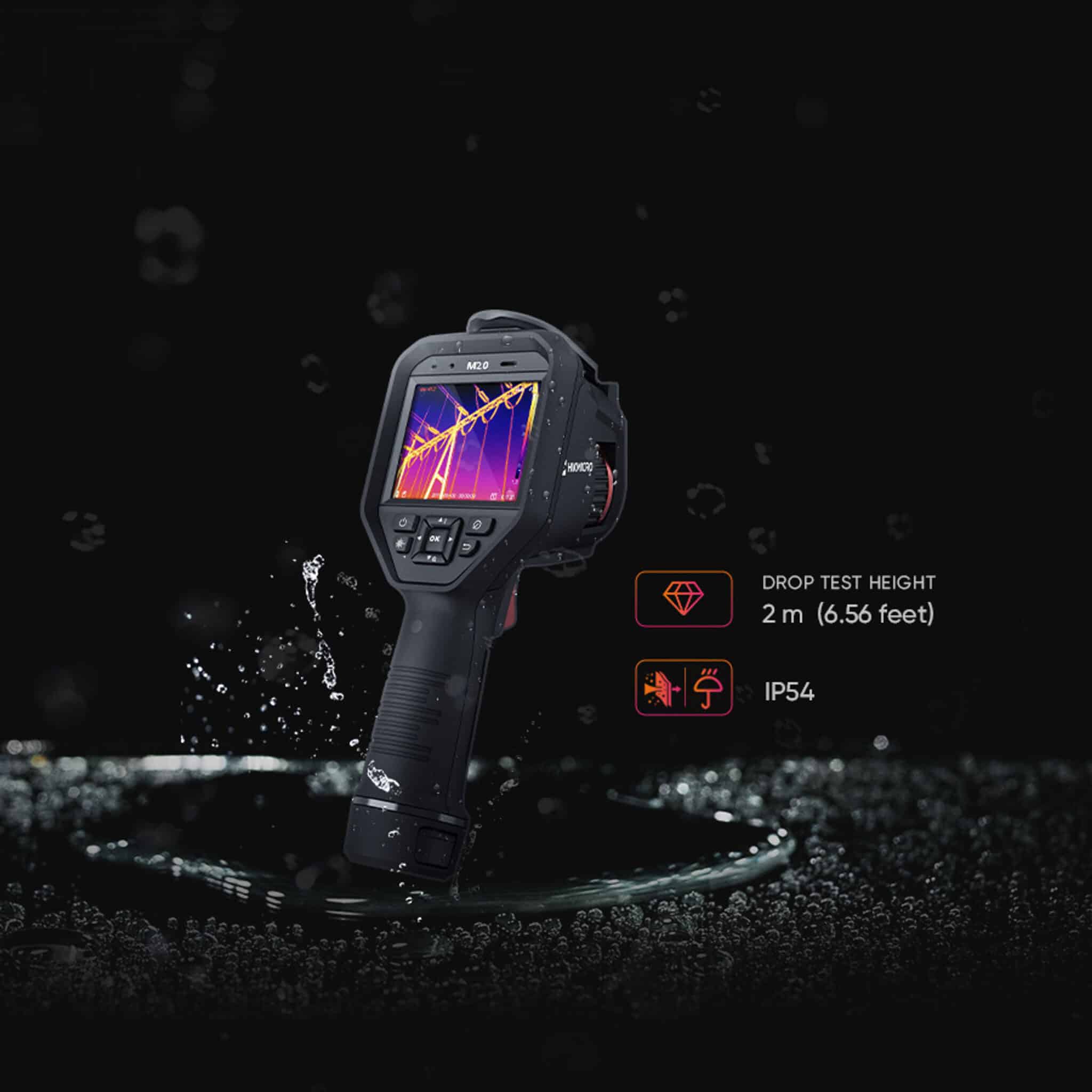

- Drop Test Height: 2 m (6.56 ft)
- Safety Standard: IEC 61010-1
- EMC: EN55032, EN61326-1, EN61000-3-2, EN61000-3-3, EN IEC 61000-6-2, EN IEC 61000-6-3
- Vibration: 0.03 g²/Hz (3.8 g), 2.5 g, IEC 60068-2-6
- Shock: 25 g, IEC 60068-2-27
Environmental Specifications
- Working Temperature Range: -20°C to 50°C (-4°F to 122°F)
- Relative Humidity: < 95% non-condensing
- Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
Physical Specifications
- Weight: Approx. 686 g (1.51 lb)
- Dimensions: 244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in)
- Tripod Mounting: UNC ¼"-20
Warranty
- Full Product: 3 years
- Detector: 10 years
- Battery: 2 years
