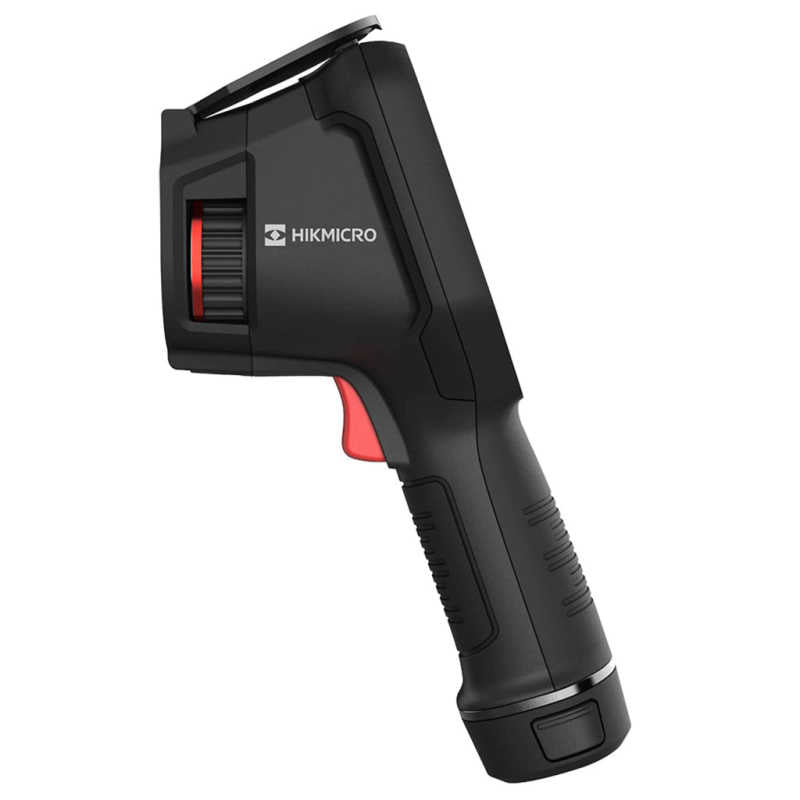

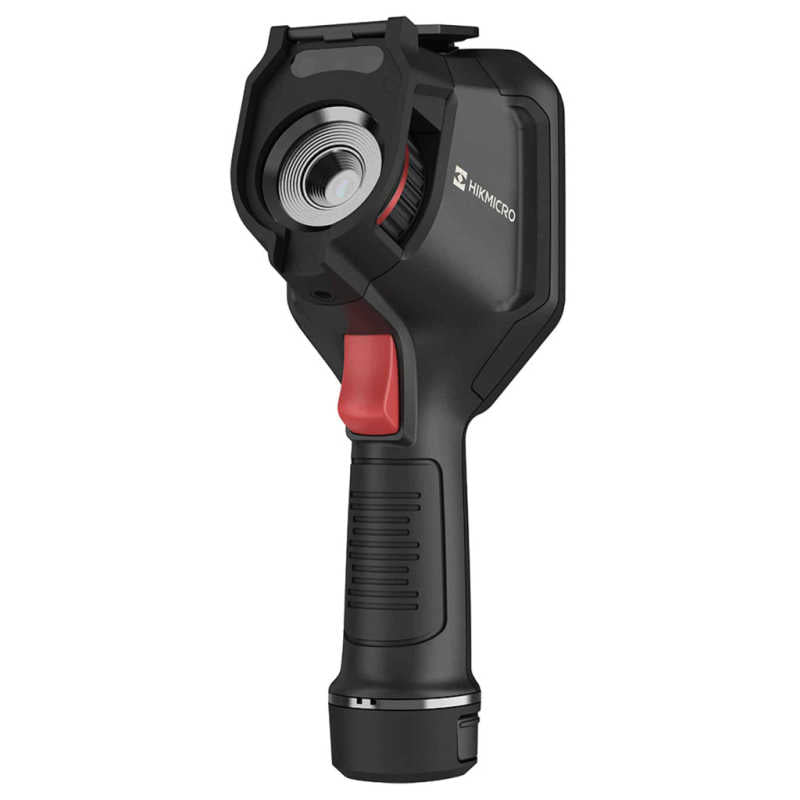

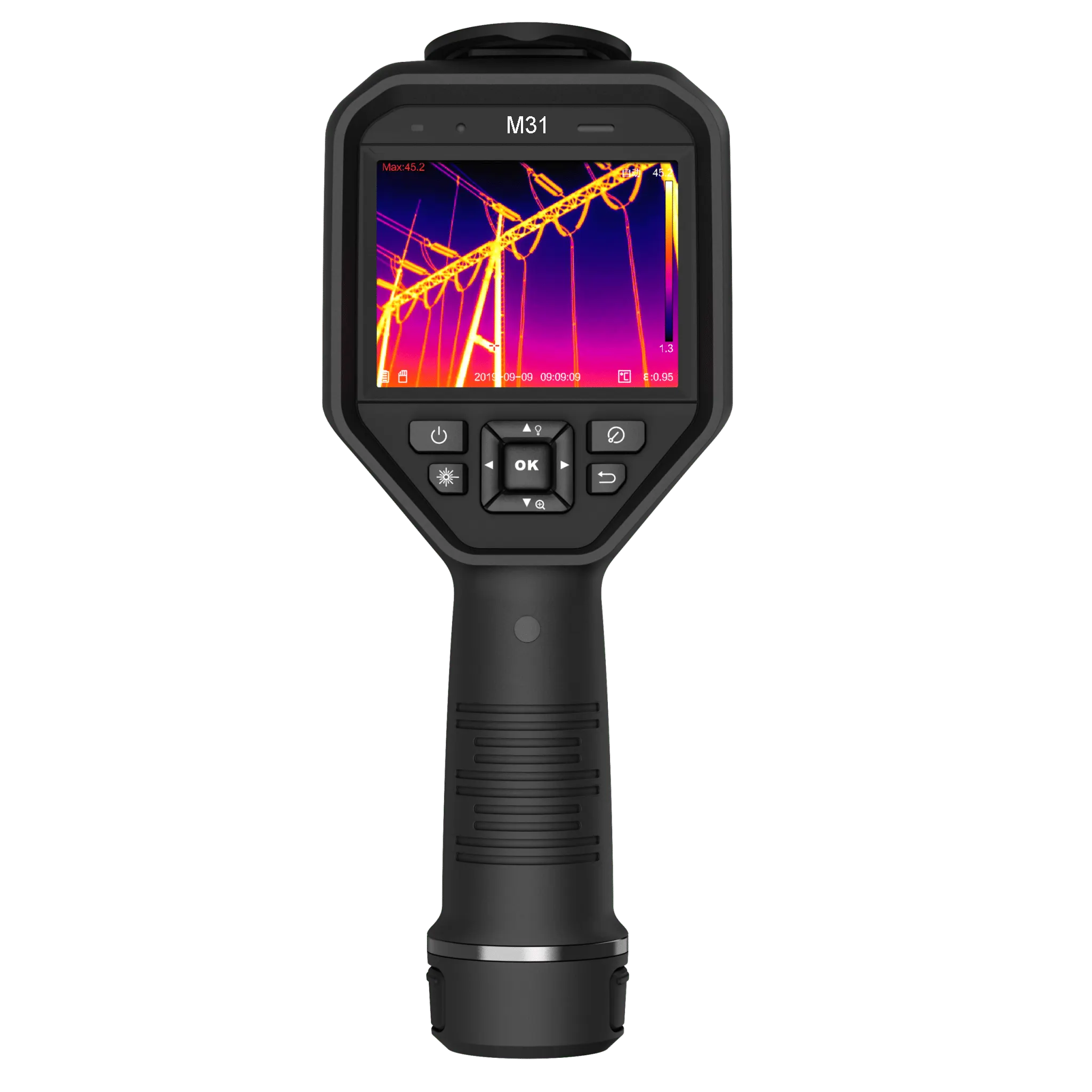

HIKMicro M31 Industrial Thermal Imaging Camera
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
HIKMicro M31, A Handy Camera for Thermal Inspections!
Hot spots, dodgy connections and overheating equipment have a nasty habit of hiding until they turn into a much bigger, and more expensive, headache.
The HIKMicro M31 Thermal Camera helps you spot temperature problems early, with crisp thermal imaging, manual focus and handy zoom so you can get a proper look without playing the old “she’ll be right” guessing game.
Built tough for industrial inspections and ready for a full day on the tools, it makes finding faults quicker and easier, so you can sort the problem before it sorts your wallet.
Get your HIKMicro M31 today and start catching heat problems before they become costly dramas.
Catch problems before they get expensive, add one to your cart today.
Why The HIKMicro M31 May Be Right For You:
- Spot hidden problems before they become costly dramas thanks to the 384 × 288 high-resolution thermal sensor, giving you a clear thermal picture so you can find faults early and get them sorted sooner.
- Get a better look at tricky or hard-to-reach areas with manual focus and digital zoom capability, helping you inspect the finer details without mucking around or second-guessing what you’re seeing.
- Keep working confidently in demanding conditions with the rugged IP54-rated design, giving you a dependable thermal camera that’s well suited to everyday industrial inspections.
- Spend more time inspecting and less time worrying about a flat battery with the long battery life and interchangeable battery design, helping you knock over bigger inspection jobs with fewer interruptions.
-
Make sharing and reviewing inspection results a whole lot easier with built-in Wi-Fi connectivity, allowing you to transfer thermal data conveniently and keep your inspection work moving without unnecessary fuss.
M31 Industrial Thermal Camera Package Contents:
- Quick Start Guide (QSG) × 1
- USB 2.0-A to USB Type-C Cable × 1
- Power Supply for Battery Charger × 1
- International Power Plugs (US/EU/UK/AU)
- Battery × 2
- Two-Bay Battery Charger × 1
- Hard Carrying Case × 1
- Wrist Strap × 1
- Calibration Certificate × 1
HIKMicro M31 Thermal Camera Data Sheet:
HIKMicro M31 Thermal Camera Tech Specs
Infrared Image
- IR Resolution: 384 × 288 (110,592 pixels)
- SuperIR: Yes, on captured images
- Thermal Sensitivity (NETD): <35 mK (@ 25°C, F#=1.0)
- Image Frequency: 30 Hz
- Detector Pitch: 12 μm
- Spectral Range: 7.5 to 14 μm
- Focal Length: 6.4 mm
- F-number: F1.0
- Field of View (FOV): 41.1° × 30.5°
- Spatial Resolution (IFOV): 1.87 mrad
- Minimum Focus Distance: 0.1 m
- Focus Mode: Manual Focus
Image Display
- Visual Camera: 3264 × 2448 (8 MP)
- Display: 3.5" LCD Touch Screen
- Display Resolution: 640 × 480
- Screen Brightness: Manual
- Digital Zoom: 1.0× to 8.0× Continuous
- Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm
- Colour Alarm: Above / Below / Interval / Insulation
- Image Modes: Thermal / Visual / Fusion / PIP / Blending
Temperature Measurement & Analysis
- Temperature Range 1: -20°C to 150°C
- Temperature Range 2: 0°C to 650°C
- Accuracy: Max. ±2°C or ±2%
- Measurement Tools: Centre Spot, Hot Spot, Cold Spot
- User-Definable Tools: 10 Spots, 1 Line, 5 Rectangles, 5 Circles
- Level & Span Mode: Auto / Manual / 1-Tap Touch Screen
- SuperScene+: Electrical Panel and PCB Inspection
Data Storage & Communication
- Image Storage Capacity: Approx. 100,000 images (8 MP)
- Video Storage: MP4 up to approx. 400 hours
- Radiometric Video Storage: Up to approx. 50 hours
- Video Formats: MP4 and Radiometric Video
- Radiometric IR Video Streaming: UVC and Wi-Fi
- Memory Card: Expandable up to 64 GB Micro SD
- Annotations: Voice Note, Text Note, QR Code, Picture Note, Tag Note and Sketch
Connectivity
- Wi-Fi: 802.11 b/g/n, 2.4 GHz and 5 GHz
- Bluetooth: Bluetooth 4.2
- USB Interface: USB Type-C
General
- LED Light: Yes
- Laser: Class II, 635 nm, <1 mW
- Battery: Interchangeable Rechargeable Li-ion
- Battery Operating Time: Approx. 4 Hours
- Charging Time: Approx. 4 Hours
- Power Saving Mode: Yes
- Protection Rating: IP54
- Drop Test Height: 2 m
- Vibration Resistance: 2 g, IEC 60068-2-6
- Shock Resistance: 25 g, IEC 60068-2-27
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -40°C to 70°C
- Relative Humidity: <95%, Non-Condensing
- Weight: Approx. 720 g
- Dimensions: 244 × 100 × 104 mm
- Tripod Mount: UNC ¼"-20
Warranty
- Full Product: 3 Years
- Detector: 10 Years
- Battery: 2 Years
HIKMicro M31 Industrial Thermal Imaging Camera FAQs
1. What does the resolution actually mean in practice?
384 x 288 gives 110,592 individual temperature readings per frame. More pixels means you can pick out smaller faults from further away, which matters when you can't get close to the thing you're inspecting.
2. How sensitive is it?
Thermal sensitivity is under 35 mK at 25°C, so it resolves temperature differences of a few hundredths of a degree. Spectral range is 7.5 to 14 micrometres with a 30 Hz image frequency.
3. Does it have a normal camera as well?
Yes, an 8 megapixel visual camera at 3264 x 2448, which lets you overlay or compare thermal and visible images. The display is a 3.5 inch LCD touchscreen at 640 x 480.
4. How close can I focus?
Minimum focus distance is 0.1 metres with manual focus and a 6.4mm lens at F1.0. Field of view is 41.1 by 30.5 degrees.
