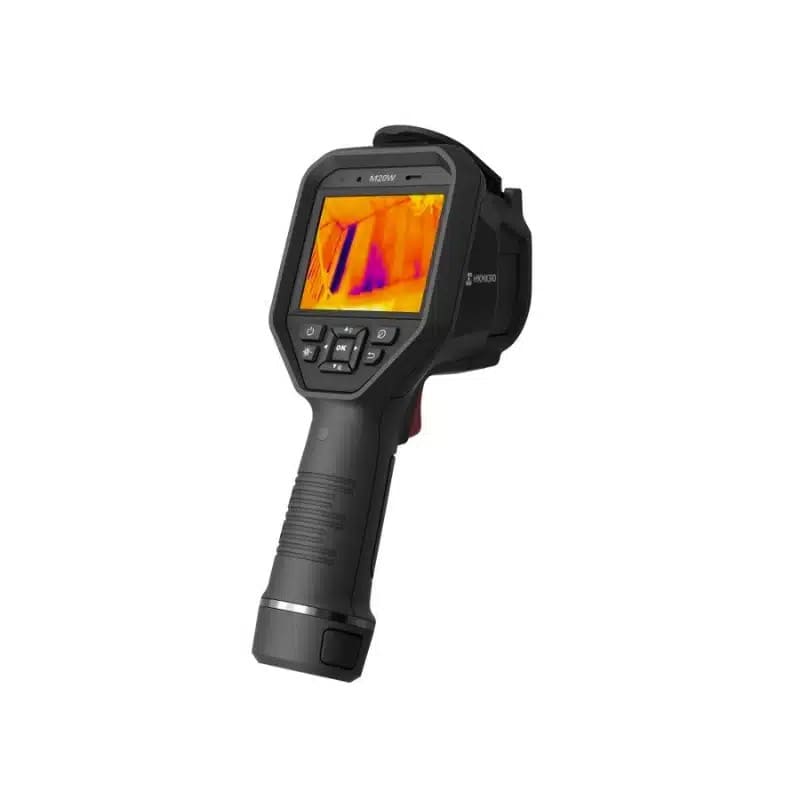

HIKMicro M20W Thermal Imaging Camera With Wi-Fi
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
HIKMicro M20W With Wi-Fi, Clear Thermal Imaging Made Easy!
Finding a dodgy hot spot, electrical fault or temperature problem shouldn’t feel like searching for a needle in a haystack.
The HIKMicro M20W Thermal Camera helps you spot temperature differences quickly and clearly, so you can get onto potential problems before they turn into costly headaches. With sharp thermal imaging, handy Wi-Fi connectivity and a rugged design built for the job site, it takes a fair bit of mucking around out of inspections.
Better yet, you can capture, annotate and share your findings while you’re on the job, no need to rely on scribbled notes you’ll struggle to decipher later. If you’re after a reliable thermal camera that helps make inspections quicker and easier, check out the HIKMicro M20W today.
Find the fault in seconds and add one to your cart today.
Why The HIKMicro M20W May Be Right For You:
- Spot potential faults with greater confidence thanks to the 256 × 192 IR resolution and SuperIR enhancement up to 512 × 384, giving you clearer thermal detail to help identify troublesome areas before they become bigger dramas.
- Keep working through longer inspection days with the interchangeable battery system and two supplied Li-ion batteries, giving you up to 12 hours of combined operation so you’re less likely to be caught flat when there’s still work to do.
- Save yourself the hassle of handwritten notes with built-in text and audio image annotations, helping you keep important inspection details together and making your reporting easier to sort out afterwards.
- Find areas of concern faster with the 1-Tap Level & Span function on the 3.5-inch touchscreen, quickly adjusting image contrast so suspicious hot or cold spots stand out without heaps of fiddling about.
- Share results without mucking around with cables using built-in Wi-Fi and the HIKMICRO Viewer App, allowing you to transfer photos and videos to your mobile device and get reports moving while you’re still on site.
M20W Thermal Camera Package Contents:
- HIKMICRO M20W Thermal Imager
- Wrist Strap
- 2 × Interchangeable Rechargeable Li-ion Batteries
- Two-Bay Battery Charger
- Battery Charger Power Supply
- 4 × International Power Plugs - AU / US / EU / UK
- USB 2.0 Type-A to USB Type-C Cable
- Hard Carrying Case
- Calibration Certificate
- Quick Start Guide
- 16GB Micro SD Card
HIKMicro M20W With Wi-Fi Data Sheet:
M20W Thermal Camera Tech Specs:
| IR Resolution | 256 × 192 (49,152 pixels) |
| Visual Camera | 8MP |
| Display | 3.5″ LCD Touch Screen, 640 × 480 Resolution |
| Wide Temperature Measurement Range | -20°C to 550°C |
| Storage | 16 GB Micro SD Card, approx. 60,000 images capacity |
| Connectivity | Wi-Fi, Bluetooth 4.2, USB Type-C |
| Battery | Interchangeable Li-ion, approx. 6 hours of use |
| SuperIR | 512 × 384 (196,608 pixels) |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 50° × 37.2° |
| Spatial Resolution (IFOV) | 3.33 mrad |
HIKMicro M20W Thermal Imaging Camera With Wi-Fi FAQs
1. Does the HIKMICRO M20W Thermal Camera require assembly before use?
No, the HIKMICRO M20W requires no complicated assembly. Simply install the rechargeable lithium-ion battery, charge it, and power on the camera. Its focus-free lens and 3.5-inch touchscreen make it easy to start thermal inspections.
2. What can the HIKMICRO M20W Thermal Camera be used for?
The HIKMICRO M20W is ideal for electrical inspections, HVAC maintenance, building inspections, and detecting temperature abnormalities. It features a 256 × 192 thermal resolution, a wide 50° field of view, and a temperature measurement range of -20°C to 550°C.
3. Is the HIKMICRO M20W safe to use in demanding environments?

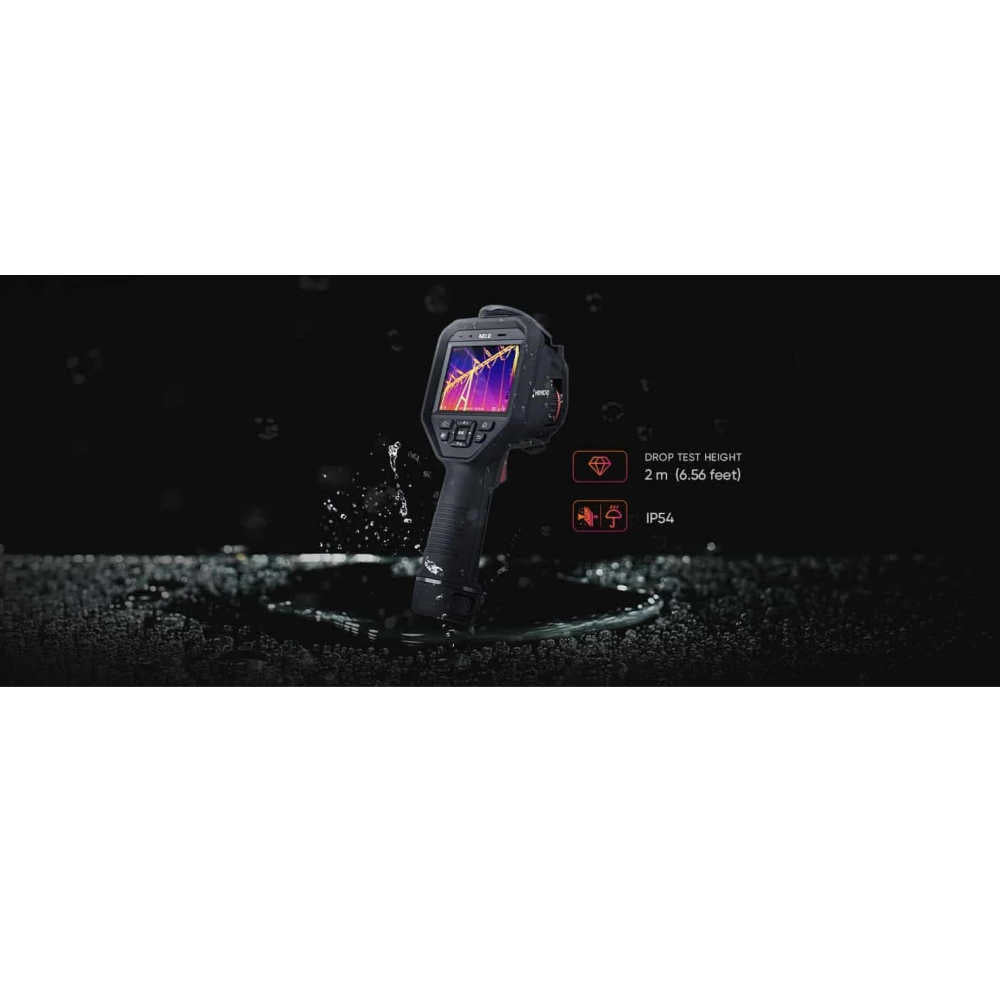

Yes, the HIKMICRO M20W features an IP54 protection rating against dust and water splashes and is drop-tested from heights of up to 2 metres. It also complies with IEC 61010-1 safety standards. Avoid looking directly into the laser or pointing it at anyone's eyes.
4. Does the HIKMICRO M20W Thermal Camera come with a warranty?
HIKMICRO provides manufacturer warranty coverage, but the exact warranty period and conditions should be confirmed with the authorised Australian retailer. Customers should retain their proof of purchase and follow the manufacturer's warranty procedures for eligible claims.
