Enerdrive | Dometic eSYS-F Off-Grid Power System

Enerdrive Dometic eSYS-F Power System You Can Rely On!

If your last camping trip had you hostage to power points, dodgy extension cords, and a battery that croaked before dinner, then the Enerdrive Dometic eSYS-F Off-Grid Power System is your ticket to sweet, sweet autonomy.

This pre-wired powerhouse handles solar, alternator and shore power without making you scratch your head, so you can fire up the barbie and brew that perfect cuppa without drama.

No more “Does this cable go where?” or “Why won’t this bloody thing work?”, it just does. Ready to take the stress out of off-grid living? Get it sorted right here!

Stop being hostage to powered sites, add one to your cart today.

Why The Enerdrive Dometic eSYS-F May Be Right For You:

• Save time and avoid wiring headaches thanks to the fully pre-wired Enerdrive Dometic eSYS-F power system, so you can get set up quicker and spend more time enjoying the trip instead of scratching your head.

• Enjoy reliable 240V power wherever you pull up with the built-in 2000W inverter, giving you the confidence to run appliances like kettles, induction cooktops and coffee machines without worrying about power drops.

• Keep your batteries topped up no matter the conditions using the solar, vehicle and AC charging inputs, so you stay powered whether you’re free-camping, driving or plugged in at a caravan park.

• Know exactly what’s going on with your power at a glance thanks to the integrated battery monitoring, meaning no nasty surprises and no guessing when it’s time to recharge.

• Protect your gear and power system automatically with the built-in safety and battery management features, so everything runs smoothly and safely for years to come.

Enerdrive Dometic eSYS-F Package Contents:

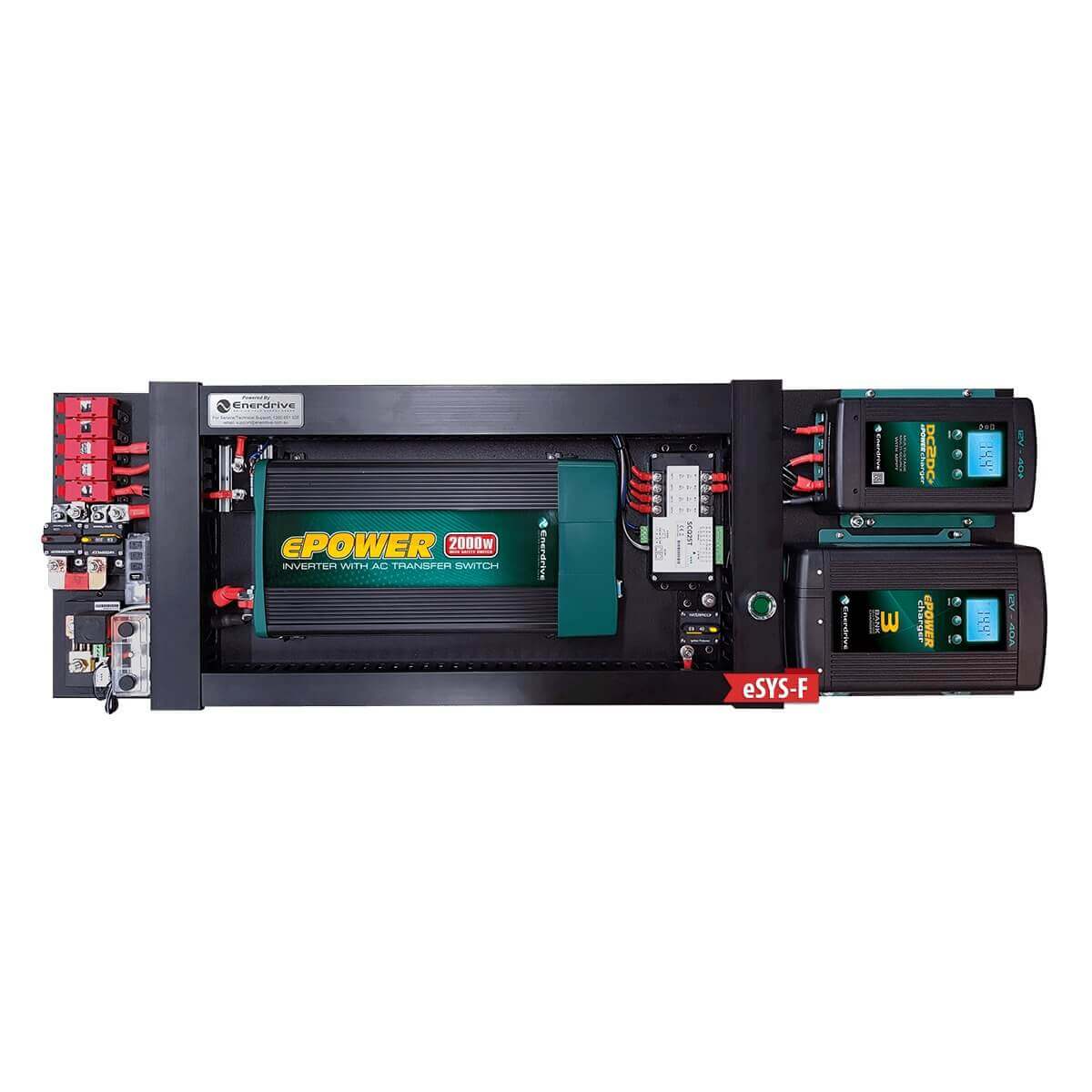

• Enerdrive Dometic eSYS-F Off-Grid Power System unit

• Built-in 2000W inverter and battery management system

• Integrated battery monitoring display

• Pre-wired solar, vehicle and AC charging connections

• All internal fuses and safety protection pre-installed

Enerdrive Dometic eSYS-F Wiring Diagram:

eSYS-F Off Grid Power System Tech Specs:

General

• Model: eSYS-F Pre-Wired Off-Grid Power System

• Dimensions: 1185 mm (W) × 380 mm (H) × approx. 130 mm (D)

• Weight: approx. 23 kg

• Warranty: 5 years

Power & Charging

• Vehicle charging input: 12 V or 24 V up to 50 A

• Solar input: up to 45 V open circuit, approx. 800 W

• Mains charging: 240 V AC up to 40 A

Inverter

• Pure sine wave inverter rated at 2000 W

Monitoring & Control

• Simarine battery monitoring system included

• Lithium low-battery reset button (12 V input only)

Build & Protection

• Pre-wired on 12 mm water and rot-resistant mounting board

• Integrated system circuit breakers and inverter protection

Enerdrive Dometic eSYS-F Off-Grid Power System FAQs

1. What does the eSYS-F include?
A pre-wired unit with a built-in 2000W inverter and battery management system, an integrated battery monitoring display, pre-wired solar, vehicle and AC charging connections, and all internal fuses and safety protection pre-installed.

2. How big is it and where does it mount?
It's a wide board at 1185mm wide by 380mm high and around 130mm deep, weighing approximately 23kg. You need a flat run of wall that can carry that, so measure before ordering — it's the most common reason one of these goes back.

3. What can it charge from?
Vehicle charging at 12V or 24V up to 50A, plus solar and 240V AC inputs, all pre-wired. Batteries are supplied separately.

4. What warranty does it carry?
5 years. It arrives pre-wired on its board or in its enclosure, which removes most of the work and the guesswork. You still need the system mounted and connected to your batteries, vehicle and any solar, and that's high-current wiring. We'd recommend a qualified auto electrician unless you genuinely know what you're doing. Give us a ring on 1300 902 361 and we can help arrange it.
