Custom Lithium 460Ah Caravan Lithium Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Live Off-Grid Properly — The Custom Lithium 460Ah Caravan Battery
At 460 amp hours you're not managing power any more, you're just using it. Air conditioning, induction cooking, a washing machine, two fridges, Starlink and a diesel heater — all of it, for a week or more between recharges. The 460Ah Caravan delivers 380 amps of continuous discharge through M10 terminals and accepts a 130 amp charge, so a decent solar array and DC-DC setup keeps it topped up. A-grade automotive LiFePO4 cells, BMS protection, built in Australia.
Full-time off-grid capability. Order yours today!
Why The Custom Lithium 460Ah Caravan Lithium Battery May Be Right For You:
- Stop managing your power and simply use it, because 460Ah is a week or more of running everything in a modern van — the air con, the induction cooktop and the washing machine all stop being decisions you have to make.
- Run a big inverter without a moment's hesitation thanks to 380 amps of continuous discharge and up to 1600 amps of peak protection, so starting the air conditioner doesn't bring the whole system to its knees.
- Actually absorb everything your solar array produces with the highest charge rate in the range at 130 amps, instead of watching good sunlight go to waste on a battery that can't take it.

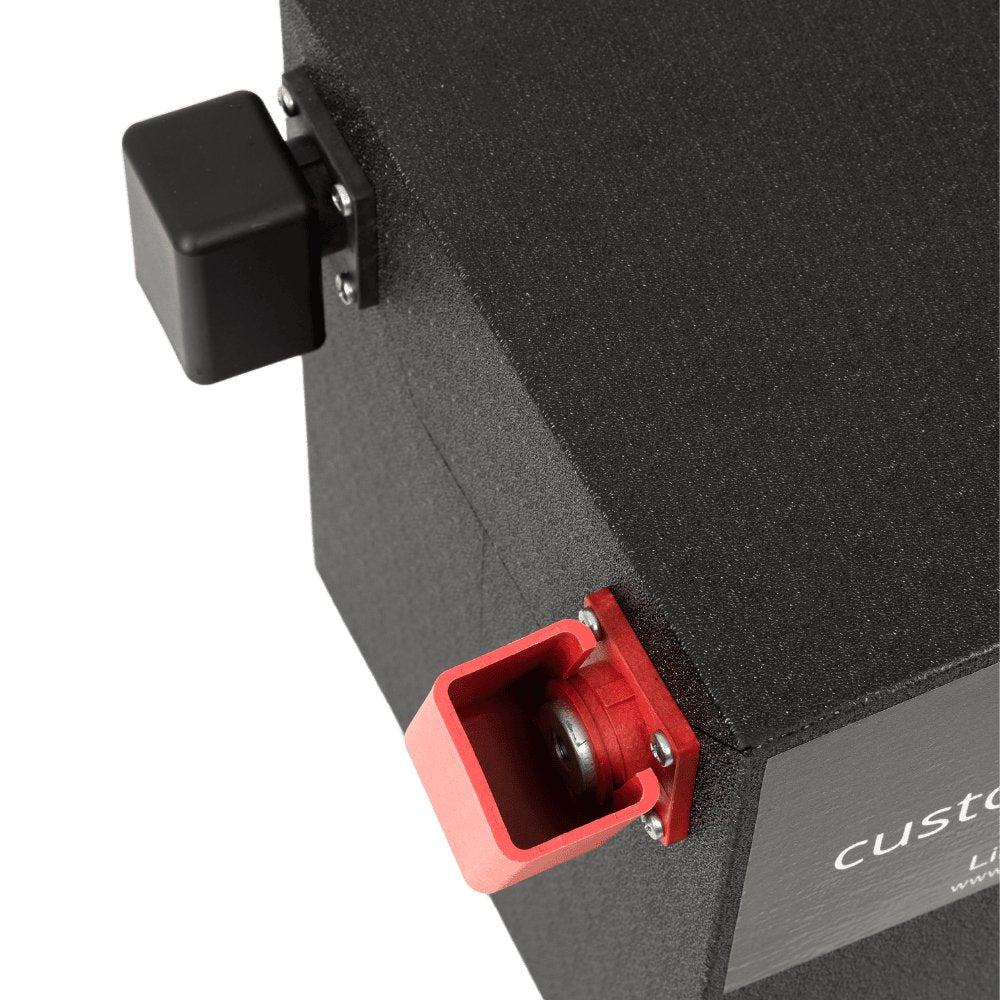

- Get a connection that won't work loose under load, because M10 terminals suit the heavy cable a system this size needs and keep resistance and heat down where it matters.
- Fit a genuinely serious capacity into a bay you can plan around at 456 x 235 x 262mm, rather than rebuilding half the van to accommodate it.
- Back a local business while you're at it, because every Custom Lithium battery is built here in Australia and bench-tested individually before it ships.
Custom Lithium 460Ah Caravan Lithium Battery Installation:
At 43 kg this is a two-person lift, and the cable sizing for 380 amps of discharge needs doing properly. If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 460Ah Caravan Lithium Battery Tech Specs
| CAPACITY: | 460AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | Continuous 380AMPs |
| PEAK DISCHARGE: | 1200A - 1600AMP Protection |
| RECOMMENDED CHARGE: | 130AMP |
| DIMENSIONS: | 406 x 236 x 262 |
| DIMENSIONS (Overall): | 456mm L x 235mm W x 262mm H |
| WEIGHT (KG): | 43kg |
| OPERATING TEMP: | 0°C – 65°C |
| TERMINALS: | M10 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |
Custom Lithium 460Ah Caravan Lithium Battery FAQs
1. What can the Custom Lithium 460Ah Caravan & RV Battery power?
The 460Ah LiFePO4 battery is designed for high-demand caravan, RV and off-grid setups. It can support appliances such as fridges, air conditioners, induction cooktops, coffee machines, Starlink, tools and other equipment when paired with a correctly sized inverter and charging system.
2. Does the 460Ah lithium battery require professional installation?
Professional installation by a qualified auto electrician is recommended. The battery should be installed with compatible lithium charging equipment and appropriate cabling, fusing and protection to ensure safe and reliable operation.
3. What safety features are built into the 460Ah battery?
The battery uses LiFePO4 cells and incorporates a Battery Management System (BMS) to help protect and manage the battery during operation. Correct installation, suitable charging equipment and operation within the manufacturer's specified limits are essential for safe use.
4. What warranty is included with the Custom Lithium 460Ah battery?
The Custom Lithium 460Ah Caravan & RV Lithium Battery comes with a 7-year warranty, subject to the manufacturer's warranty terms and conditions. Correct installation, charging and use according to the manufacturer's guidelines are important for maintaining warranty coverage.
