Custom Lithium 230Ah Ultra Slim Lithium Battery

Save $831.00
Original Price $2,590.00
Current Price $1,759.00
Estimated delivery …

This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.

Notify me when back in stock

230Ah At 66mm Thick, The Custom Lithium 230Ah Ultra Slim

This is the one that surprises people. 230 amp hours, proper long-stay capacity, in a case just 66mm thick. It mounts flat behind seats, under a false floor or against a canopy wall, freeing up the entire cubic space a conventional battery box would have taken. 330 amps of continuous discharge and M10 terminals mean it handles an induction cooker, inverter, fridge and Starlink without flinching. A-grade automotive LiFePO4 cells, BMS protection, made in Australia.

Capacity you'd expect from a box twice the size. Order yours today!

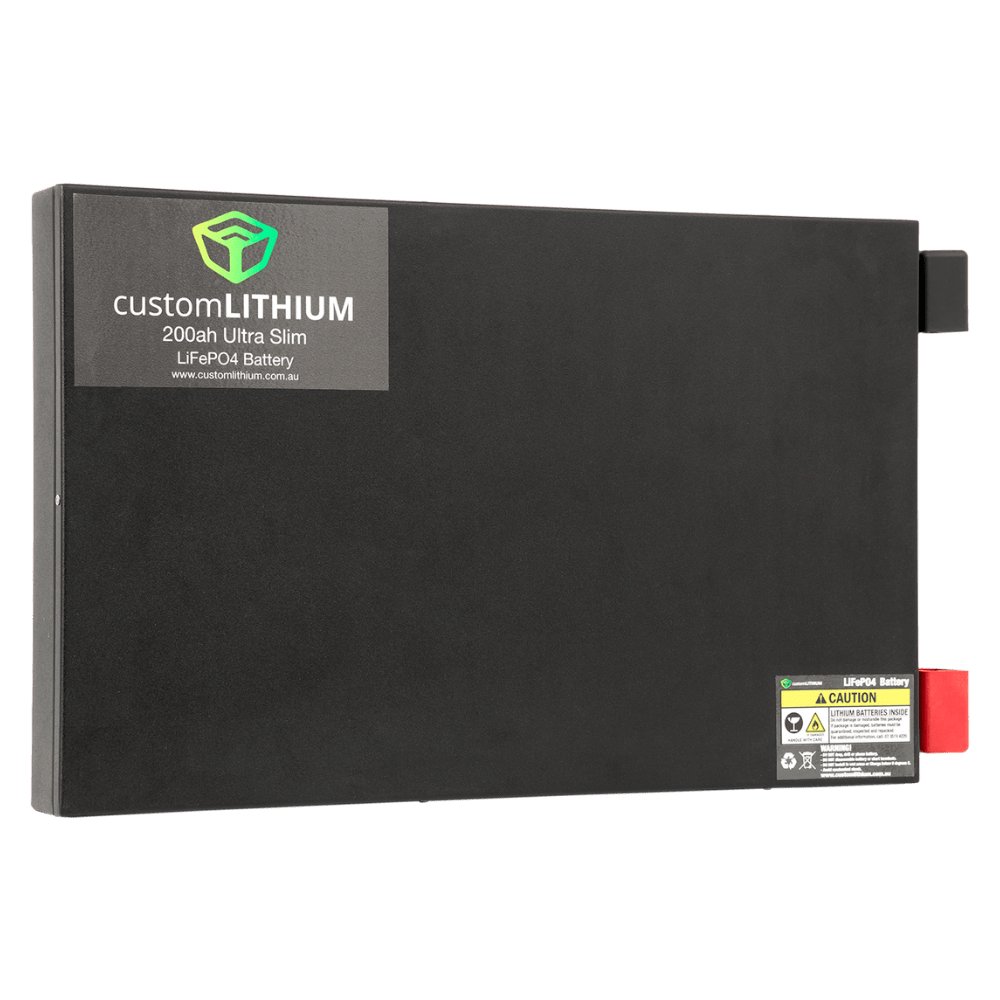

Custom Lithium 230Ah Ultra Slim LiFePO4 battery shown flat, front view with the customLITHIUM label on a white background.

Why The Custom Lithium 230Ah Ultra Slim Lithium Battery May Be Right For You:

  • 230Ah in a 66mm thick case, long-stay capacity in a shape that mounts flat where nothing else will.
  • 330 amps continuous discharge with up to 1600 amp peak protection, so it absorbs inverter surge loads without the BMS backing off.
  • M10 terminals rather than M8, giving a better connection for the heavy cable this sort of capacity deserves.
  • Takes up to 100 amps of charge, so solar and a DC-DC charger together put real capacity back in each day.
  • Power an induction cooker, tools, fridge, Starlink and a 240V inverter from a battery you'd forgotten was there.
  • A-grade automotive LiFePO4 cells with BMS protection and vibration-insulated components for corrugated roads.
Angled view of the Custom Lithium 230Ah Ultra Slim lithium battery showing how thin the 66mm case is.

Custom Lithium 230Ah Ultra Slim Lithium Battery Installation:

If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.

*Improper installation will void your warranty and may result in injury.

Custom Lithium 230Ah Ultra Slim Lithium Battery Tech Specs

CAPACITY: 230AH
NOMINAL VOLTAGE: 12.8V
CONSTANT DISCHARGE: 330 AMPs
PEAK DISCHARGE: 1060A - 1600AMP Protection
RECOMMENDED CHARGE: 100 AMPs
DIMENSIONS: 580mm L x 373mm W x 66mm H
DIMENSIONS (Overall): 620mm L x 373mm W x 66mm H
WEIGHT (KG): 22kg
OPERATING TEMP: 0°C – 65°C
TERMINALS: M10 terminals
CHARGE VOLTAGE: 14.2v – 14.6v
ABSORPTION/FLOAT: 13.4v – 13.6v
CUT OFF VOLTAGE: 10.5v

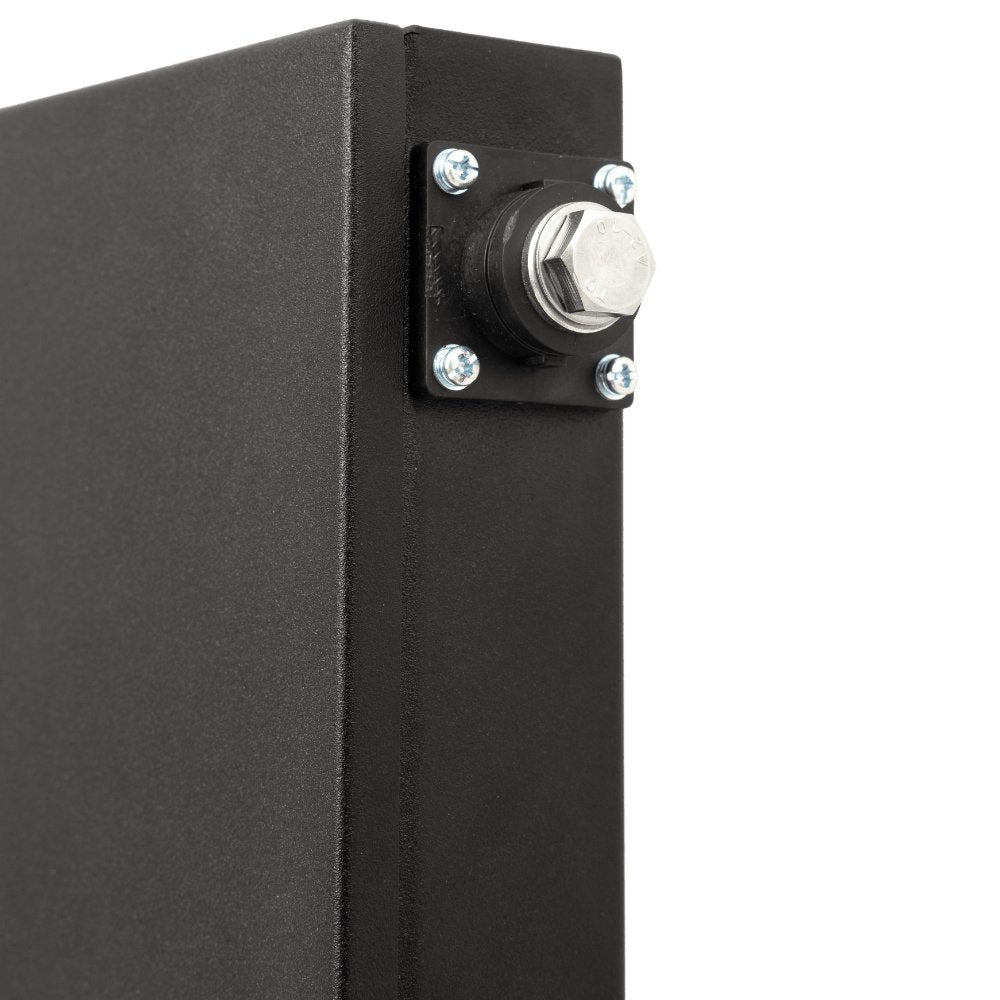

Close-up of the M10 terminal post on the Custom Lithium 230Ah Ultra Slim lithium battery.

Custom Lithium 230Ah Ultra Slim Lithium Battery FAQs

1. What can the 230Ah Ultra Slim Lithium Battery be used for?
The 230Ah battery is designed for 4WD, canopy, touring and off-grid power setups. Its slim design makes it suitable for tight installation spaces such as behind seats, under false floors or inside canopy walls. It can power equipment such as fridges, lights, computers, Starlink, induction cookers, air compressors and compatible inverter systems.

2. Does the 230Ah Ultra Slim Lithium Battery require professional installation?
Professional installation is recommended, particularly when integrating the battery with DC-DC chargers, solar controllers, inverters or existing electrical systems. The battery should be securely mounted, and all charging equipment must be compatible with LiFePO4 batteries.

3. What safety features does the battery have?
The battery uses LiFePO4 cells along with a Battery Management System (BMS) designed to protect against potentially damaging conditions such as overheating, over-discharge and short circuits. Correct installation, suitable cabling and compatible charging equipment are also important for safe operation.

4. What warranty is provided with the 230Ah Ultra Slim Lithium Battery?
The battery is backed by a 7-year warranty. Warranty coverage is subject to the manufacturer's applicable terms and conditions, including correct installation, charging and use of the battery.
