Custom Lithium 230Ah Compact Lithium Battery

Save $281.00
Original Price $2,090.00
Current Price $1,809.00
Estimated delivery …

This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.

Notify me when back in stock

An Extra Day Off-Grid For Not Much More, The Custom Lithium 230Ah Compact

The 230Ah Compact is the same physical size as the 200Ah, identical case, identical mounting, half a kilo heavier, but it carries 30 more amp hours. That's roughly another day of fridge, lights and charging before you need to think about recharging, for a modest step up in price. If you're already planning a 200Ah install and you're the sort of person who stays out longer than planned, this is the one to get.

Same space, more capacity. Order yours today!

Custom Lithium 230Ah Compact LiFePO4 battery front view showing the customLITHIUM label on a white background.

Why The Custom Lithium 230Ah Compact Lithium Battery May Be Right For You:

  • Pick up an extra day off-grid without changing a thing about your install, because it's the same 265 x 190 x 250mm case as the 200Ah and only half a kilo heavier, all that changes is how long you can stay.
  • Run the inverter, the induction cooker and the fridge together without anything tripping out, thanks to 330 amps of continuous discharge and up to 1600 amps of peak protection.
  • Stretch most caravan and camper setups to three or four days before a recharge even enters your head, which is exactly what that extra 30 amp hours buys you.
  • Fill it back up on a single drive between camps with a 100 amp charge rate, so your DC-DC charger does the work while you're moving.
  • Stop worrying about what the road surface is doing to it, A-grade automotive LiFePO4 cells, BMS protection and vibration-insulated internals handle the corrugations.
  • Back a local business while you're at it, because every Custom Lithium battery is built here in Australia and bench-tested individually before it ships.

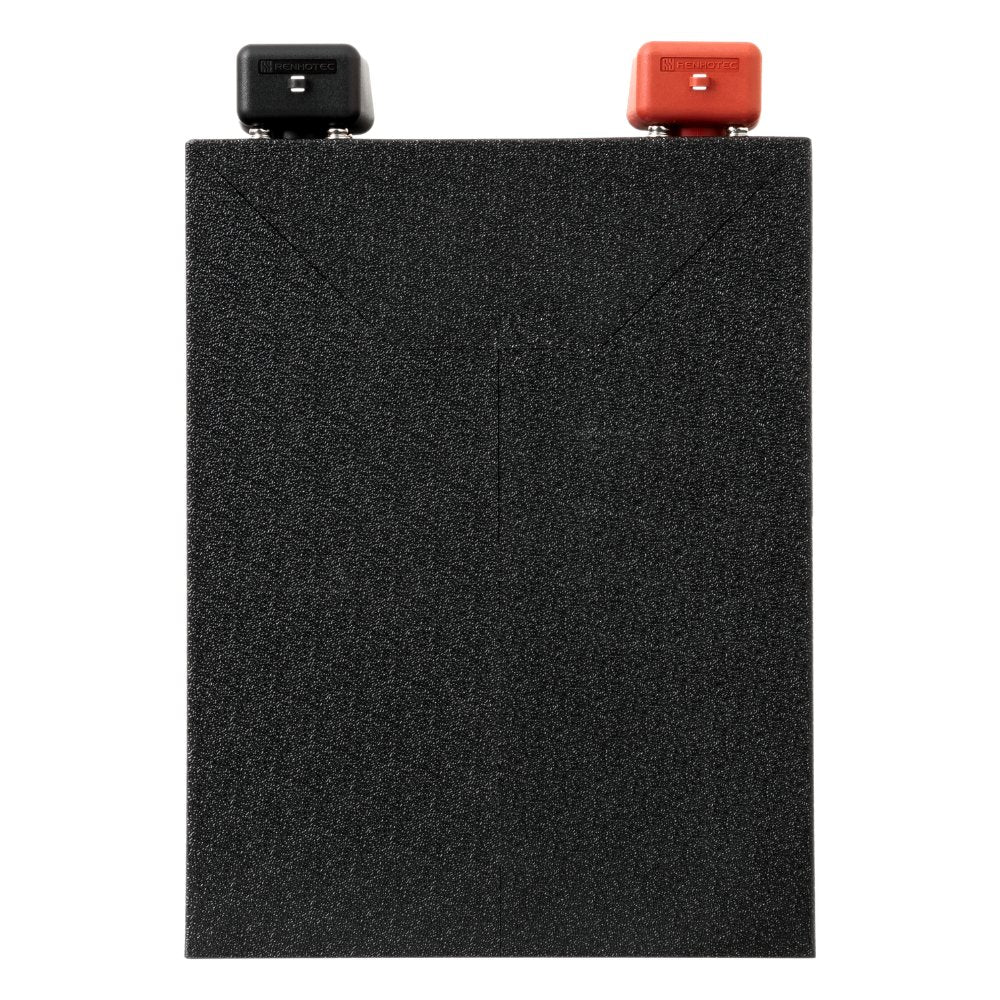

Angled view of the Custom Lithium 230Ah Compact lithium battery showing the case profile and terminal posts.

Custom Lithium 230Ah Compact Lithium Battery Installation:

If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.

*Improper installation will void your warranty and may result in injury.

Custom Lithium 230Ah Compact Lithium Battery Tech Specs

CAPACITY: 230AH
NOMINAL VOLTAGE: 12.8V
CONSTANT DISCHARGE: Continuous 330AMPs
PEAK DISCHARGE: 1060A - 1600AMP Protection
RECOMMENDED CHARGE: 100AMP Standard
DIMENSIONS: 265 x 190 x 250
DIMENSIONS (Overall): 265mm L x 190mm W x 275mm H
WEIGHT (KG): 18.5kg
OPERATING TEMP: 0°C – 65°C
TERMINALS: M8 terminals
CHARGE VOLTAGE: 14.2v – 14.6v
ABSORPTION/FLOAT: 13.4v – 13.6v
CUT OFF VOLTAGE: 10.5v

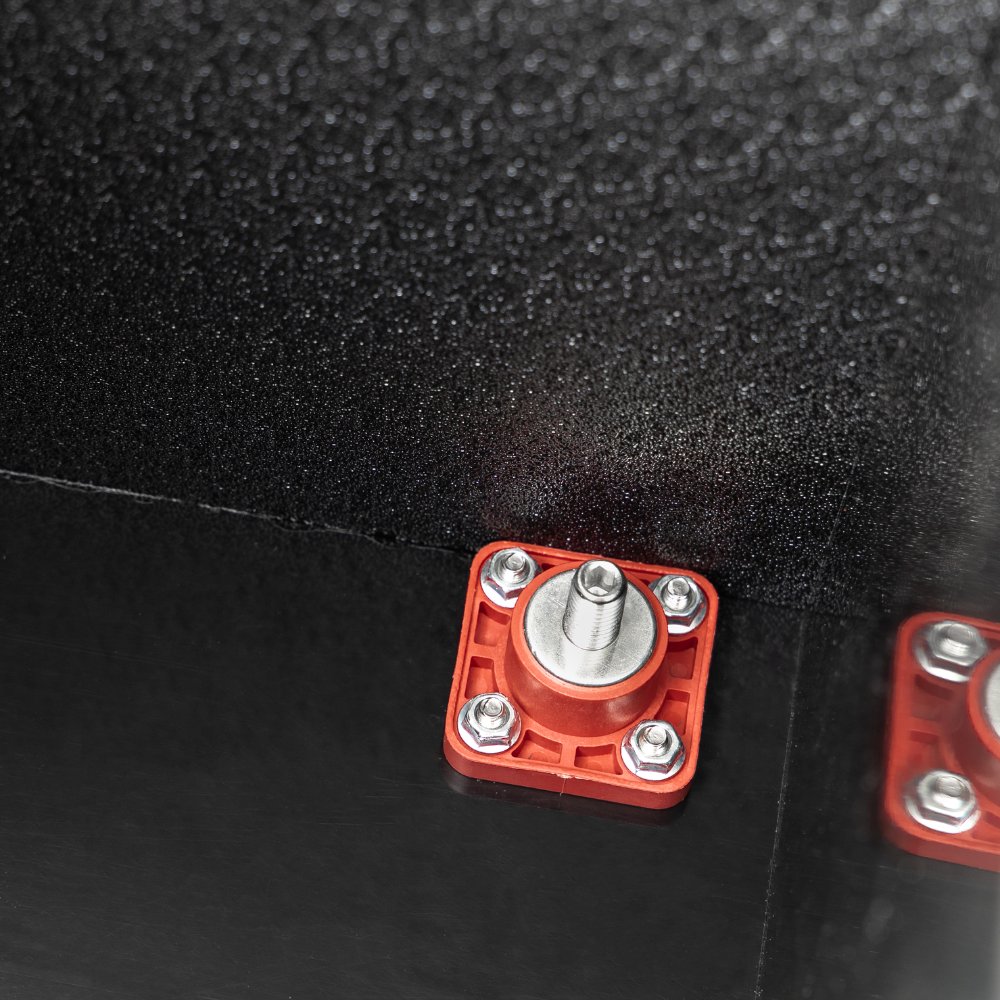

Custom Lithium 230Ah Compact lithium battery showing the M8 terminals and the lithium battery caution label.

Custom Lithium 230Ah Compact Lithium Battery FAQs

1. What can I use the Compact Lithium Battery for?
This compact 12V LiFePO4 battery is designed for caravans, RVs, 4WDs and off-grid power systems where space is limited. It can power common touring equipment such as fridges, lighting, inverters, computers and other 12V accessories.

2. Does the battery require assembly or professional installation?
The battery itself does not require assembly, but it should be securely mounted and correctly connected to a compatible 12V electrical and charging system. Make sure your DC-DC charger, solar controller and mains charger are suitable for LiFePO4 batteries.

3. What safety features does the battery have?
The battery uses A-grade automotive LiFePO4 cells, a high-current Battery Management System (BMS) and an active balancer. The BMS helps protect the battery against conditions such as overheating and over-discharge, while the active balancer helps maintain consistent cell performance.

4. What warranty does the Compact Lithium Battery include?
Custom Lithium Compact batteries are backed by a 7-year warranty, giving you added peace of mind for long-term use. Warranty coverage is subject to the manufacturer's warranty terms and conditions.
