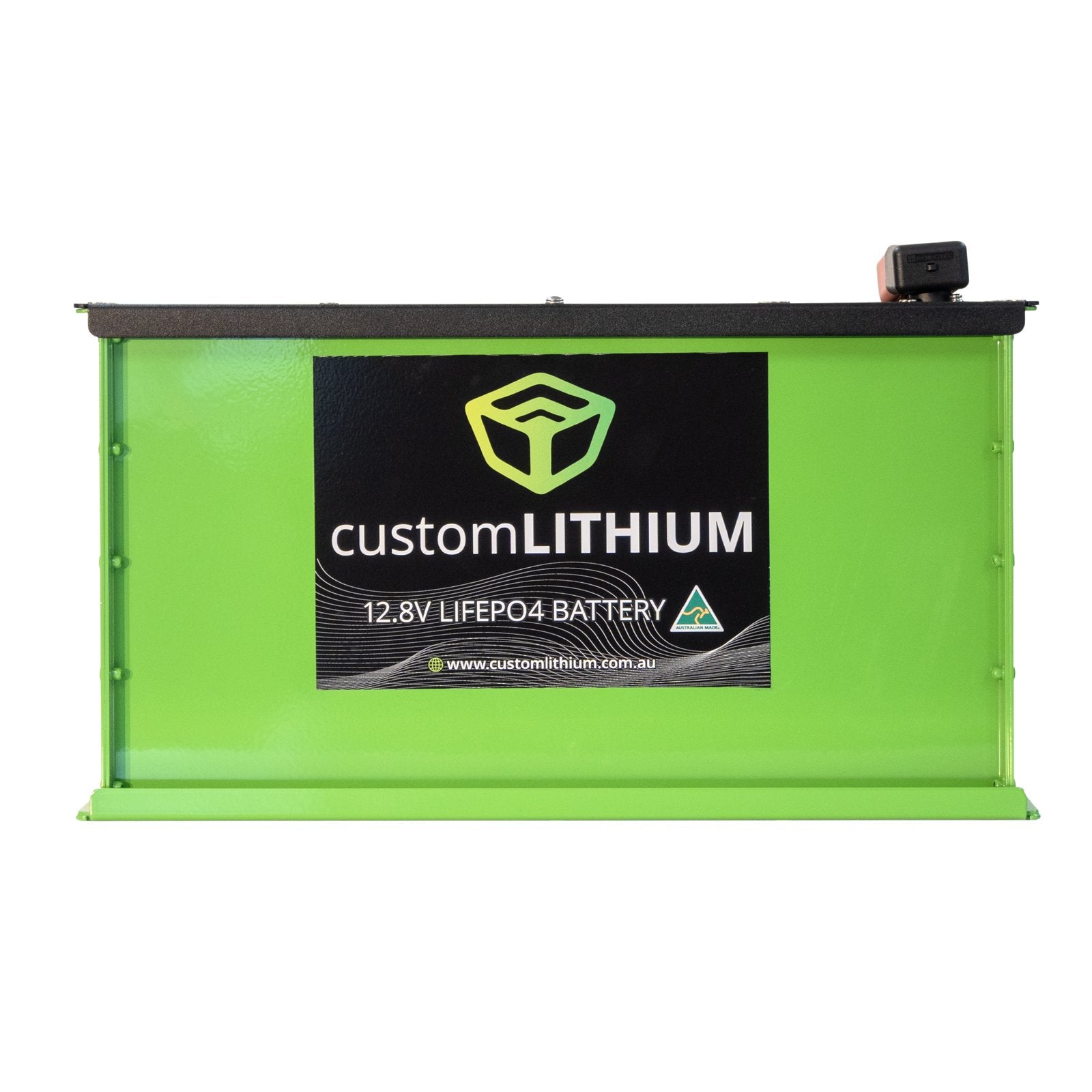

Custom Lithium 200Ah NextGen Slim Lithium Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Aluminium Armour, Serious Capacity, The Custom Lithium 200Ah NextGen Slim
This is the Slim rebuilt for punishment. The 200Ah NextGen Slim is housed in precision-engineered aluminium with rivnut fasteners, so it mounts solidly in any orientation and doesn't work loose on corrugated roads the way a plastic-cased battery eventually will. Flame-resistant internals, 200 amps of continuous discharge and a 160mm profile that still suits tight canopy and caravan installs. Purpose-built for harsh Australian conditions, made in Australia.
Built to last. Ready for anything. Order yours today!

Why The Custom Lithium 200Ah NextGen Slim Lithium Battery May Be Right For You:
- Rugged aluminium casing rather than plastic, maximum durability for 4x4s, canopies and trade setups that cop a hiding.
- Rivnut fasteners give you genuine mounting strength and let you install it in any scenario without improvising brackets.
- 200 amps continuous discharge with up to 1000 amp peak protection, comfortably supports demanding 12V systems and 240V inverters.
- 200Ah covers several days off-grid for most touring and remote work setups before recharging becomes a consideration.
- Flame-resistant internals and BMS protection, with A-grade automotive LiFePO4 cells behind them.
- Ideal for fridges, inverters, lighting, Starlink and tools. Made in Australia and individually bench-tested.

Custom Lithium 200Ah NextGen Slim Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 200Ah NextGen Slim Lithium Battery Tech Specs
| CAPACITY: | 200AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | 200 AMP |
| PEAK DISCHARGE: | 833A - 1000AMP Protection |
| RECOMMENDED CHARGE: | 100AMP |
| DIMENSIONS: | 482 x 160 x 252 |
| DIMENSIONS (Overall): | 482mm L x 160mm W x 285mm H |
| WEIGHT (KG): | 18kg |
| OPERATING TEMP: | 0°C – 60°C |

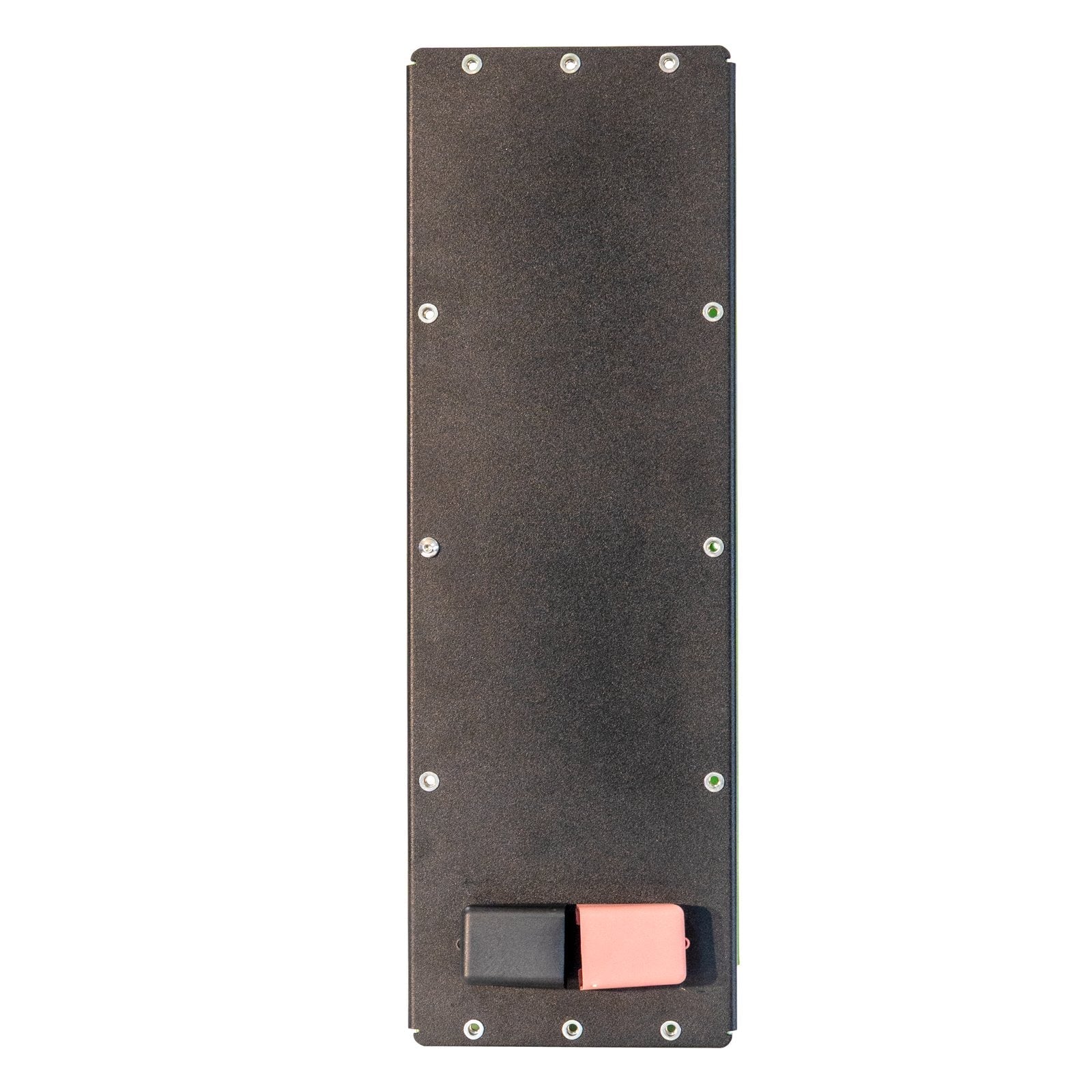

| TERMINALS: | M8 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |

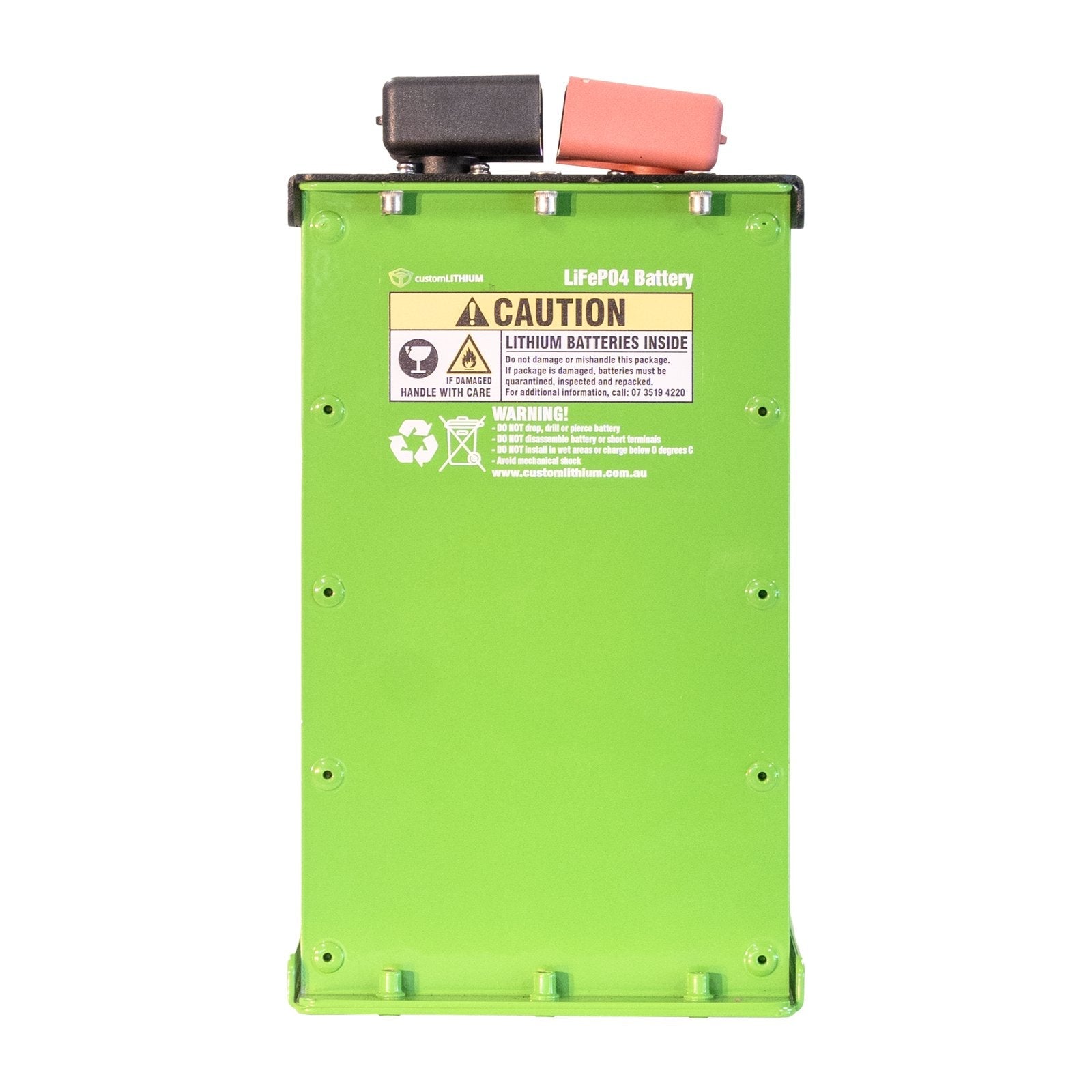

| CASING: | Precision-engineered aluminium with rivnut fasteners |

Custom Lithium 200Ah NextGen Slim Lithium Battery FAQs
1. What can the Custom Lithium 200Ah NextGen Slim Lithium Battery be used for?
The 200Ah NextGen Slim Lithium Battery is designed for 4WDs, caravans, canopies and off-grid power systems where installation space is limited. Its 200Ah capacity and high-discharge capability make it suitable for running equipment such as fridges, lighting, inverters, computers, air compressors and other 12V accessories.
2. Does the battery require assembly or professional installation?
The battery itself does not require assembly and features rivnut fasteners to make secure mounting easier. It should be installed in accordance with the manufacturer's mounting instructions and connected using appropriately rated cabling, fuses and charging equipment. For more complex 4WD, caravan or inverter installations, professional installation is recommended.
3. What safety features does the 200Ah NextGen Slim Lithium Battery have?
The battery uses premium A-grade automotive LiFePO4 cells along with a high-current Battery Management System (BMS) and active cell balancing. The BMS helps protect the battery against conditions such as overheating and over-discharge, while the flame-resistant internals and durable aluminium enclosure are designed for demanding Australian conditions.
4. What warranty is included with the Custom Lithium 200Ah NextGen Slim Lithium Battery?
The battery is backed by a 7-year warranty and lifetime customer support. Each battery is also individually bench-tested before use. Warranty coverage is subject to the manufacturer's terms and conditions, so correct installation, charging and operation are important for maintaining warranty eligibility.
