Custom Lithium 200Ah Dual Terminal Lithium Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Two Terminal Pairs, One Battery, The Custom Lithium 200Ah Dual Terminal
Anyone who has built a 12V system knows the terminal gets crowded fast. Inverter cable, DC-DC charger, fuse block, solar controller, all stacked onto one post, which is messy, hard to service and a genuine failure point. The 200Ah Dual Terminal gives you a second set of posts so you can split the heavy loads from the light ones and keep the whole install tidy. 330 amps of continuous discharge in a 123mm-wide case, with A-grade automotive LiFePO4 cells and BMS protection. Made in Australia.
A cleaner install from the start. Order yours today!

Why The Custom Lithium 200Ah Dual Terminal Lithium Battery May Be Right For You:
- Enjoy a tidy install from day one with a second set of posts, which lets you run the inverter off its own terminals instead of stacking heavy cable on top of your fuse block feed.
- Turn servicing into a ten-minute job rather than an afternoon, because you can disconnect one circuit at a time without dismantling the entire terminal to get at it.
- Run the inverter, the induction cooker and the fridge together without anything tripping out, thanks to 330 amps of continuous discharge and up to 1600 amps of peak protection.
- Slide it into a canopy or caravan cavity that wouldn't take a conventional battery of this capacity, because the case is only 123mm wide.
- Refill it properly between camps on a 100 amp charge rate, so your DC-DC charger does the work while you're driving.
- Back a local business while you're at it, because every Custom Lithium battery is built here in Australia and bench-tested individually before it ships.

Custom Lithium 200Ah Dual Terminal Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 200Ah Dual Terminal Lithium Battery Tech Specs
| CAPACITY: | 200AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | 330 AMP |
| PEAK DISCHARGE: | 1060A - 1600AMP Protection |
| RECOMMENDED CHARGE: | 100AMP |
| DIMENSIONS: | 510 x 123 x 320 |
| DIMENSIONS (Overall): | 510mm L x 123mm W x 335mm H |
| WEIGHT (KG): | 23kg |
| OPERATING TEMP: | 0°C – 65°C |

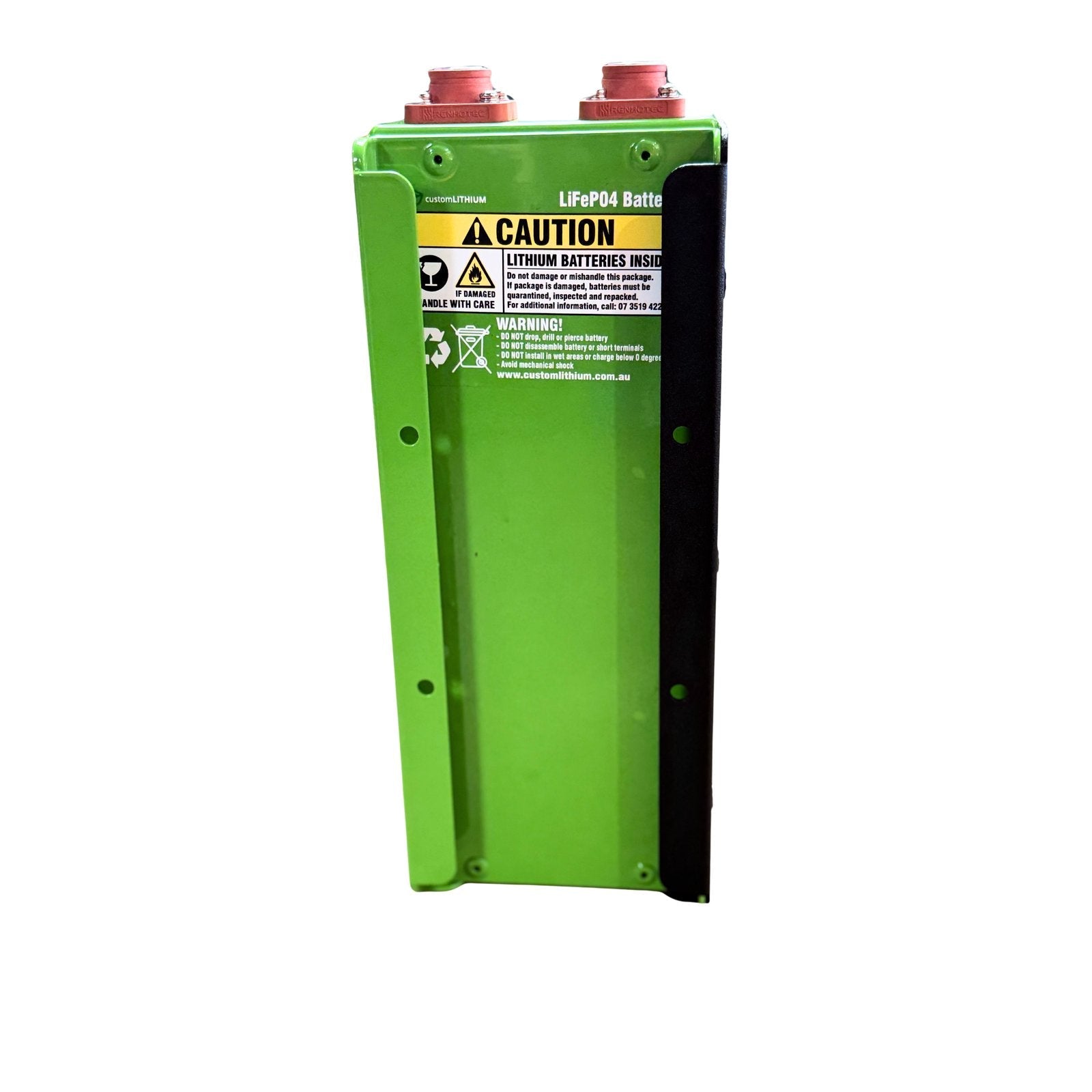

| TERMINALS: | M8 terminals, dual sets |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |

Custom Lithium 200Ah Dual Terminal Lithium Battery FAQs
1. What is the Custom Lithium Dual Terminal 200Ah Battery designed for?
The 200Ah lithium battery is designed for 4WDs, caravans, canopies and off-grid power systems where space is limited. Its slim profile and high-discharge capability make it suitable for powering fridges, lighting, inverters, Starlink, computers, air compressors and other 12V equipment.
2. Is the Dual Terminal 200Ah Lithium Battery easy to install?
The battery features a rugged aluminium enclosure with rivnut fasteners to make secure mounting easier in different installations. It uses M8 terminals and should be installed with correctly sized cables, fuses and lithium-compatible charging equipment. Professional installation is recommended where required.
3. What safety features does the 200Ah lithium battery have?
It uses A-grade automotive LiFePO4 cells, flame-resistant internal components, a high-current BMS and an active balancer. The BMS helps protect the battery against conditions such as overheating and over-discharge, while the active balancer helps maintain the individual cells for reliable performance.
4. What warranty comes with the Custom Lithium Dual Terminal 200Ah Battery?
The battery is backed by a 7-year warranty. Warranty coverage is subject to the manufacturer's terms and conditions, so the battery should be correctly installed, charged with compatible equipment and operated within its specified limits to maintain warranty coverage.
