Custom Lithium 200Ah Compact Lithium Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Double The Capacity, Same Small Footprint, The Custom Lithium 200Ah Compact
This is the sweet spot for most caravan and camper setups. 200Ah is enough to run a fridge, lights, a water pump and a 240V inverter for several days off-grid without constantly watching the voltmeter, and the Compact case keeps it to 265mm long so it still drops into a standard battery bay. 330 amps of continuous discharge means you can draw hard without the BMS backing off. A-grade automotive LiFePO4 cells, BMS protection, built right here in Australia.
The capacity most people actually need. Order yours today!

Why The Custom Lithium 200Ah Compact Lithium Battery May Be Right For You:
- Run the inverter, the induction cooker and the fridge all at once without anything tripping out, because 330 amps of continuous discharge and up to 1600 amps of peak protection means you stop choosing what to turn off.
- Drop it straight into the bay you've already got, at 265 x 190 x 250mm it's shaped like the battery you're replacing, so there's no rebuild, no fabrication and no nasty surprise when you go to fit it.
- Stay out for days rather than nights with 200Ah behind you, which is the capacity most caravan, camper and canopy builds settle on once they've worked out what they actually use.
- Get back to full on a single leg between camps thanks to a 100 amp charge rate, so a decent DC-DC charger does the work while you drive instead of trickling away for days.
- Forget about the corrugations altogether, A-grade automotive LiFePO4 cells, BMS protection and vibration-insulated internals mean the road doesn't shake it to pieces.
- Back a local business while you're at it, because every Custom Lithium battery is built here in Australia and bench-tested individually before it ships.

Custom Lithium 200Ah Compact Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 200Ah Compact Lithium Battery Tech Specs
| CAPACITY: | 200AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | Continuous 330AMPs |
| PEAK DISCHARGE: | 1060A - 1600AMP Protection |
| RECOMMENDED CHARGE: | 100AMP Standard |
| DIMENSIONS: | 265 x 190 x 250 |
| DIMENSIONS (Overall): | 265mm L x 190mm W x 275mm H |
| WEIGHT (KG): | 18kg |
| OPERATING TEMP: | 0°C – 65°C |

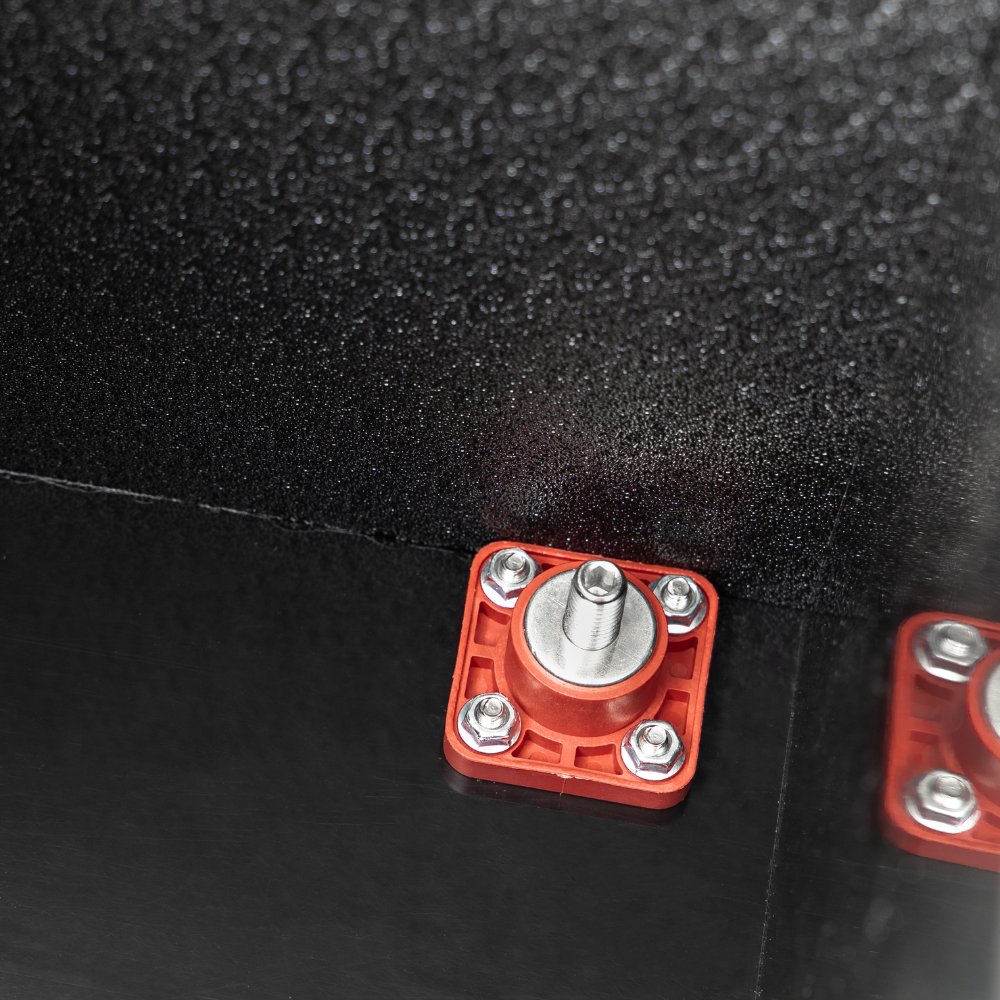

| TERMINALS: | M8 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |

Custom Lithium 200Ah Compact Lithium Battery FAQs
1. What is the Custom Lithium 200Ah Compact Lithium Battery suitable for?
The 200Ah Compact Lithium Battery is designed for caravans, RVs, 4WDs and off-grid power systems where space is limited. Its 200Ah capacity is well suited to medium-use setups, providing power for equipment such as fridges, lighting, computers and other accessories during off-grid trips.
2. Does the 200Ah Compact Lithium Battery require assembly or professional installation?
The battery itself does not require assembly, but it must be securely mounted and correctly connected to a compatible 12V electrical system. Always follow the recommended mounting orientation and ensure your DC-DC charger, solar controller and other charging equipment support LiFePO4 lithium batteries.
3. What safety features does the battery have?
The battery uses A-grade automotive LiFePO4 cells and incorporates a high-current Battery Management System (BMS) with an active balancer. The BMS provides protection against conditions such as overheating and over-discharge, while the high-strength ABS enclosure helps protect the internal components against vibration during travel.
4. What warranty comes with the Custom Lithium 200Ah Compact Lithium Battery?
The battery is backed by a 7-year warranty. Each battery is also individually bench-tested before use, and Custom Lithium provides lifetime customer support for assistance with the battery and its operation.
