Custom Lithium 100Ah Ultra Slim Lithium Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.

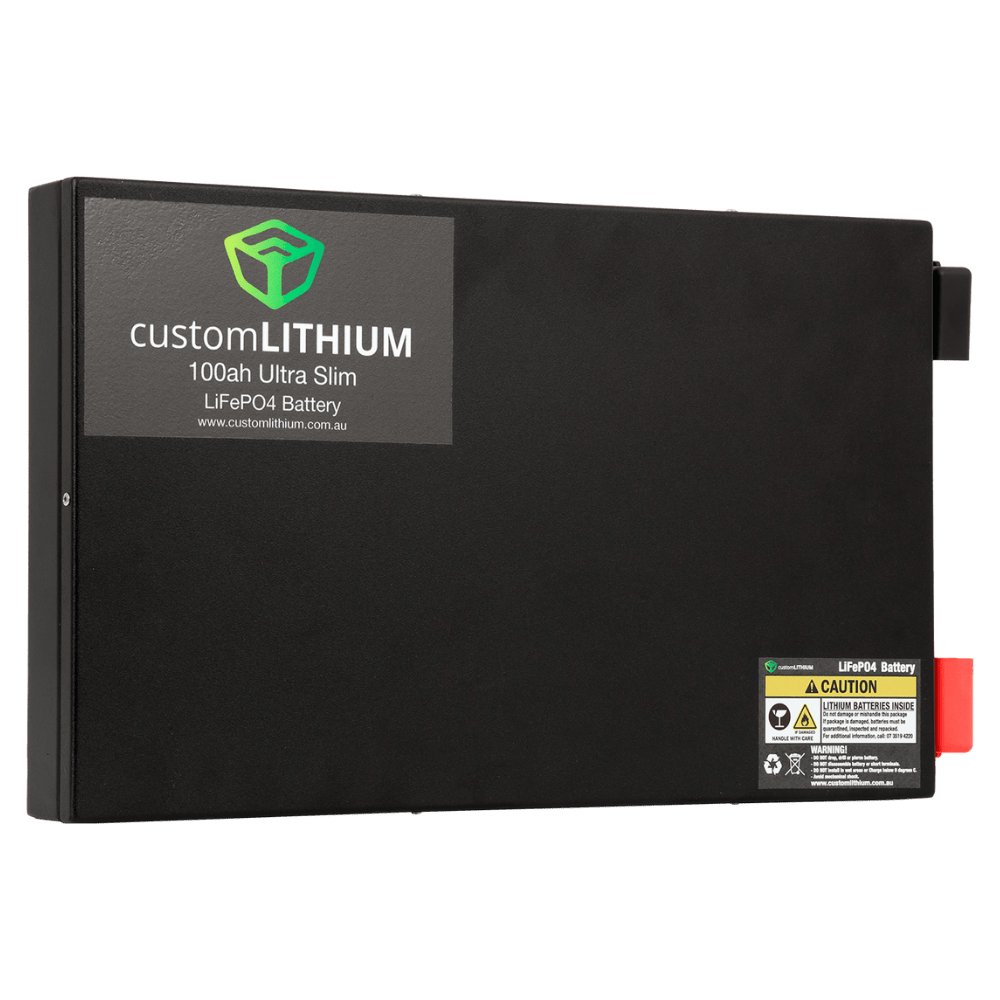

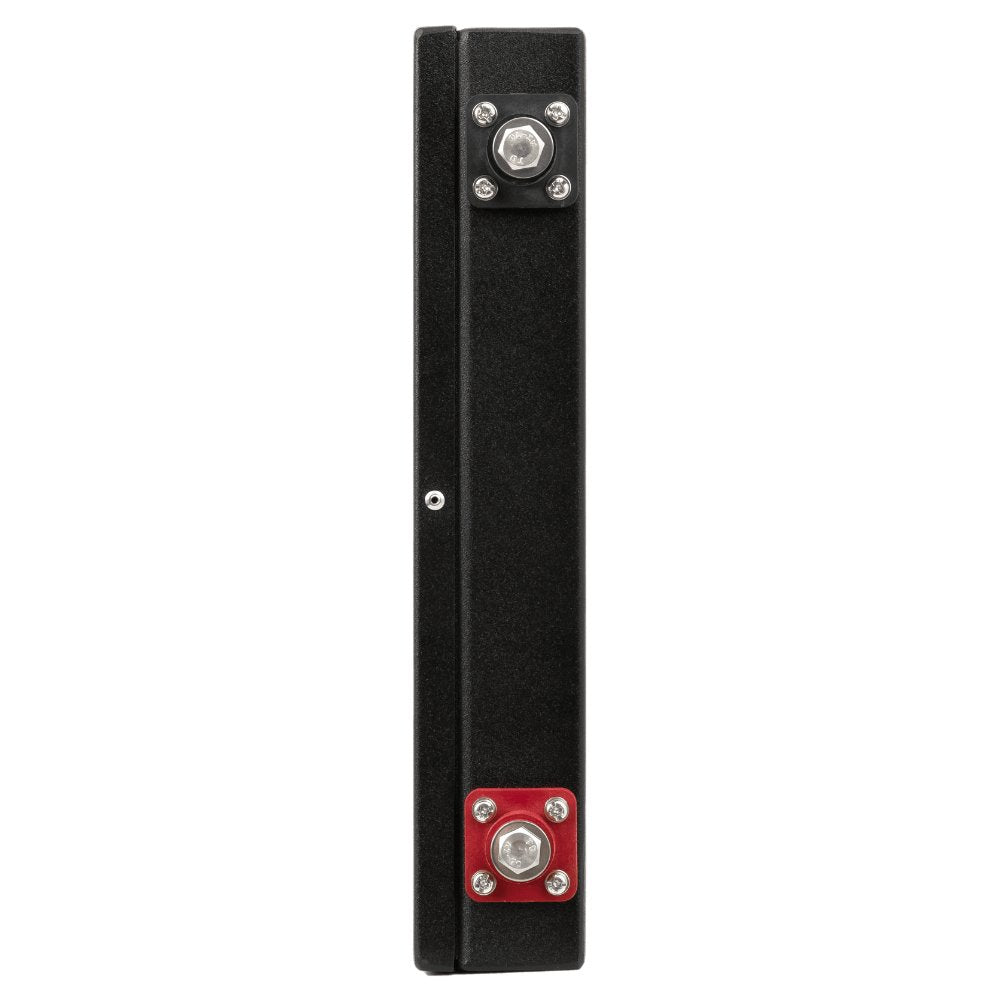

55mm Thin, The Custom Lithium 100Ah Ultra Slim Goes Where Nothing Else Fits
Some builds have no room left at all. Behind the seats of a dual cab, inside a false floor, flat against a canopy wall, these are the spaces where every other battery is simply the wrong shape. At 55mm thick, the 100Ah Ultra Slim slides into them without compromising on power. You still get 180 amps of continuous discharge to run an induction cooker, tools, a fridge and Starlink. It just does it from somewhere you'd forgotten you had.
Reclaim your build space. Order yours today!

Why The Custom Lithium 100Ah Ultra Slim Lithium Battery May Be Right For You:
- Just 55mm thick, it fits behind seats, under false floors and in canopy walls where no conventional battery will go.
- 180 amps continuous discharge with up to 1000 amp peak protection, so thin doesn't mean underpowered.
- Power your induction cooker, tools, fridge, Starlink, 240V inverter, coffee machine and lights without rationing.
- Mounting it flat against a wall or under a floor frees up the cubic space a conventional battery box would have eaten.
- A-grade automotive LiFePO4 cells with BMS protection, and all components insulated against vibration for corrugated roads.
- You're supporting the local economy. All Custom Lithium batteries are made here in Australia and individually bench-tested.

Custom Lithium 100Ah Ultra Slim Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 100Ah Ultra Slim Lithium Battery Tech Specs
| CAPACITY: | 100AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | 180 AMPs |
| PEAK DISCHARGE: | 800A - 1000AMP Protection |
| RECOMMENDED CHARGE: | 50 AMPs |
| DIMENSIONS: | 490mm L x 305mm W x 55mm H |
| DIMENSIONS (Overall): | 530mm L x 305mm W x 55mm H |
| WEIGHT (KG): | 13.5kg |
| OPERATING TEMP: | 0°C – 60°C |

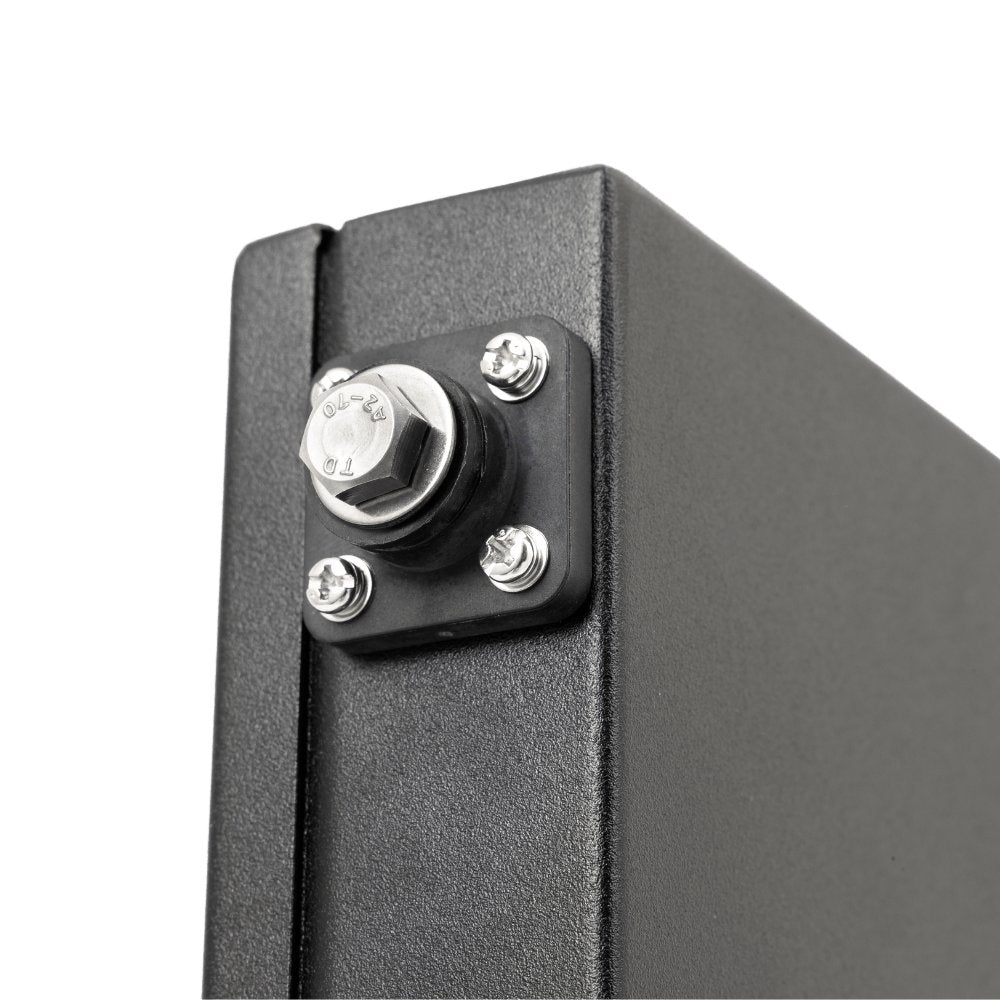

| TERMINALS: | M8 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |

Custom Lithium 100Ah Ultra Slim Lithium Battery FAQs
1. What can the Custom Lithium 100Ah Ultra Slim Lithium Battery be used for?
The 100Ah Ultra Slim Lithium Battery is designed for compact 12V power systems in 4WDs, canopies, caravans and off-grid setups. Its slim design allows installation behind seats, under false floors or within canopy walls, while providing power for equipment such as fridges, lights, Starlink, computers, air compressors and compatible inverters.
2. Does the 100Ah Ultra Slim Lithium Battery require professional installation?
The battery does not require complicated assembly, but it must be securely mounted and connected using appropriately rated wiring, fuses and charging equipment. Always follow the supplied mounting orientation instructions and ensure your DC-DC charger, solar controller or 240V charger is compatible with LiFePO4 batteries and the specified charging voltages.
3. What safety features does the battery have?
The battery uses A-grade automotive LiFePO4 cells and incorporates a high-current BMS and active balancer. The BMS provides protection against conditions including overheating, over-discharge and short circuits, while the aluminium enclosure helps protect the internal cells against vibration during off-road and remote travel.
4. What warranty is included with the Custom Lithium 100Ah Ultra Slim Lithium Battery?
The battery is backed by a 7-year warranty and lifetime customer support. Each battery is also individually bench-tested before supply. Warranty coverage is subject to the manufacturer's warranty terms, so the battery should be installed, charged and operated according to the recommended specifications.
