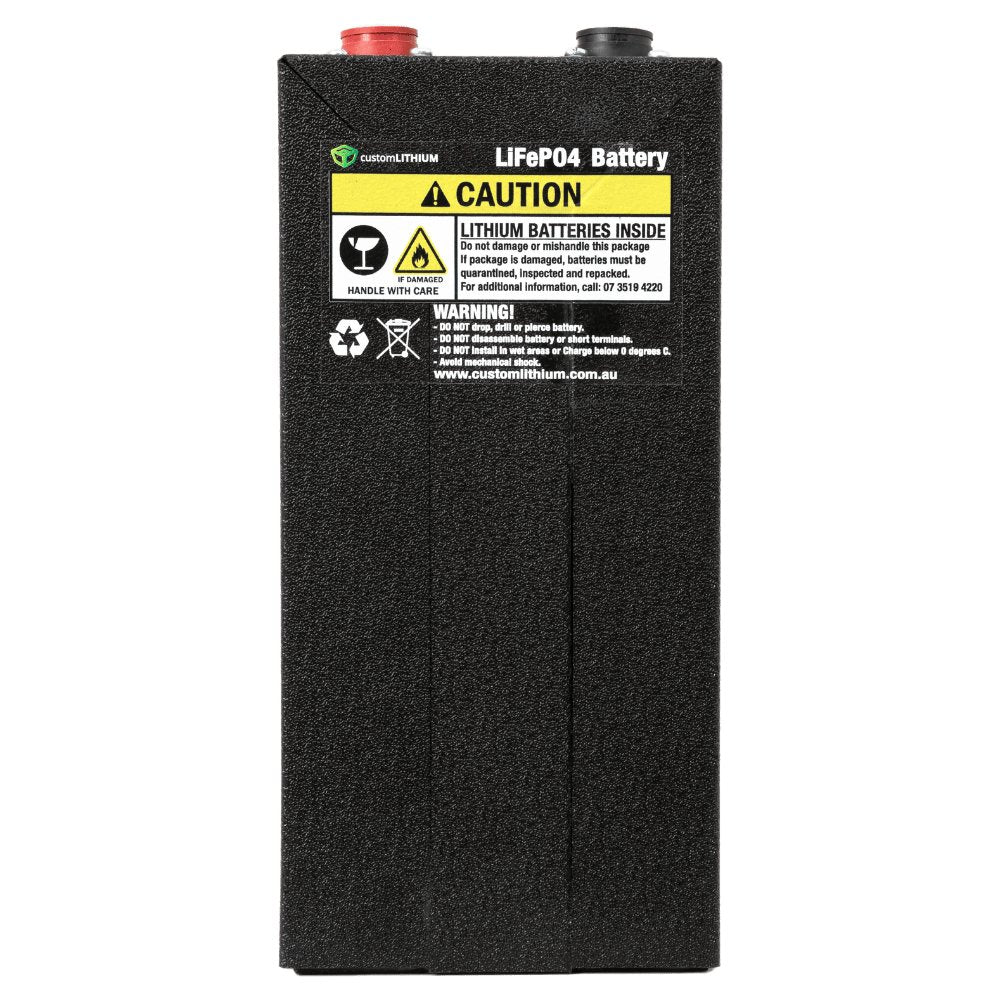

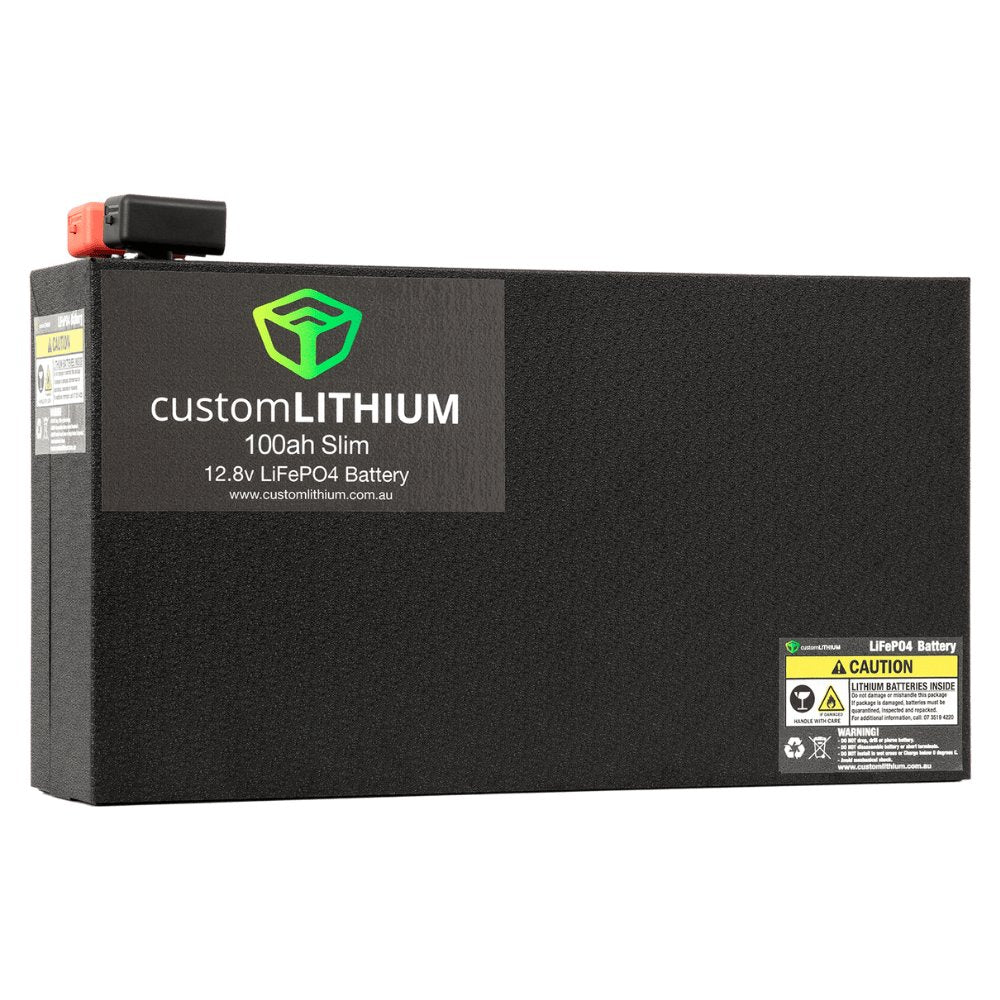

Built For Tight Spaces, The Custom Lithium 100Ah Slim
Canopies, under-seat cavities and caravan lockers all have the same problem: plenty of length, not much width. A standard battery won't go in, and a tray eats what room is left. The 100Ah Slim solves it at 112mm wide, it slides into gaps a conventional battery can't reach, while still giving you 180 amps of continuous discharge to run your 12V accessories and a 240V inverter. At 11 kg it's one of the lightest ways into lithium, and it's built right here in Australia.
Stop working around your battery. Order yours today!

Why The Custom Lithium 100Ah Slim Lithium Battery May Be Right For You:
- At just 112mm wide it fits behind seats, inside canopy walls and under false floors where a conventional battery simply won't go.
- 180 amps continuous discharge with 1000 amp peak protection, enough for a fridge, lights, a water pump and a 240V inverter at the same time.
- 11 kg means one person can lift it into position without help, and it adds far less weight to your build than lead acid.
- Great for 4x4s, caravans and canopies, powering Starlink, induction cookers, air compressors, computers, cameras and lights.
- A-grade automotive LiFePO4 cells with BMS protection, all components insulated against vibration so corrugations don't shake it apart.
- You're supporting the local economy. All Custom Lithium batteries are made here in Australia and individually bench-tested.

Custom Lithium 100Ah Slim Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 100Ah Slim Lithium Battery Tech Specs
| CAPACITY: | 100AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | 180 AMP |
| PEAK DISCHARGE: | 1000AMP Protection |
| RECOMMENDED CHARGE: | 50AMP |
| DIMENSIONS: | 390 x 112 x 202 |
| DIMENSIONS (Overall): | 390mm L x 112mm W x 240mm H |
| WEIGHT (KG): | 11 kg |
| OPERATING TEMP: | 0°C – 60°C |

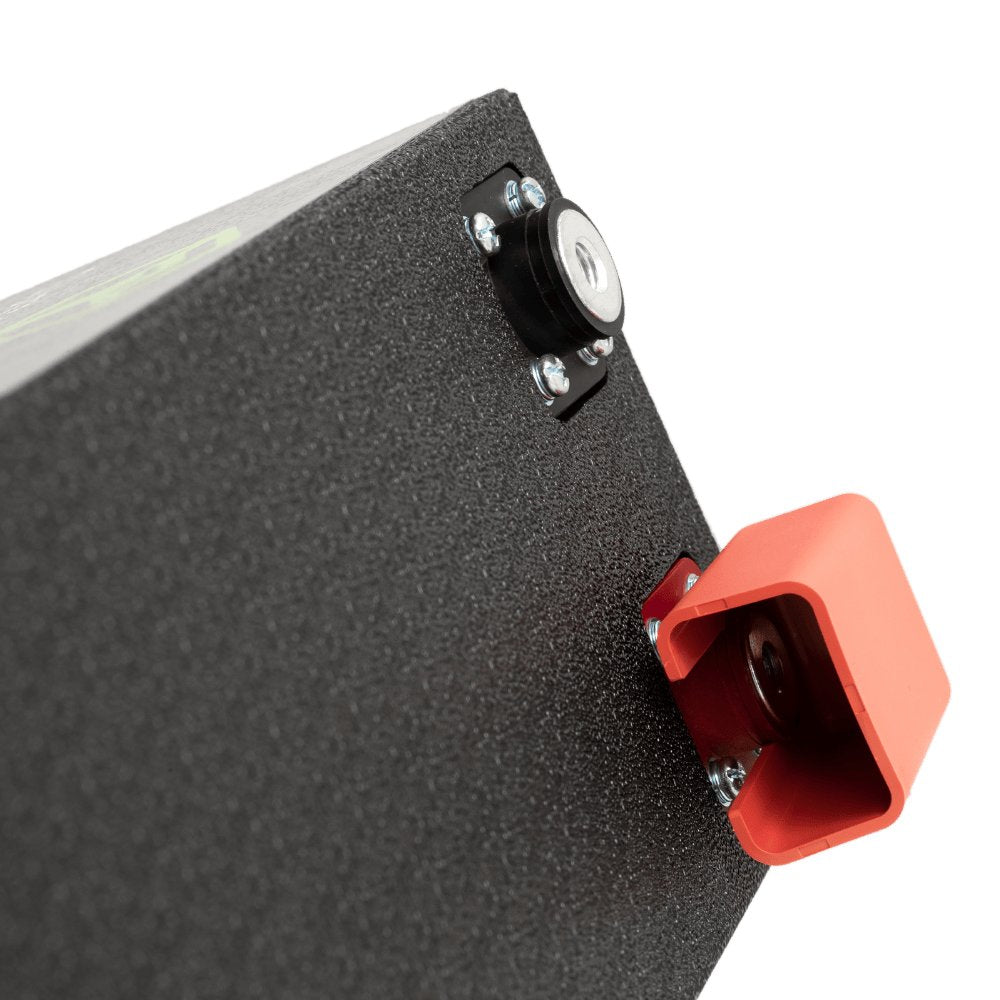

| TERMINALS: | M8 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |

Custom Lithium 100Ah Slim Lithium Battery FAQs
1. What can the Custom Lithium 100Ah Slim Lithium Battery be used for?
The 100Ah Slim Lithium Battery is designed for compact 12V power systems in 4WDs, caravans and canopy setups. Its high-discharge capability makes it suitable for running accessories such as fridges, lighting, computers, air compressors and compatible 240V inverters.
2. Does the 100Ah Slim Lithium Battery require assembly or professional installation?
The battery itself does not require assembly, but it must be securely mounted and correctly connected to your electrical system using suitable cabling, fuses and charging equipment. Always follow the supplied mounting instructions and ensure your charger is compatible with LiFePO4 batteries. The recommended charging voltage is 14.2–14.6V, with an absorption/float voltage of 13.4–13.6V.
3. What safety features does the Custom Lithium 100Ah Slim Battery have?
The battery uses premium A-grade automotive LiFePO4 cells and incorporates a high-current Battery Management System (BMS) and active balancer. The BMS helps protect the battery against conditions including overheating, over-discharge and short circuits, while the active balancer helps maintain balanced cell performance.
4. What warranty comes with the Custom Lithium 100Ah Slim Lithium Battery?
The Custom Lithium 100Ah Slim Lithium Battery is backed by a 7-year warranty. Each battery is also individually bench-tested before sale, and Custom Lithium states that lifetime customer support is available for its batteries. Warranty coverage is subject to the manufacturer's applicable warranty terms and conditions.
