The Amptron Type C Tray - A Bigger Battery Needs A Better Mount
A 200Ah Classic carries real weight, and weight that isn't held down properly is weight that works against you on every corrugation. Terminals loosen, cables chafe, and an expensive battery wears out years early.
This tray is built for the Amptron 12V 200Ah and 24V 100Ah Classic batteries, so the extra bulk sits in there properly instead of being strapped down and hoped for. Powder-coated aluminium, a thick silicone base pad, and two heavy-duty locking straps over the top.
Do it once and do it right. Add one to your cart today.
Why The Amptron Mounting Tray May Be Right For You:
- Hold a heavier battery properly with a tray built around the 200Ah Classic footprint, so the extra bulk doesn't compromise how well it's held.
- Protect your terminals and cables thanks to the thick silicone base pad, which absorbs vibration and impact rather than passing it into the connections.
- Strap it down for good using two heavy-duty flexible locking straps, which hold far better than a bungee or something improvised.
- Keep the weight down at 2.55kg including the silicone pad, which matters when the battery itself is already heavy.
- Leave it where it cops the weather because the powder coating resists corrosion and dust, so it still looks right after a few seasons out bush.
- Cover three batteries with one tray since it suits the 12V 200Ah BluEdge, the 12V 200Ah Classic and the 24V 100Ah, which helps if you're changing setups later.

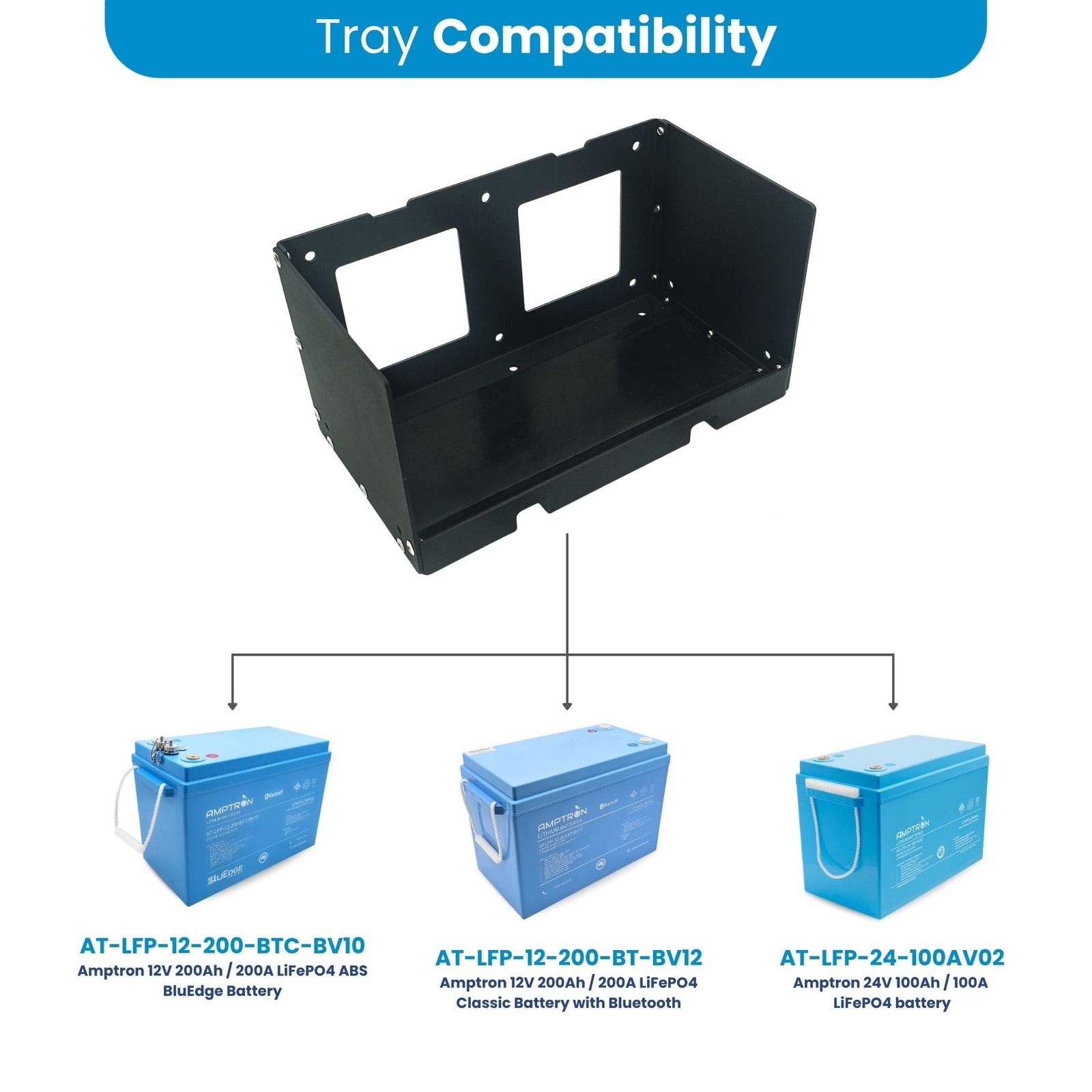

Which Batteries It Fits:
- AT-LFP-12-200-BTC-BV10, Amptron 12V 200Ah / 200A LiFePO4 ABS BluEdge
- AT-LFP-12-200-BT-BV12, Amptron 12V 200Ah / 200A LiFePO4 Classic with Bluetooth
- AT-LFP-24-100AV02, Amptron 24V 100Ah / 100A LiFePO4
Where It Suits:
- Under rear seats in 4WDs
- Dual cab and single cab ute trays
- Caravans and motorhomes
- Camper trailers
- Canopies and touring builds
- Commercial and fleet vehicles
- Any job needing a secure battery mount

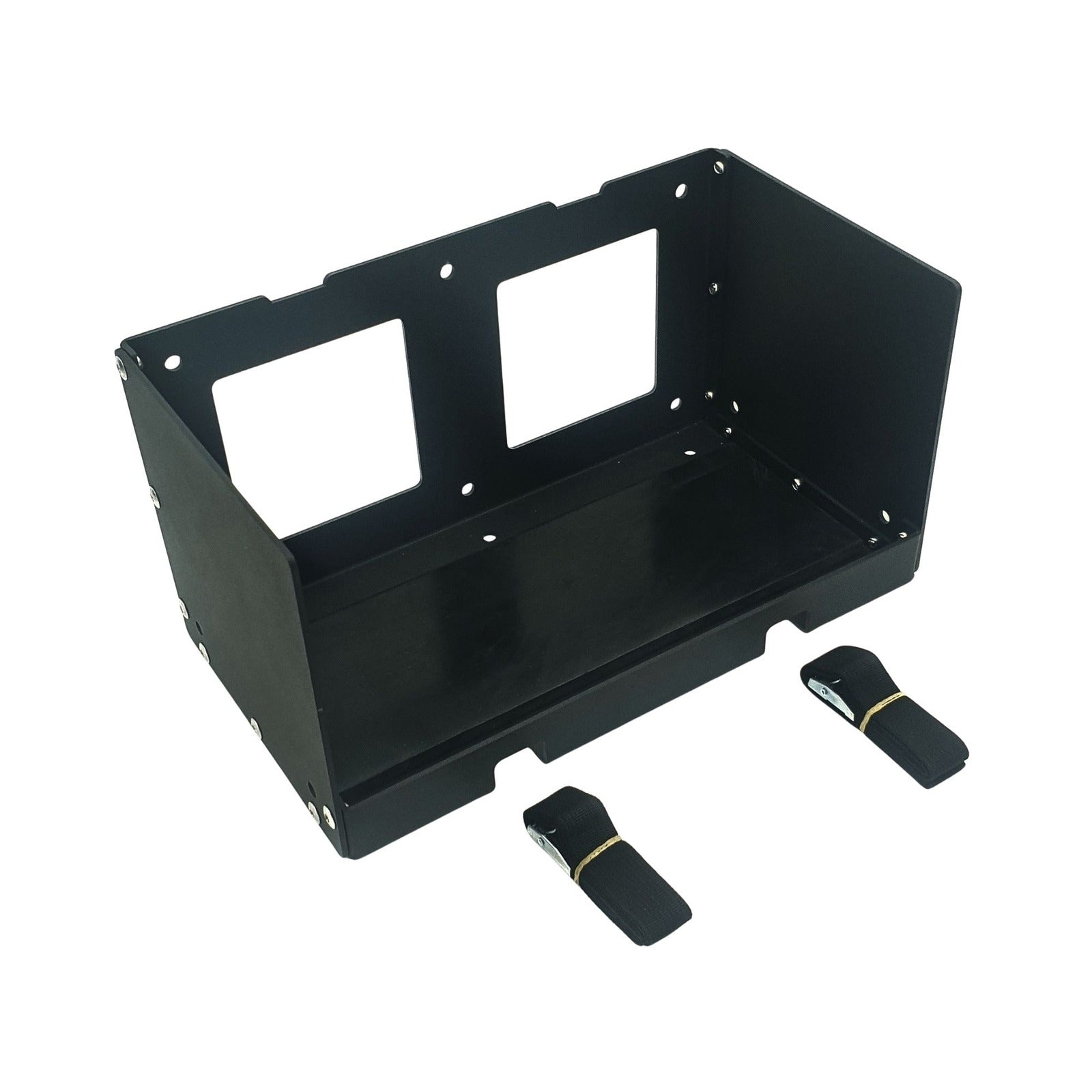

What's In The Box:
- 1 x Amptron aluminium mounting tray
- 2 x flexible locking straps
- 1 x silicone shock-absorbing base pad
Amptron Mounting Tray Tech Specs
| MODEL: | Type C |
| SKU: | AT-UMT-C |
| MATERIAL: | Powder coated aluminium |

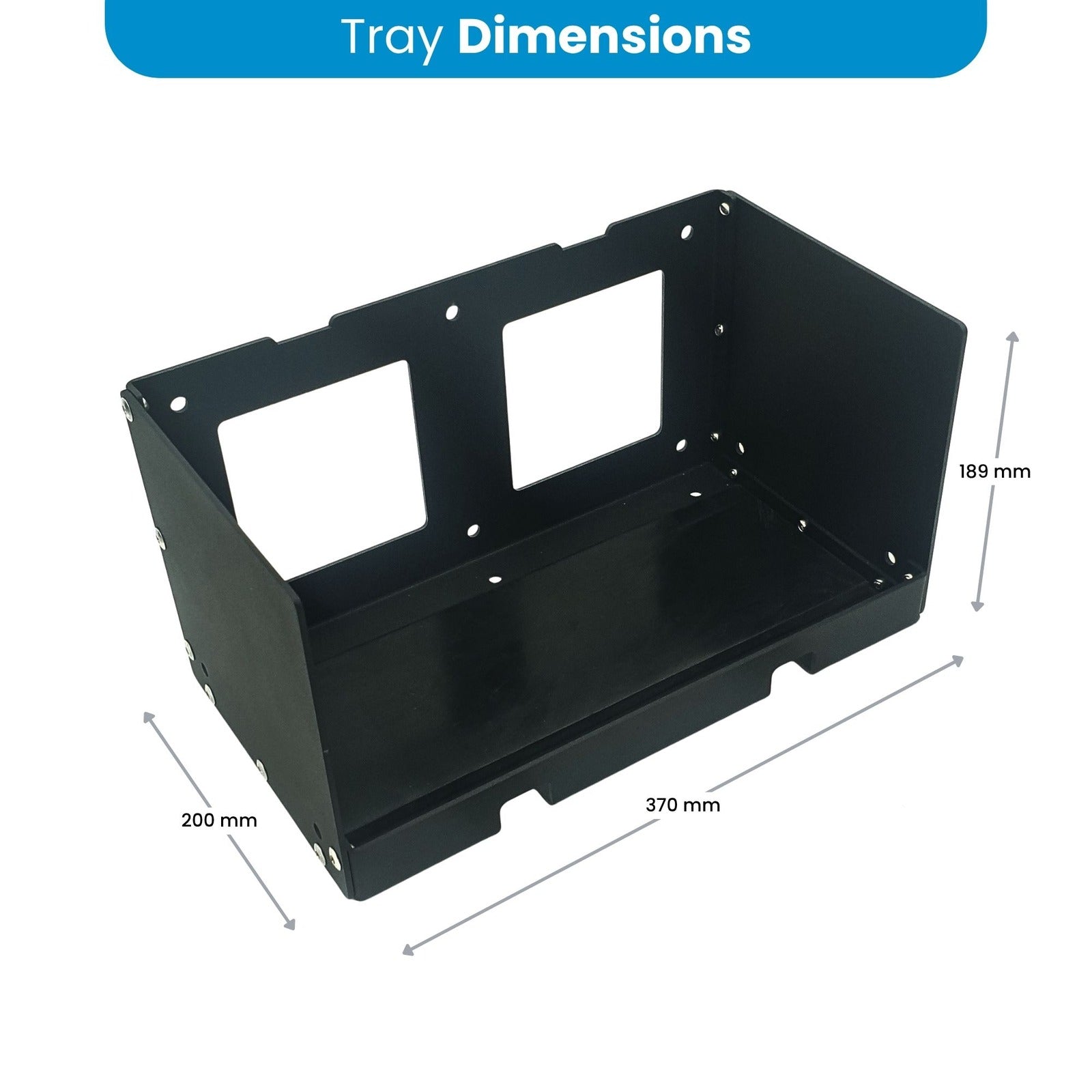

| TRAY DIMENSIONS (L x W x H): | 370 x 200 x 189 mm |
| WEIGHT: | 2.55 kg including the silicone pad |
| BASE PAD: | Thick silicone shock-absorbing pad |
| LOCKING MECHANISM: | 2 x flexible locking straps |
| FINISH: | Powder coated, corrosion and dust resistant |
| COMPATIBLE BATTERIES: | Amptron 12V 200Ah and 24V 100Ah Classic (AT-LFP-12-200-BTC-BV10, AT-LFP-12-200-BT-BV12, AT-LFP-24-100AV02) |
| RECOMMENDED APPLICATIONS: | 4WD rear seat, ute tray (dual or single cab), RV and caravan, custom installs |
| INSTALLATION: | Self-installation, no professional fitting required |
Amptron Mounting Tray FAQs
1. Which batteries does this tray fit?
Three of them: the 12V 200Ah BluEdge (AT-LFP-12-200-BTC-BV10), the 12V 200Ah Classic with Bluetooth (AT-LFP-12-200-BT-BV12) and the 24V 100Ah (AT-LFP-24-100AV02). Tray dimensions are 370 x 200 x 189mm, so another battery may fit if it sits inside those measurements. Ring us on 1300 902 361 if you want it checked.
2. Will it fit a 100Ah battery?
No, it's too big. A smaller battery rattling about in an oversized tray is no better than no tray at all. The 100Ah Compact Classic and the 100Ah Slimline each have their own tray sized to suit.
3. Do I need an auto electrician to fit it?
Not for the tray, that's a self-installation job. Wiring the battery is another matter, so if you're doing the electrical side as well, leave that to someone qualified.
4. Why does a bigger battery need a tray more than a small one?
Because mass and momentum work against you. A 200Ah battery carries considerably more weight than a 100Ah, so every bump puts more force through the mounting and the terminals. The silicone pad and two straps are what keep that under control.
