Amptron Mounting Tray For 12V 100Ah Slimline BluEdge Battery
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Keep Your Slimline Battery Where You Put It With The Amptron Type B Tray
A loose battery undoes everything good about choosing a slim one. Rattling around behind a seat or sliding about on a ute tray wrecks terminals, chafes cables and puts strain on connections that were never meant to take it.

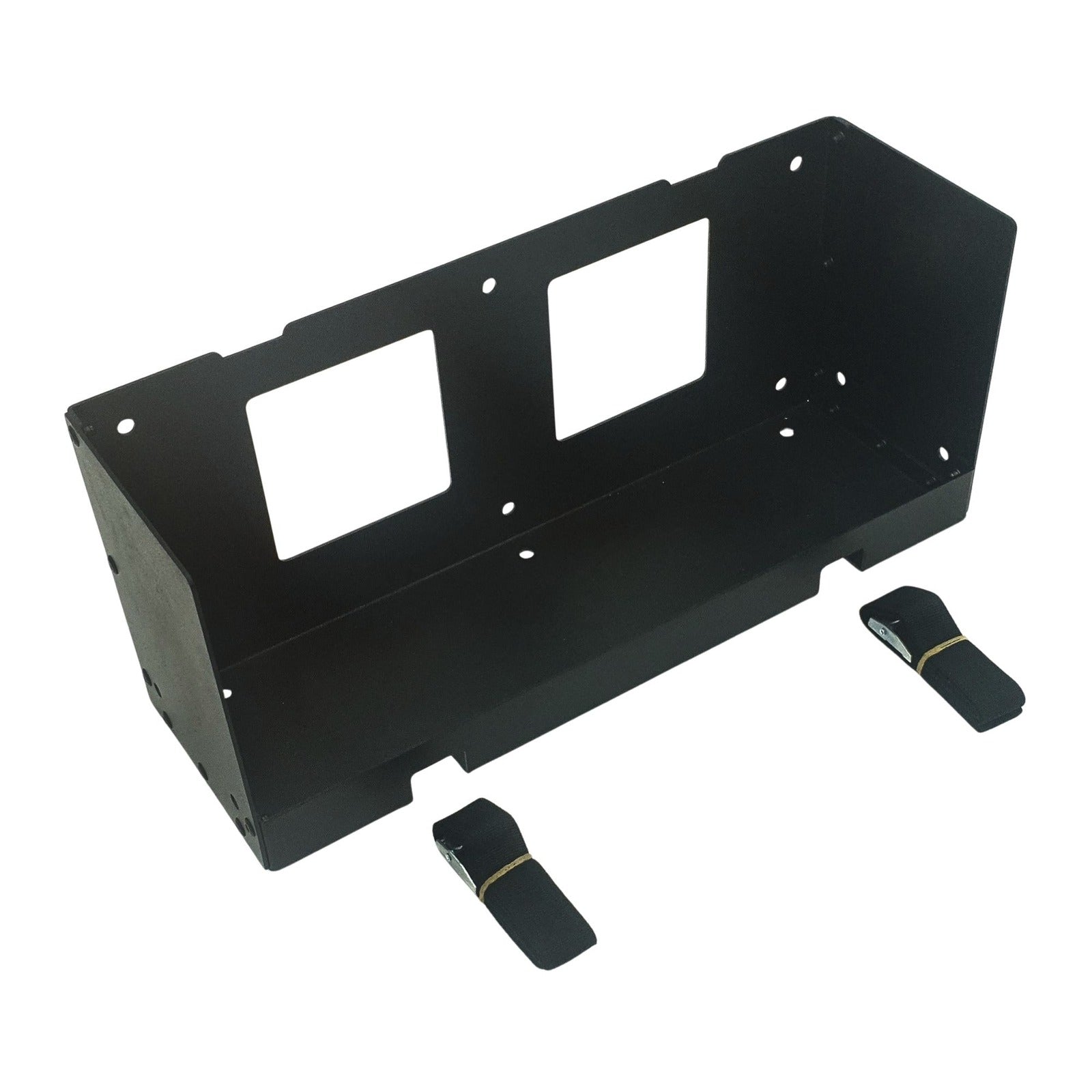

This tray is built to match the Amptron 12V 100Ah Slimline BluEdge exactly, so the battery sits in there properly rather than wedged in with foam and hope. Powder-coated aluminium, a thick silicone base pad to soak up the corrugations, and two heavy-duty locking straps to hold it all down.
Mount it once and forget about it. Add one to your cart today.
Why The Amptron Mounting Tray May Be Right For You:
- Stop your battery moving at all with a tray purpose-built to the Slimline BluEdge footprint, so there's no slop and nothing to work loose on a rough track.
- Save your terminals and cables thanks to the thick silicone base pad, which soaks up vibration and impact rather than passing it straight into the connections.
- Keep it locked down properly using two heavy-duty flexible straps with buckles, which hold far better than a bungee or a bit of strap off the shelf.
- Add almost no weight to the build at 2.3kg in powder-coated aluminium, which matters when you're already carrying a battery, a fridge and everything else.
- Leave it out in the weather without worry because the powder coating resists corrosion and dust, so it still looks right after a few seasons on the tracks.
- Fit it yourself with no professional installation needed, in a slim profile that matches the battery and doesn't waste space you haven't got.
Where It Suits:
- Under rear seats in 4WDs
- Dual cab and single cab ute trays
- Caravans and motorhomes
- Camper trailers
- Canopies and touring builds
- Commercial and fleet vehicles
- Any job needing a secure, low-profile battery mount
What's In The Box:
- 1 x Amptron aluminium mounting tray

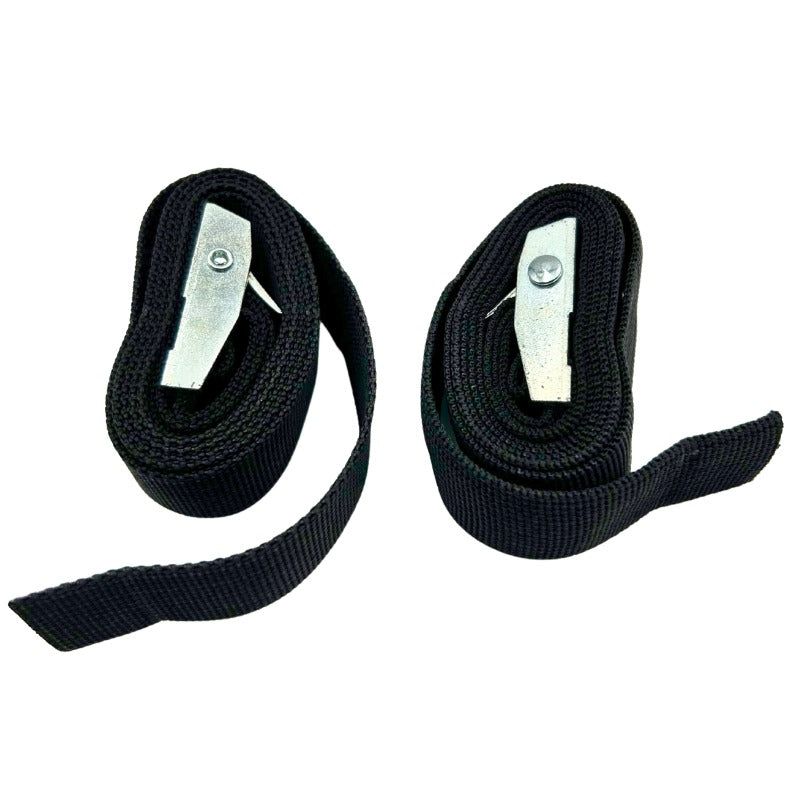

- 2 x mounting straps with buckle
- 1 x rubber base pad
Amptron Mounting Tray Tech Specs
| MODEL: | Type B |
| SKU: | AT-UMT-B |
| MATERIAL: | Powder coated aluminium |
| TRAY DIMENSIONS (L x W x H): | 427 x 135 x 184 mm |
| WEIGHT: | 2.30 kg |
| BASE PAD: | Thick silicone shock-absorbing pad |
| LOCKING MECHANISM: | 2 x flexible locking straps |
| FINISH: | Powder coated, corrosion and dust resistant |

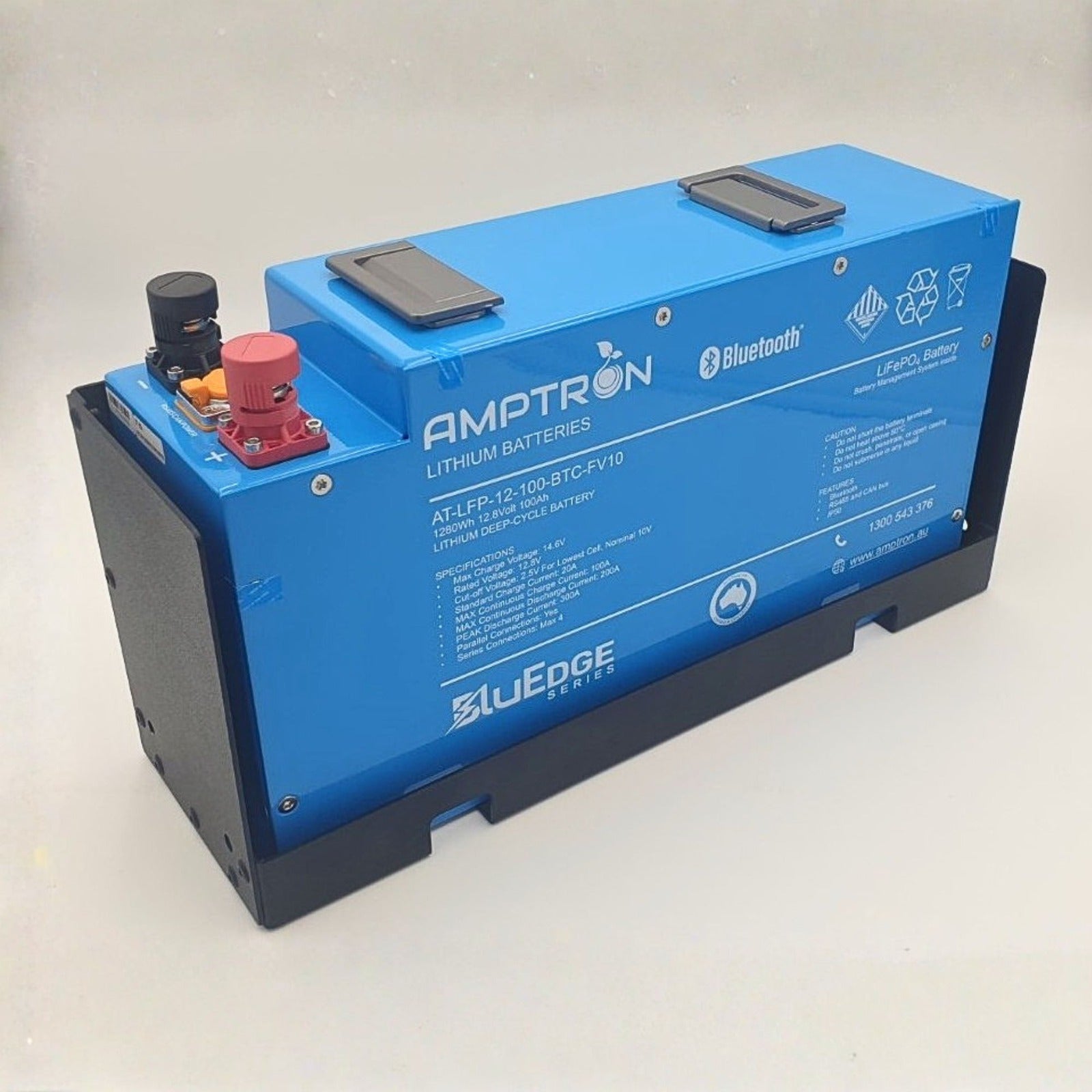

| COMPATIBLE BATTERY: | Amptron 12V 100Ah Slimline BluEdge (AT-LFP-12-100-BTC-FV10) |
| RECOMMENDED APPLICATIONS: | 4WD rear seat, ute tray (dual or single cab), RV and caravan, custom installs |
| INSTALLATION: | Self-installation, no professional fitting required |
Amptron Mounting Tray FAQs
1. Which battery does this tray fit?
It's purpose-built for the Amptron 12V 100Ah Slimline BluEdge, SKU AT-LFP-12-100-BTC-FV10. The internal dimensions are 427 x 135 x 184mm, so another battery may fit if it sits within those measurements, but check yours before ordering. Ring us on 1300 902 361 if you want it confirmed.
2. Do I need an auto electrician to fit it?
No, the tray itself is a self-installation job with no professional fitting required. Wiring the battery up is a different matter, so if you're also doing the electrical side, that's worth leaving to someone qualified.
3. Why bother with a tray at all?
Because a battery that moves is a battery that fails early. Vibration works terminals loose, chafes cables and stresses internal connections. The silicone base pad and two locking straps stop that happening, which is cheap insurance on a battery worth several hundred dollars.
4. Will it handle being mounted outside?
The powder coating is corrosion and dust resistant, so it stands up to the weather better than bare steel. It's designed for ute trays, canopies and under-seat mounts, which all cop their share of dust and damp.
