Amptron PowerUp 3600 Portable Power Station

Amptron PowerUp 3600 — Your Backup Mate for Home or Away!

If you’ve ever been miles from anywhere with a flat battery, a warm fridge, and a grumpy partner, you’ll know just how valuable a bit of power can be.

The Amptron PowerUp 3600 is made for moments like that. It’s a serious bit of kit, tough, portable, and dead quiet, so you can run your camp fridge, charge your phone, or keep the caravan aircon humming without waking the roos.

Forget hauling around jerry cans or listening to that old generator cough and splutter; this is clean, lithium-powered convenience you can rely on. Perfect for caravanners, tradies, grey nomads, or anyone who likes their comforts even when they’re off the beaten track.

No smoke, no smell, no worries — power up your adventures with Amptron 3600 and enjoy life off-grid the easy way.

Why The PowerUp 3600 May Be Right For You:

• Stay powered anywhere – With its portable lithium design, you’ll keep the lights on and the beers cold wherever you park up.

• Enjoy the peace and quiet – The whisper-quiet, zero-emission setup means no noise, no fumes — just clean, calm power.

• Charge up quick – Thanks to fast-charge tech and plug-and-play ease, you’re powered up before your coffee’s gone cold.

• Built tough for Aussie life – The rugged, smart design shrugs off heat, dust, and rough tracks without skipping a beat.

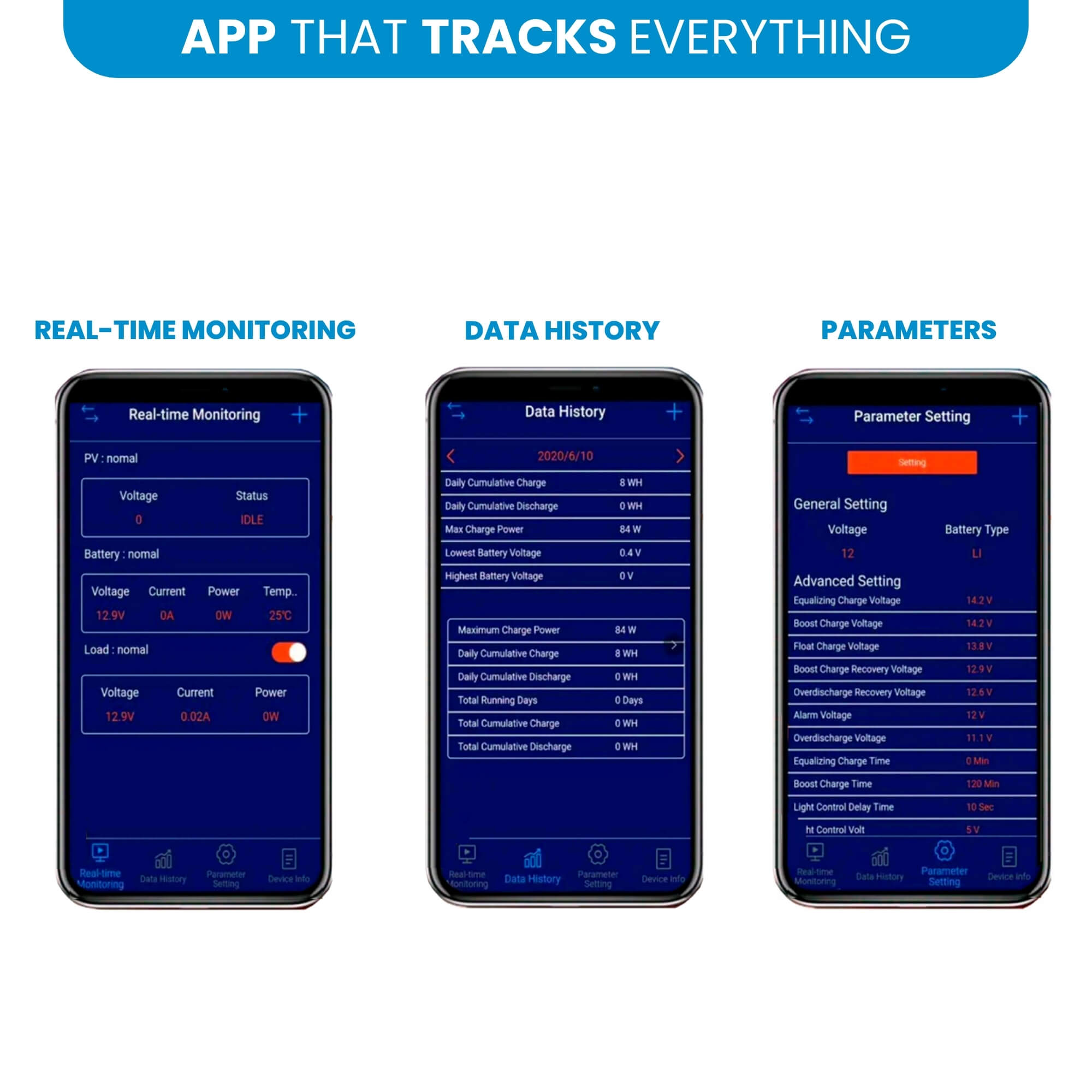

• Know your power – The smart display and simple controls keep you in the loop so you’re never left in the dark.

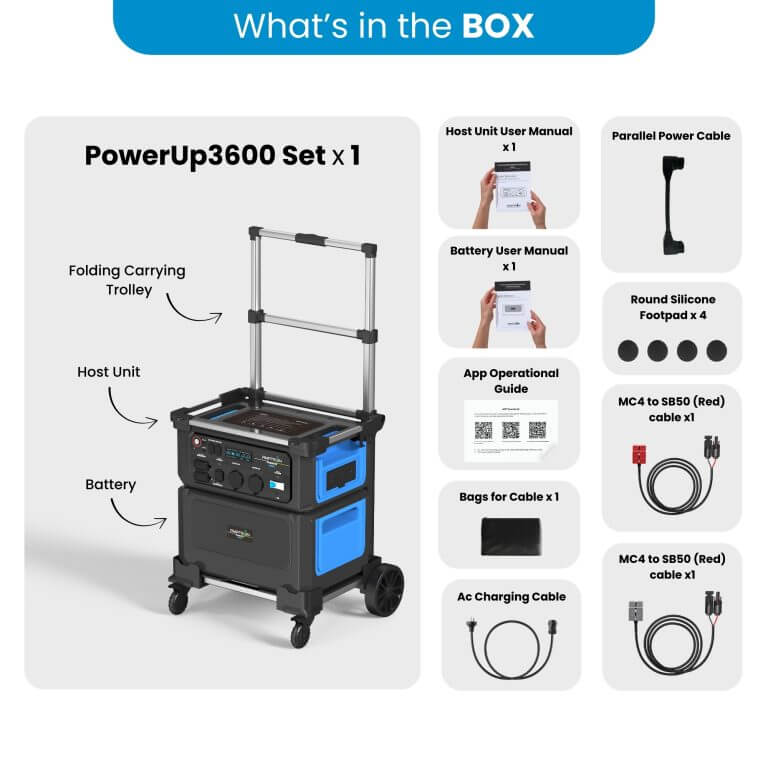

Amptron Power Station Package Contents:

• 1 x Host (Inverter Charger Control Unit)
• 1 x 3072Wh Battery Unit

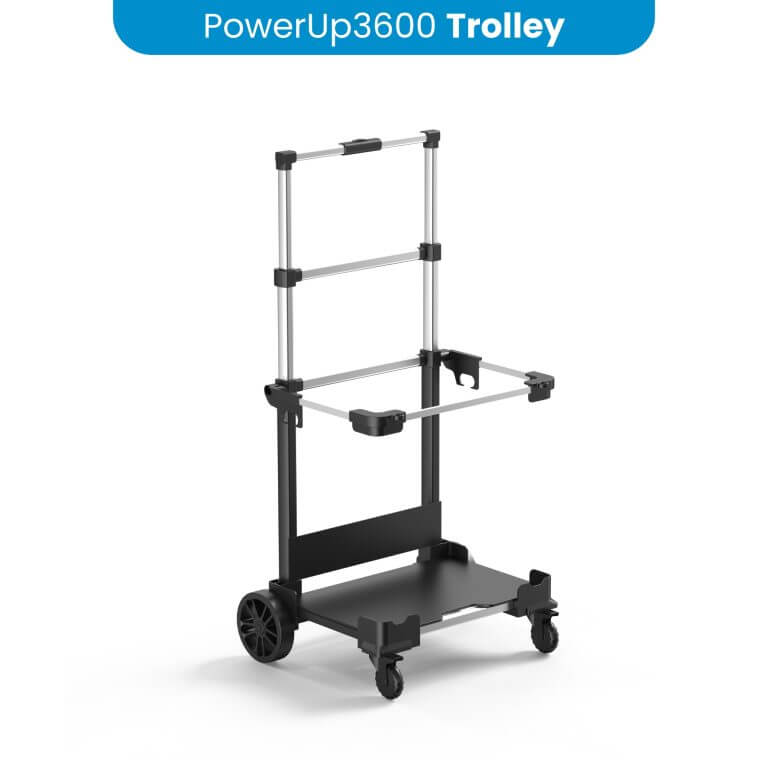

• 1 x Carrying Trolley
• 1 x PowerUp Host User Manual
• 1 x PowerUp Battery User Manual
• 1 x Parallel Power Cable
• 4 x Rounded silicone footpad
• 1 x Cable Bag
• 1 x MC4 to SB50 (Red) Cable
• 1 x MC4 to SB50 (Grey) Cable

PowerUp 3600 Battery Unit User Manual:

PowerUp 3600 Host User Manual:

Amptron PowerUp 3600 – Tech Specs

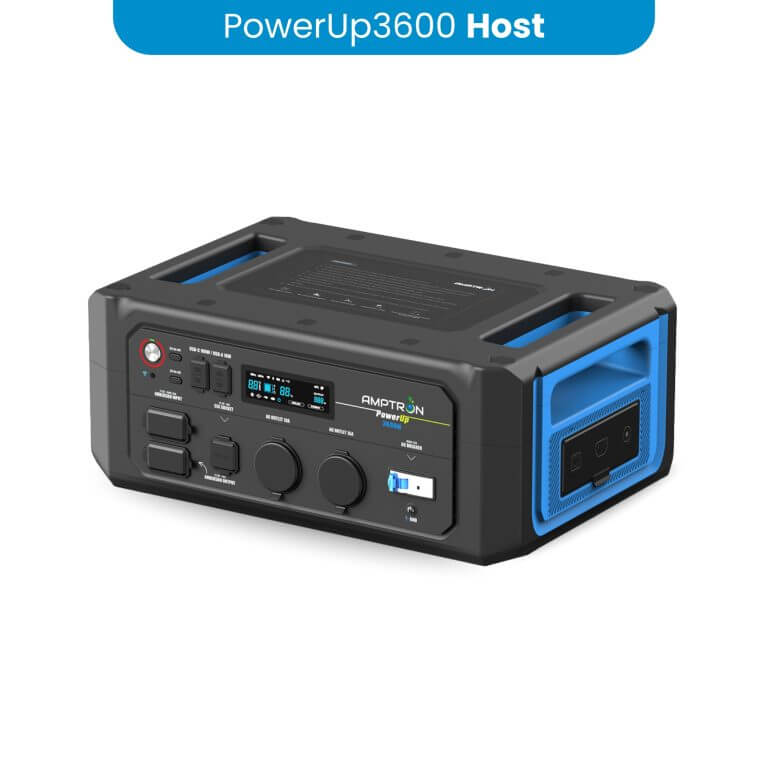

Host Unit

• Model / SKU: AT-PORT-POWERUP3600-SET

• Material: Durable ABS + Polycarbonate body

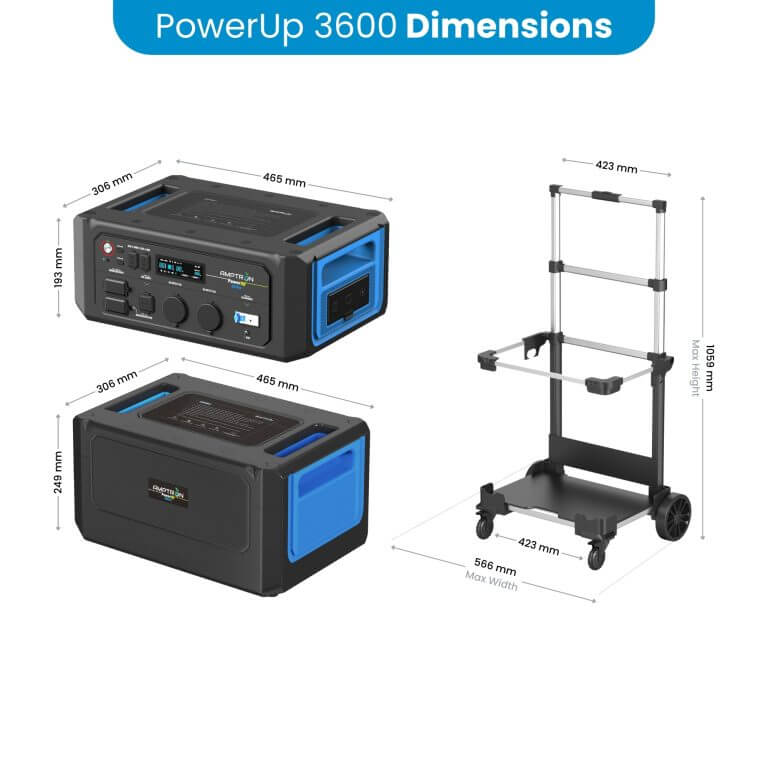

• Size (L × W × H): 465 × 306 × 192 mm

• Weight: 12 kg

• Input Battery Voltage Range: 44.8 – 57.6 V

• Operating Temperature: 0 °C to 45 °C

Power Inputs & Outputs:

• DC MPPT Input: Anderson SB50 Red 11.5 V / 100 V 30 A (Recovery 13.2 V) – Max 1000 W

• AC Input: 200 – 240 V, 10 A (50/60 Hz) – Max 1800 W

Outputs:

• USB A (×2): 5 V 3 A / 9 V 2 A / 12 V 1.5 A (QC 3.0)

• USB C (×2): 5 V / 9 V / 12 V / 15 V / 20 V up to 5 A (Max 100 W PD)

• Cigarette Socket (×1): 12 V 10 A (Max)

• Anderson SB50 Output: 12 V 50 A (Max 600 W)

• AC Output 10 A: 200–240 V / 10 A (50/60 Hz) – Rated 2300 W

• AC Output 15 A: 200–240 V / 15 A (50/60 Hz) – Rated 2450 W

Performance:

• Noise Level: ≤ 65 dB (at ≥ 5 kW load) / ≤ 55 dB (at < 5 kW)

• AC Output Waveform: Pure Sine Wave (Efficiency > 88%)

• AC Protection: CHINT RCBO C25 RCM N136

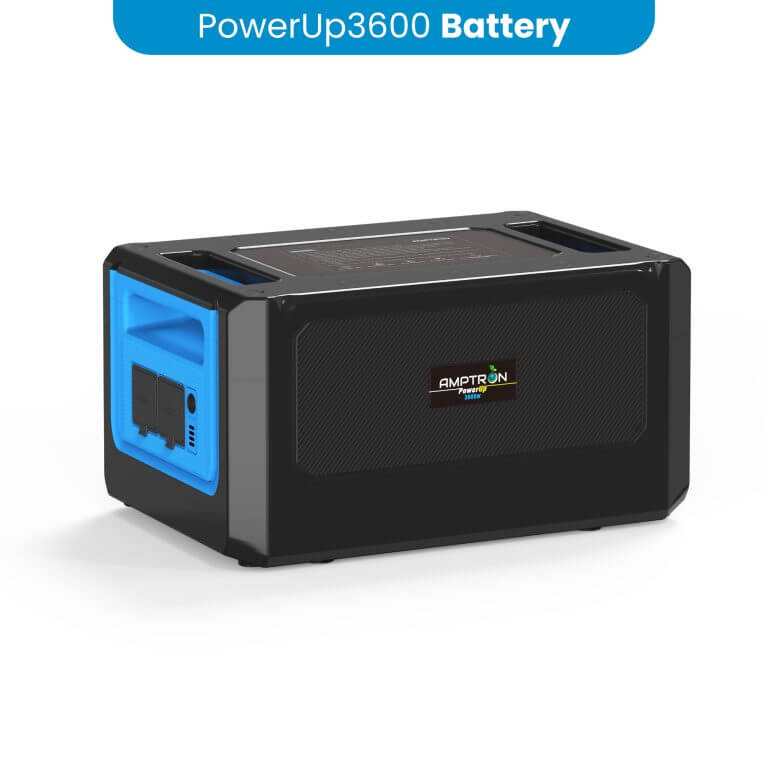

Battery Unit

• Model / SKU: AT-PORT-POWERUP-BATT-3072WH

• Weight: 29 kg

• Rated Capacity: 3072 Wh (51.2 V / 60 Ah)

• Cell Layout: 16S3P

• Voltage: 51.2 V

• Battery Type: LiFePO₄ 40138 Cells

Temperature & Environment:

• Charging Temp: 0 – 45 °C

• Discharging Temp: –20 – 60 °C

• Storage Temp: –10 – 45 °C

• Humidity Range: 20 – 90 % (non-condensing)

• Standby Time: Up to 3 months (recharge every 3 months recommended)

Amptron PowerUp 3600 Portable Power Station FAQs

1. Does the Amptron PowerUp 3600 require assembly or complicated setup?
No complicated assembly is required. The system uses a modular, stackable design with a separate host unit and 3,072Wh battery module. An optional folding trolley can also be used to make the system easier to move. Always follow the supplied user manual when connecting and operating the system for the first time.

2. What can the Amptron PowerUp 3600 be used to power?

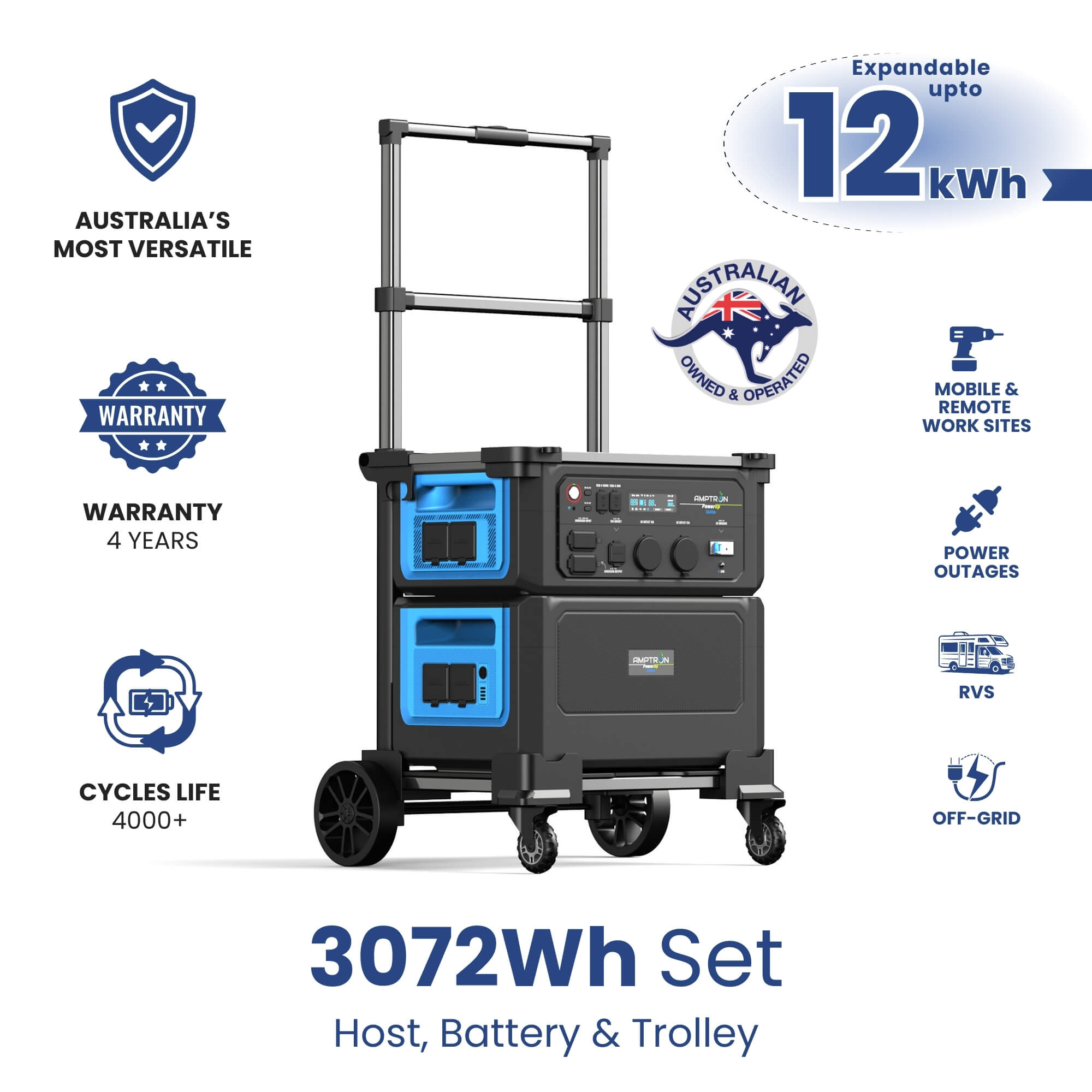

With 3,600W continuous AC output and up to 5,000W peak output, the PowerUp 3600 can run a wide variety of equipment, including fridges, cooking appliances, power tools, caravan equipment, electronics and other compatible devices. Its 3,072Wh battery capacity can also be expanded up to 12,288Wh with additional compatible battery modules for longer runtimes.

3. What safety features does the Amptron PowerUp 3600 have?
The PowerUp 3600 features a built-in RCBO that provides protection against overcurrent and short circuits. It also uses LiFePO₄ battery technology rated for more than 4,000 cycles. Always stay within the specified power limits and operating temperatures and use compatible cables and accessories.

4. What warranty does the Amptron PowerUp 3600 come with?
The PowerUp 3600 is supported by a dedicated manufacturer warranty guide. Warranty conditions can vary by component and usage, so check the supplied warranty documentation for the applicable coverage period and conditions. Keep your proof of purchase and follow the recommended operating, charging and storage instructions to help maintain warranty eligibility.
