Amptron 48V BluEdge 100Ah 100A Lithium Battery

Name: Amptron 48V BluEdge 100Ah 100A Lithium Battery
Brand: Amptron
SKU: AT-LFP-48-100-BTC-AV10
Price: 2679.0 AUD
Availability: InStock

by Amptron

Save $720.00

$3,399.00

$2,679.00

Pick this product up from any of the locations below! Call us on 1300 902 361 for more details.

Port Kennedy, Western Australia 6172
Bellambi, New South Wales 2518

Aussie Owned

Outback gear, backed by Aussies.

Lifetime Support

Bought from us? We’ll support it for the life of the product.

30-Day Returns

Changed your mind? Send it back with no fuss.

Fast Delivery

Get this product in 2–10 business days or claim $100 store credit.

Need Help? Contact Us Now.

1300 902 361 Email

Quantity

Estimated delivery …

This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.

The Amptron 48V 100Ah Lithium Battery Is Built Ultra Tough For Serious Aussie Set-Ups

Needing some serious battery power for your current setup? The AMPTRON 48V 100Ah BluEdge LiFePO4 Battery is your new best mate. Run your high draw power equipment (think electric scooters, golf carts, marine gear) with ease using an Amptron 48V Lithium Battery.

With a rate of 100A continuous discharge rate, this beast packs a punch without hogging half your canopy or under-bunk space. Worried about weight? This battery is lithium, so it’s light, safe, and delivers way more usable power than a lead-acid equivalent.

Alright, that all sounds great but are these going to handle the whatever the harsh Aussie outback throws at it? Yes! Amptron are Aussie owned and operated, therefore their batteries are built to handle rough Aussie conditions with a rugged case and top-tier BMS. The bonus? You get Bluetooth monitoring straight from your phone and CANBUS/RS485 comms for advanced setups. Whether you’re running fridges, inverters or a full touring rig, this battery won’t skip a beat.

Chuck it in your 4WD, caravan, your boat or camper and enjoy reliable, maintenance-free power wherever you pull up stumps. No worries, no dramas, just endless off-grid juice.

Don't let this one slip away, slide your way up the top of the page and add this beauty to your cart today!

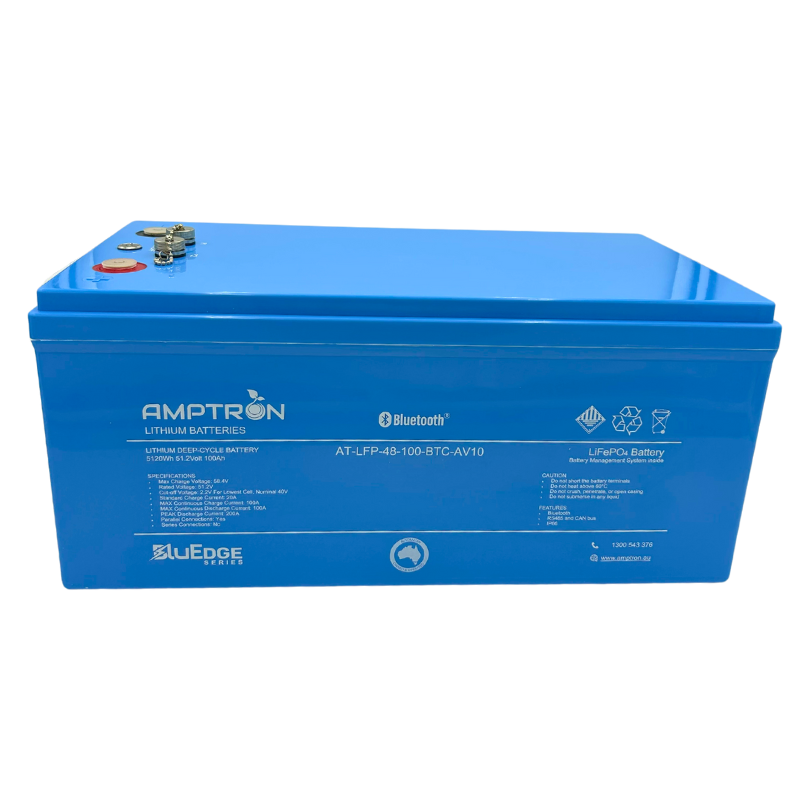

in the image a Amptron 48V BluEdge 100Ah 100A Lithium Battery front in white background

Why The Amptron BluEdge 48V 100Ah Lithium Battery May Be Right For You:

48V Of Battery Power: Need some serious oomph for your setup and your standard 12/24V batteries aren't doing it for you? With 100A of continuous 48V discharge and a peak discharge current of 200A for 2 seconds, you'll never have to second guess your setup. Enjoy the simplicity and efficiency of a 48V setup with smaller wires, lower current levels and faster charger than its 12V counterpart.
Built-in Bluetooth Monitoring: Never guess your battery levels again with built in Bluetooth monitoring right at the tips of your fingers. Stay in control knowing that your batteries health checkup is always just a click away.
Lightweight Small Profile Design (Just 40.5kg): So you've chucked everything in the back of the ute or boat but there's no space for the bloody battery... Don't stress! Amptron Lithium Batteries slot in perfectly just like getting the perfect piece in Tetris. Level up your battery game in style.
Integrated Battery Management System (BMS): Bumpy roads and hot weather got you feeling stressed about the health of your gear? With built in BMS, you can rest easy knowing that your battery is protected against bumps, over-temperature, short circuits, overcharge and over discharge. Enjoy the comfort of knowing that your battery can handle the heat, even if you're getting a little hot under the collar.

Amptron BluEdge 48V 100Ah Lithium Battery User Manual:

Amptron 48V 100a 100ah bluedge lithium battery user manual

The BluEdge series is backed by an Australian based 5-year warranty.

Amptron BluEdge 48V 100A Lithium Battery Tech Specs

General

Model:

AT-LFP-48-100-BTC-AV10

Description:

BluEdge Series, 48V 100Ah / 100A Continuous Discharge Lithium LiFePO4 battery + Bluetooth

Size (L×W×H):

520 x 267 x 229mm

Weight:

40.5kg

Connection Terminals:

Connection Terminal Torque Limit:

6Nm

Outer Casing Material:

ABS

Cell Casing Material:

Nickel plated steel

IP Rating:

IP67

Chemistry:

Lithium Iron Phosphate (LiFePO4)

Cell Type:

Prismatic

Rated Capacity:

100Ah / 5120Wh (at 0.2C)

Battery Packs in Series:

Not Supported

Battery Packs in Parallel:

Supported

Cycle Life:

5000+ cycles (0.2C standard charge/discharge)

Nominal Voltage:

51.2V

Operating Voltage Range:

40V – 58.4V

Shipping Voltage:

49V – 57V

Recommended Charge Voltage:

57.6V

Max Charge Voltage:

58.4V (3.65V per cell)

Cut-off Voltage:

40V / When lowest cell reaches 2.5V

Depth of Discharge (DoD):

100% (Recommended DoD 80%)

Recommended Charge Current:

20A

Charging Time (Recommended):

4–5 Hours

Maximum Charge Current:

100A

Max Continuous Discharge Current:

100A

Peak Discharge Current (2 Seconds):

200A

Internal Resistance:

≤ 20mΩ

Operating Power Consumption:

≤ 25mA

Operating Temperature (Charge):

0°C to 55°C (Ambient)

Operating Temperature (Discharge):

-20°C to 60°C (Ambient)

Storage Temperature (≤ 2 months):

-20°C to 40°C

Storage Temperature (≤ 6 months):

-10°C to 35°C

Recommended Storage Temperature:

20°C ± 5°C

Storage Humidity Range:

10%, 90%

Recommended Storage Charge:

Charge to 53.2V or 40–60% SOC every 6 months

Cell Over Charge Protection:

3.65V ± 0.05V

Cell Over Discharge Protection:

2.5V ± 0.1V

Charging Overcurrent Protection:

105A (8s)

Discharging Overcurrent Protection:

1st: 180A (3.5s), 2nd: 200A (2s)

Short Circuit Protection:

500A (400μs)

High Temp Protection (Discharge/Charge):

60°C ± 5°C

Low Temp Protection (Discharge/Charge):

-10°C ± 5°C / 0°C ± 5°C

Amptron 48V BluEdge 100Ah 100A Lithium Battery FAQs

1. What applications is the Amptron BluEdge 48V 100Ah LiFePO4 Battery suitable for?
The BluEdge 48V 100Ah battery provides 5,120Wh of rated capacity with a 100A continuous discharge current, making it suitable for applications such as off-grid power systems, RVs, marine setups, mobility equipment and industrial systems. Bluetooth, CAN bus and RS485 connectivity also allow integration and battery monitoring.

2. Does the battery require professional installation?
Proper installation is important, particularly when integrating the battery with inverters, chargers or other 48V equipment. The battery uses M8 connection terminals with a specified 6Nm terminal torque limit. Batteries can be connected in parallel where appropriate, but series connection is not supported. Always follow the Amptron user manual and applicable electrical requirements when installing the battery.

3. What safety features are built into the battery?
The integrated Battery Management System (BMS) provides protection against low and high voltage, short circuits, over-current, reverse polarity and excessive temperatures. The battery also features an IP67-rated enclosure, rated against dust ingress and temporary immersion in water.

4. What warranty comes with the Amptron BluEdge 48V 100Ah Battery?
The BluEdge series is backed by an Australian-based 5-year warranty. Amptron also states that this model offers 5,000+ cycles at 100% depth of discharge under its specified test conditions, although an 80% depth of discharge is recommended in the specifications. Warranty claims remain subject to Amptron's warranty terms and conditions.
