Amptron 24V BluEdge 200Ah 200A Lithium Battery

Name: Amptron 24V BluEdge 200Ah 200A Lithium Battery
Brand: Amptron
SKU: AT-LFP-24-200-BTC-BV10
Price: 2899.0 AUD
Availability: InStock

by Amptron

Save $800.00

$3,699.00

$2,899.00

🚚 GREAT SHIPPING RATES: Pay just $49.99 shipping on this bulky product.

💰 SAVE CASH: Call us on 1300 902 361 for an exclusive discount.

🔄 CHANGED YOUR MIND? We offer 30-day returns post purchase.

🛠️ NEED HELP WITH INSTALLATION? Call us for more info.

🤝 WE'RE HERE TO HELP: Call us from Mon-Sat between 8am-9pm AEST.

Quantity

The Amptron 24V 200Ah Lithium Battery Is Built Tough For Tough Aussie Set-Ups

Tight on space but still want a battery with some serious grunt? The AMPTRON 24V 200Ah BluEdge LiFePO4 Battery is your new best mate. With a generous 200A continuous discharge rate, this beast packs a punch without hogging half your canopy or under-bunk space. Worried about weight? This battery is lithium, so it’s light, safe, and delivers way more usable power than a lead-acid equivalent.

Alright, that all sounds great but are these going to handle the whatever the harsh Aussie outback throws at it? Yes! Amptron are Aussie owned and operated, therefore their batteries are built to handle rough Aussie conditions with a rugged case and top-tier BMS. The bonus? You get Bluetooth monitoring straight from your phone and CANBUS/RS485 comms for advanced setups. Whether you’re running fridges, inverters or a full touring rig, this battery won’t skip a beat.

Chuck it in your 4WD, caravan, your boat or camper and enjoy reliable, maintenance-free power wherever you pull up stumps. No worries, no dramas, just endless off-grid juice. Don't let this one slip away, slide your way up the top of the page and add this beauty to your cart today!

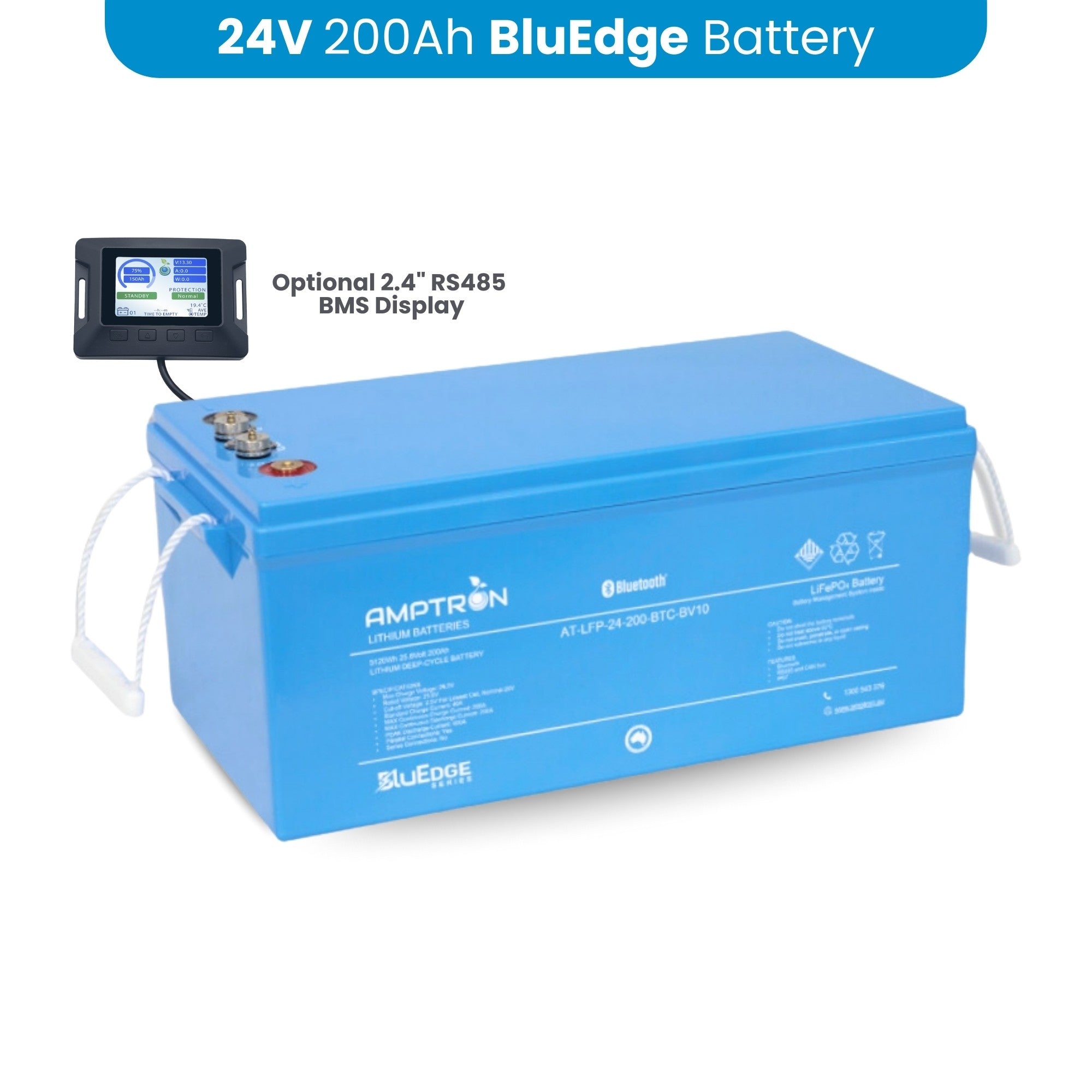

A photo of an Amptron 24V BluEdge 200ah 200a lithium battery on a slight angle.

Why The Amptron BluEdge 24V 200Ah Lithium Battery May Be Right For You:

200A Continuous Discharge Rate: Worried about high-draw devices like inverters, air compressor or fridges? With 200A of continuous discharge and a peak discharge current of 400A for 3 seconds, you'll never have to second guess your setup. No more warm beers or empty coffee cups - just pure consistent power.
Built-in Bluetooth Monitoring: Never guess your battery levels again with built in Bluetooth monitoring right at the tips of your fingers. Stay in control knowing that your batteries health checkup is always just a click away.
Lightweight Design Compared To AGM Equivalents (Just 40.5kg): So you've chucked everything in the back of the ute but there's no space for the bloody battery... Don't stress! Amptron Lithium Batteries slot into the canopy perfectly just like getting the perfect piece in Tetris. Level up your battery game in style.
Integrated Battery Management System (BMS): Bumpy roads and hot weather got you feeling stressed about the health of your gear? With built in BMS, you can rest easy knowing that your battery is protected against bumps, over-temperature, short circuits, overcharge and over discharge. Enjoy the comfort of knowing that your battery can handle the heat, even if you're getting a little hot under the collar.

Amptron BluEdge 24V 200Ah Lithium Battery User Manual:

Amptron 24v BluEdge 200ah 200a lithium battery user manual

Amptron BluEdge 24V 200Ah Lithium Battery User Manual

The BluEdge series is backed by an Australian based 5-year warranty.

Amptron BluEdge 24V 200Ah Lithium Battery Tech Specs:

🔧 GENERAL

Model:

AT-LFP-24-200-BTC-BV10

Chemistry:

Lithium Iron Phosphate (LiFePO4)

Battery Dimensions (L x W x H):

520mm x 267mm x 220mm

Weight:

40.5kg

Cell Type:

Prismatic

Working Voltage per Cell:

3.2V

Max Charge Voltage per Cell:

3.65V

Casing Material (Outer):

ABS

Casing Material (Cells):

Nickel plated steel

IP Rating:

IP67

🔋 BATTERY PERFORMANCE

Rated Capacity:

200Ah / 5120Wh (at 0.2C)

Rated / Nominal Voltage:

25.6V

Operating Voltage Range:

00V – 29.2V

Shipping Voltage:

24V – 29V

Battery Packs in Series:

Not Supported

Battery Packs in Parallel:

Supported

Cycle Life:

5000+ cycles @ 0.2C
100% rated capacity usable

Depth of Discharge (DoD):

100% (Recommended: 80%)

⚡ CHARGING

Recommended Charge Voltage:

28.8V

Max Charge Voltage:

29.2V

Standard Charge Current:

40A

Max Charge Current:

200A

Charging Time @ 40A:

4 – 5 Hours

🔌 DISCHARGING

Max Continuous Discharge Current:

200A

Peak Discharge Current (2 sec):

400A

Discharge Cut-Off Voltage:

20V or lowest cell @ 2.5V

Discharge Overcurrent Protection:

1st: 215A (3.5s)
2nd: 400A (2.2s)

Short Circuit Protection:

500A (400µs)

🌡️ TEMPERATURE & ENVIRONMENT

Operating Temperature (Charge):

-0°C – 55°C

Operating Temperature (Discharge):

-20°C – 60°C

Storage Temp (≤2 Months):

-20°C – 40°C

Storage Temp (≤6 Months):

-10°C – 35°C

Recommended Storage Temp:

20°C ± 5°C

Storage Humidity:

10% – 90% RH

Recommended Storage SOC:

Charge to 26.6V or 40–60% every 6 months

Internal Resistance:

≤ 20mΩ

Operating Power Consumption:

≤ 25mA

🔒 SAFETY PROTECTIONS

Cell Overcharge Protection:

3.65V ± 0.02V

Cell Overdischarge Protection:

2.5V ± 0.02V

Charging Overcurrent Protection:

220A ± 5A (2s)

High Temp Discharge/Charge Protection:

65°C ± 3°C

Low Temp Discharge Protection:

-20°C ± 3°C

Low Temp Charge Protection:

0°C ± 3°C

🔧 CONNECTION

Terminals:

Terminal Torque Limit:

6Nm

Connectivity:

Bluetooth

The Amptron 24V 200Ah Lithium Battery Is Built Tough For Tough Aussie Set-Ups

Why The Amptron BluEdge 24V 200Ah Lithium Battery May Be Right For You:

200A Continuous Discharge Rate: Worried about high-draw devices like inverters, air compressor or fridges? With 200A of continuous discharge and a peak discharge current of 400A for 3 seconds, you'll never have to second guess your setup. No more warm beers or empty coffee cups - just pure consistent power.

Built-in Bluetooth Monitoring: Never guess your battery levels again with built in Bluetooth monitoring right at the tips of your fingers. Stay in control knowing that your batteries health checkup is always just a click away.

Lightweight Design Compared To AGM Equivalents (Just 40.5kg): So you've chucked everything in the back of the ute but there's no space for the bloody battery... Don't stress! Amptron Lithium Batteries slot into the canopy perfectly just like getting the perfect piece in Tetris. Level up your battery game in style.

Integrated Battery Management System (BMS): Bumpy roads and hot weather got you feeling stressed about the health of your gear? With built in BMS, you can rest easy knowing that your battery is protected against bumps, over-temperature, short circuits, overcharge and over discharge. Enjoy the comfort of knowing that your battery can handle the heat, even if you're getting a little hot under the collar.

Amptron BluEdge 24V 200Ah Lithium Battery User Manual:

The BluEdge series is backed by an Australian based 5-year warranty.

Amptron BluEdge 24V 200Ah Lithium Battery Tech Specs:

🔧 GENERAL
Model: AT-LFP-24-200-BTC-BV10 Chemistry: Lithium Iron Phosphate (LiFePO4) Battery Dimensions (L x W x H): 520mm x 267mm x 220mm Weight: 40.5kg Cell Type: Prismatic Working Voltage per Cell: 3.2V Max Charge Voltage per Cell: 3.65V Casing Material (Outer): ABS Casing Material (Cells): Nickel plated steel IP Rating: IP67 🔋 BATTERY PERFORMANCE
Rated Capacity: 200Ah / 5120Wh (at 0.2C) Rated / Nominal Voltage: 25.6V Operating Voltage Range: 00V – 29.2V Shipping Voltage: 24V – 29V Battery Packs in Series: Not Supported Battery Packs in Parallel: Supported Cycle Life: 5000+ cycles @ 0.2C
100% rated capacity usable Depth of Discharge (DoD): 100% (Recommended: 80%) ⚡ CHARGING
Recommended Charge Voltage: 28.8V Max Charge Voltage: 29.2V Standard Charge Current: 40A Max Charge Current: 200A Charging Time @ 40A: 4 – 5 Hours 🔌 DISCHARGING
Max Continuous Discharge Current: 200A Peak Discharge Current (2 sec): 400A Discharge Cut-Off Voltage: 20V or lowest cell @ 2.5V Discharge Overcurrent Protection: 1st: 215A (3.5s)
2nd: 400A (2.2s) Short Circuit Protection: 500A (400µs) 🌡️ TEMPERATURE & ENVIRONMENT
Operating Temperature (Charge): -0°C – 55°C Operating Temperature (Discharge): -20°C – 60°C Storage Temp (≤2 Months): -20°C – 40°C Storage Temp (≤6 Months): -10°C – 35°C Recommended Storage Temp: 20°C ± 5°C Storage Humidity: 10% – 90% RH Recommended Storage SOC: Charge to 26.6V or 40–60% every 6 months Internal Resistance: ≤ 20mΩ Operating Power Consumption: ≤ 25mA 🔒 SAFETY PROTECTIONS
Cell Overcharge Protection: 3.65V ± 0.02V Cell Overdischarge Protection: 2.5V ± 0.02V Charging Overcurrent Protection: 220A ± 5A (2s) High Temp Discharge/Charge Protection: 65°C ± 3°C Low Temp Discharge Protection: -20°C ± 3°C Low Temp Charge Protection: 0°C ± 3°C 🔧 CONNECTION
Terminals: M8 Terminal Torque Limit: 6Nm Connectivity: Bluetooth
