Amptron 60A MPPT Solar Charge Controller
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Amptron 60A Solar Charge Controller – Reliable Power, Day In Day Out!
Sick of your solar setup underperforming or not quite keeping up when the weather turns average? The Amptron 60A MPPT Solar Charge Controller is built to squeeze every bit of power out of your panels, even when conditions aren’t perfect.
With smart MPPT tech boosting efficiency by up to 15–20% over old-school controllers, plus Bluetooth monitoring so you can keep an eye on things without crawling around your setup, it takes the guesswork (and headaches) out of going off-grid.
Grab one today and get more out of your solar without the hassle.
Add one to your cart and let the sun do the topping up.
Why The Amptron 60A MPPT Solar Controller May Be Right For You:
- Get more usable power out of every bit of sunshine with advanced MPPT technology, so you can keep your batteries topped up and your gear running longer without worry.
- Keep your batteries in top nick with smart multi-stage charging, helping extend their lifespan so you’re not shelling out for replacements anytime soon.

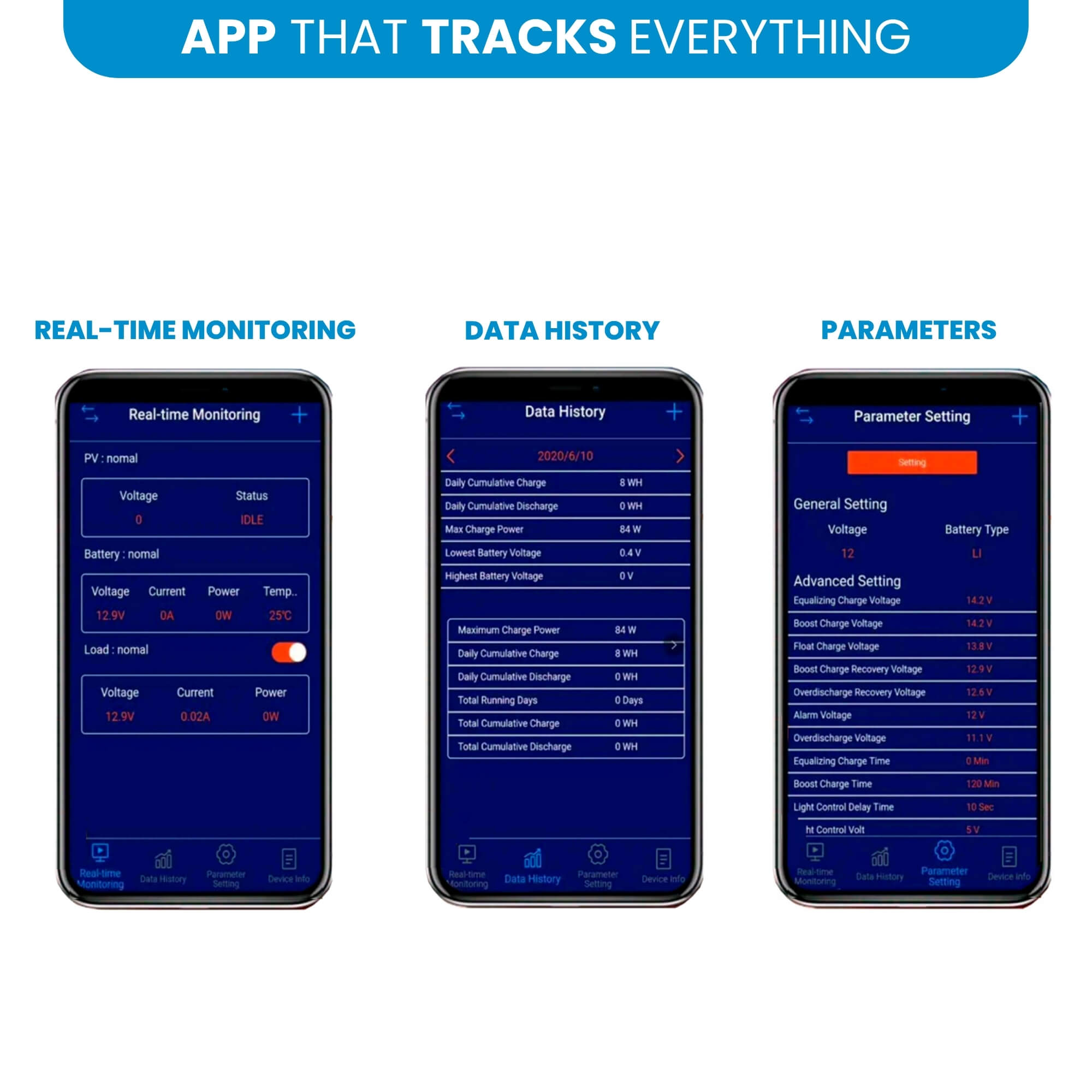

- Stay in control without the guesswork thanks to built-in Bluetooth monitoring, letting you check your system on your phone so you always know how things are tracking.
- Run a wide range of setups with flexible 12V–48V compatibility, making it easy to match your system so everything works together without a drama.
- Protect your entire setup with built-in safety features like overcharge and overheating protection, giving you peace of mind so nothing goes pear-shaped when you’re off-grid.
Amptron 60A Solar Charge Controller User Manual:
Amptron 60A MPPT Solar Controller Tech Specs
Model: AT-SOLCHR-AM4860NV01
Product Type: 60A MPPT Bluetooth Solar Charge Controller
Battery Compatibility: Flooded Lead Acid, Sealed Lead Acid, Gel, Lithium, User-Defined
Battery System Voltage: 12V / 24V / 36V / 48V
Voltage Selection: Automatic for Flooded/Gel/Sealed; Manual for Lithium/User
Rated Charge Current: 60A
Maximum Solar Input Voltage: <150V Voc
Maximum Load Output Current: 20A
Maximum PV Input Power: 900W @ 12V / 1800W @ 24V / 2600W @ 36V / 3200W @ 48V
No-Load Loss: 12mA @ 12V / 10mA @ 24V / 2mA @ 48V
Light Control Voltage: 5V × n
Light Control Delay: 10 seconds
Communication Port: RS485
Communication Protocol: Modbus
Bluetooth: Yes
Operating Temperature: -35°C to +45°C
IP Rating: IP32
Maximum Altitude: ≤3000m

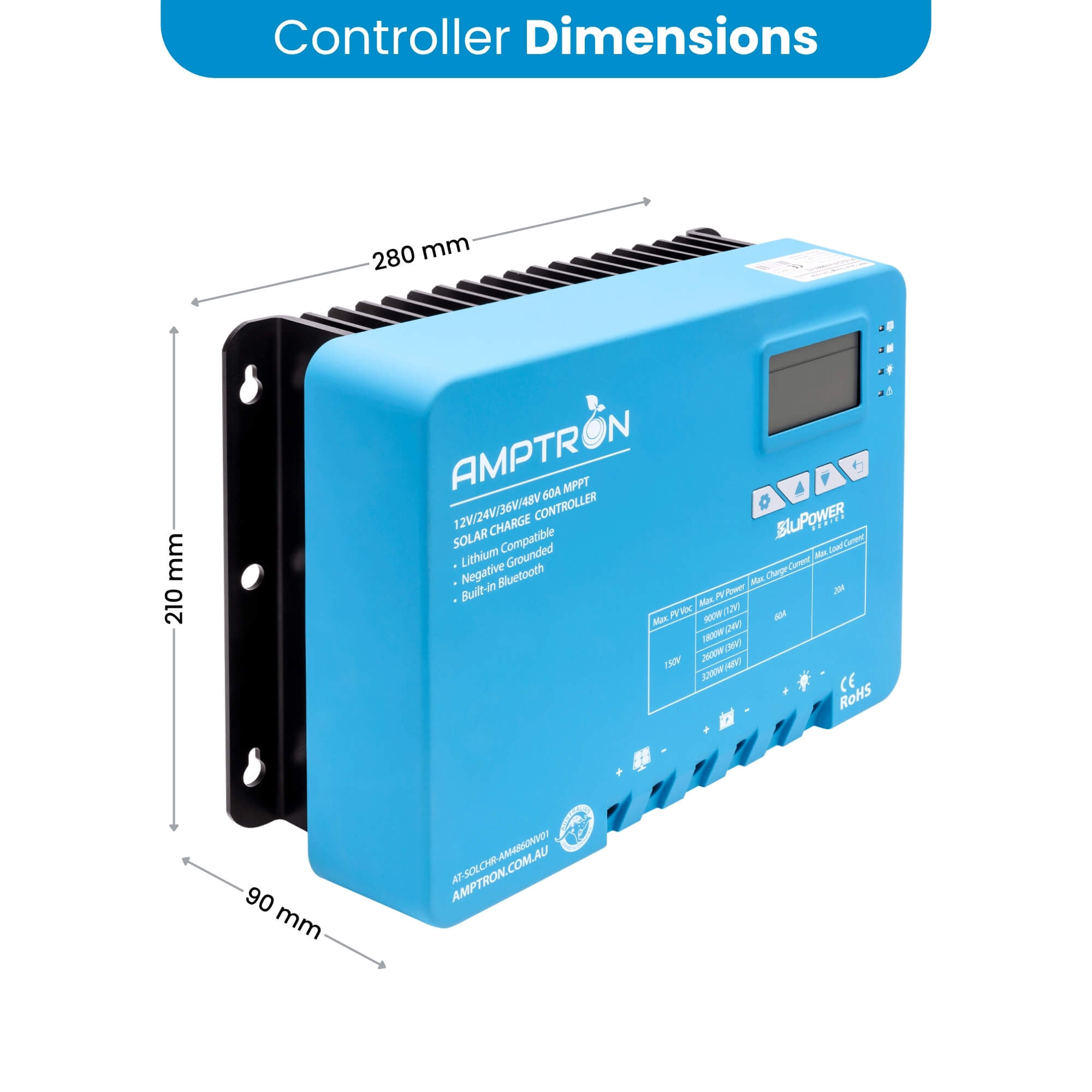

Dimensions: 280 × 210 × 90mm (L × W × H)
Weight: 3.0kg
Amptron 60A MPPT Solar Charge Controller FAQs
1. What battery types and system voltages can the Amptron 60A MPPT Solar Charge Controller support?
The controller supports 12V, 24V, 36V and 48V battery systems and is compatible with Sealed Lead Acid, Gel, AGM and Lithium Iron Phosphate (LiFePO4) batteries. It can automatically identify battery voltage for supported lead-acid configurations, while lithium and user-defined settings can be manually configured.
2. Is the Amptron 60A MPPT Solar Charge Controller difficult to install?
The controller requires correct connection to your solar panels, battery bank and, where applicable, DC loads. Amptron provides an installation manual, and installations should follow the manufacturer's wiring instructions and relevant electrical standards. If you're unsure about cable sizing, protection devices or system configuration, professional installation is recommended.
3. What safety features does the controller have?
The controller includes protection against PV reverse polarity and reverse current, along with over-temperature protection. It can automatically reduce charging current and load as temperature increases. It also supports battery temperature compensation and has an IP32 protection rating.
4. What warranty does the Amptron 60A MPPT Solar Charge Controller include?
Amptron-branded solar controllers are covered by a 2-year warranty against defects in materials and workmanship from the date of purchase. The warranty applies to the original purchaser and requires the controller to be correctly installed and operated according to Amptron's guidelines. Damage caused by incorrect wiring, reverse polarity, improper installation, misuse or operation outside the specified conditions may not be covered.
