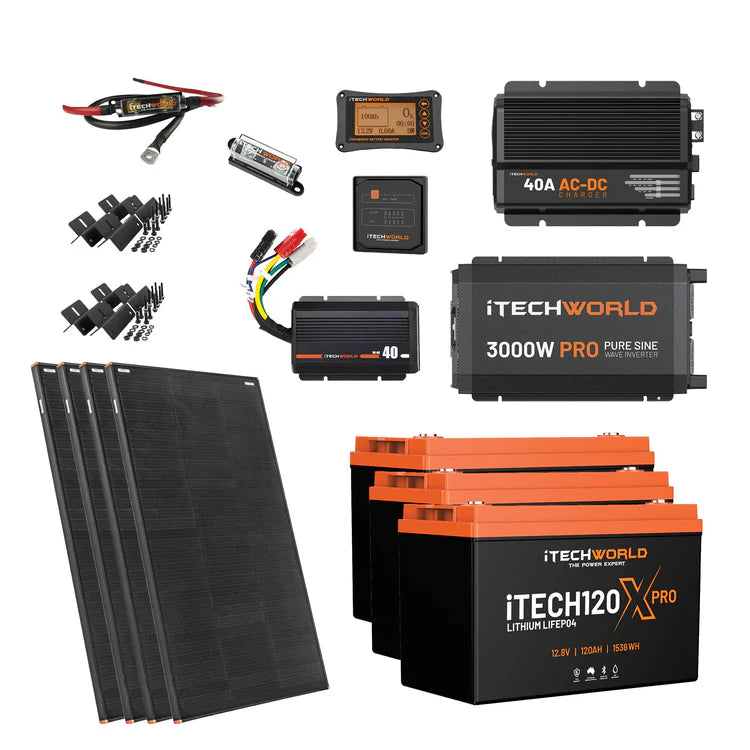

A photo of an iTechWorld Pro lithium caravan kit items including iTechWorld batteries, inverter, chargers and accessories.

iTechWorld Lithium System For Caravan

Name: iTechWorld Lithium System For Caravan
Brand: iTechWorld
SKU: iTech 360Ah-PLS
Price: 4250.0 AUD
Availability: InStock

by iTechWorld

Save $1,958.00

$6,208.00

$4,250.00

🚚 GREAT SHIPPING RATES: Save cash with free shipping on orders $299 and over. Conditions apply.

💰 FOUND A BETTER PRICE? Call us on 1300 902 361.

🔄 EASY RETURNS: We've got you covered!

🛠️ NEED HELP WITH INSTALLATION? Call us for more info.

🤝 WE'RE HERE TO HELP: Call us from Mon-Sat between 8am-9pm AEST.

Add-Ons

No Solar

Solar

Quantity

Power Up Your Caravan Adventures with the iTechworld Lithium System

Call us on 1300 902 361 to organise a fitting out today!

Ready to take your off-grid adventures to the next level? The iTechworld 360Ah Lithium Caravan Kit With Optional Solar is your all-in-one solution for reliable, efficient power on the road. Designed for Aussie conditions, this kit includes high-performance lithium batteries, a robust inverter, and smart charging components to keep your appliances running smoothly. Whether you're exploring the outback or relaxing at a coastal campsite, this setup ensures you have the power you need, wherever you are.

The iTechworld 360Ah Lithium Caravan Kit is the ultimate power solution for caravan adventures. Designed to meet the demands of everyday and off-grid caravan use, this bundle offers exceptional flexibility and high-performance components to keep you powered up wherever your journey takes you.

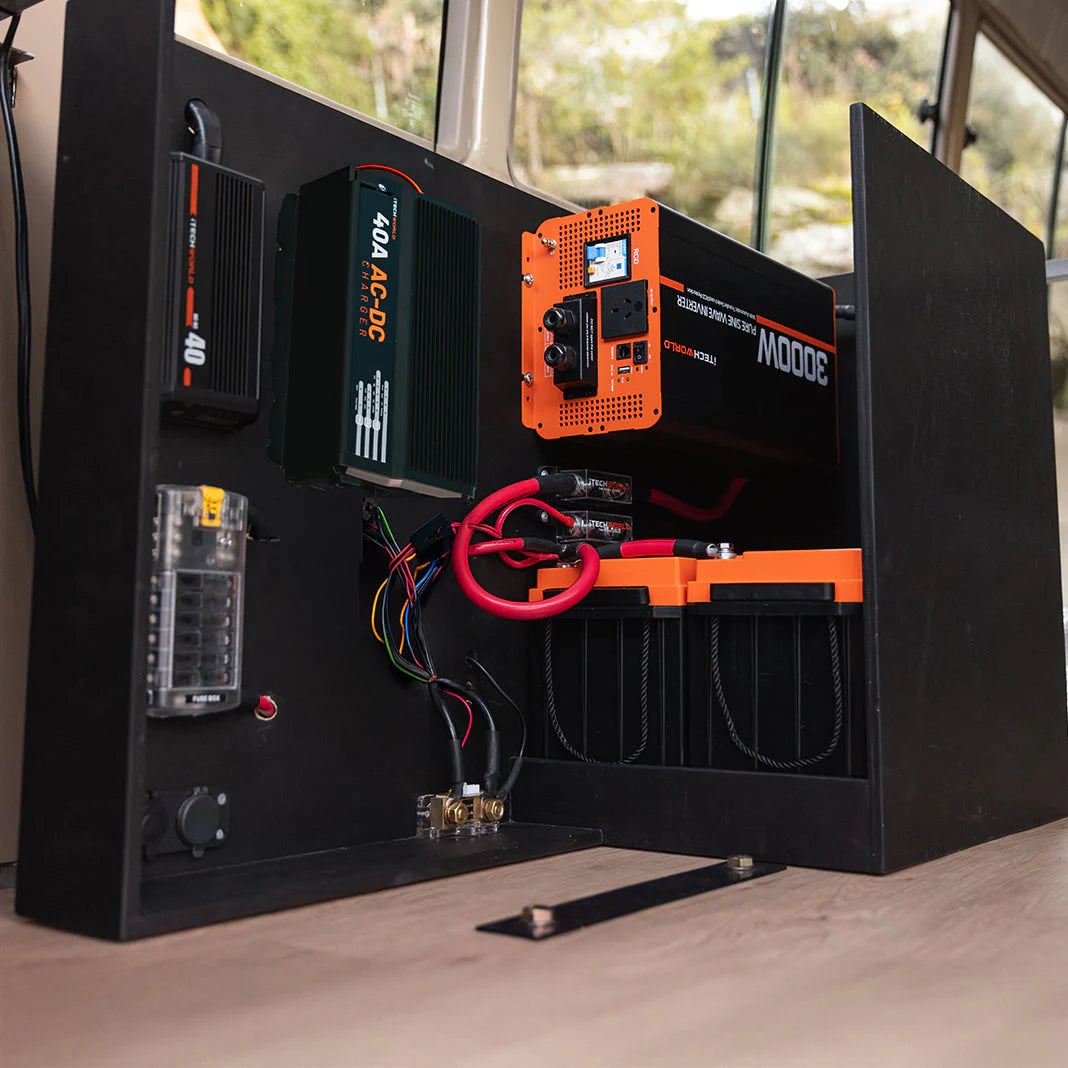

A photo including most of the components of the itechworld pro lithium caravan kit

iTechWorld Lithium Caravan Kit Key Components:

Unleash the full potential of freedom with iTechWorld's revolutionary 360Ah system, featuring not one but three of iTechWorld's premium lithium batteries, the iTECH120X PRO.
Plug & Play DCDC Wiring Kit - Connect your cranking battery to the iTECHDCDC40 or the Control Hub with an integrated iTECHDCDC40 charger for seamless power management.
iTECHDCCD40 for a straightforward and reliable charging option.
iTECHBC40 delivers a consistent 40 Amps Per Hour charge to your dual battery system. This provides efficient power delivery and keeps your batteries charged and ready for use.
3000W Pure Sine Wave Power Inverter - Power 240V appliances like Caravan AC, thermo-mix, electric kettle, coffee machines, microwaves, toasters, and more with ease. The Automatic Transfer Switch (ATS) feature ensures a smooth transition between power sources. Safety is a top priority with the built-in Residual Current Device (RCD) functionality.
RC2 Remote Control - Take control of your power with the RC2 remote control, designed to complement the 3000W Pure Sine Wave Power Inverter. This user-friendly remote allows you to conveniently operate and monitor your inverter from a distance, providing seamless control over your 240V appliances.
450Amp Maxi Fuse - Safeguard your system with a high-quality fuse on the inverter's positive line.
iTECHBM500 Battery Monitor - Stay informed about your battery's performance with real-time data on amps, SOC (State of Charge), and voltage.

Equip your caravan with the versatile and powerful 360Ah Lithium Caravan Kit, the ultimate power solution designed to cater to all your needs. With a range of battery and charging options, optional solar compatibility, and top-tier components, you can stay self-sufficient and go on longer, uninterrupted trips. Trust in the reliability and performance of iTechworld power solutions as you conquer new terrains and create unforgettable memories. Let the 360Ah Lithium Caravan Kit be your dependable and versatile companion on every thrilling journey, no matter your adventure style.

iTechWorld Pro Lithium Caravan Kit Package Contents:

3 x iTechWorld iTech120X Pro 120Ah Lithium Batteries
1 x iTechWorld 3000W Pro Power Inverter With ATS And RCD with RC2 Remote
1 x iTechWorld iTechDCDC40 Battery Charger
1 x iTechWorld iTechBM500 Battery Monitor With Shunt
1 x iTechWorld iTechBC40 Battery Charger
1 x DCDC Wiring Kit
1 x 450Amp Maxi Fuse
4 x 150W Solar Panels & Mounting Brackets (optional)

iTechWorld Pro Lithium Caravan Kit Tech Specs:

🔧 iTECH120X PRO

Nominal Voltage:

12.8V

Usable Capacity (C20 Rating):

120Ah

Short Circuit Protection:

Yes

Optimum Temperature Range:

5°C ~ 60°C

BMS Operational Temperature Range:

-40°C ~ 80°C

Safety Protection Isolator:

80°C

Recommended Charge Current:

1–60A

Maximum Charge Current:

100A

Recommended Charge Voltage:

14.4V

BMS Charge Cutoff Voltage:

15V

BMS Low Voltage Cutoff:

8.5–9V

Continuous Discharge:

150A (175A for 5 minutes)

Peak Discharge:

270A (5 seconds)

Series Connection:

Up to 48V (4 x batteries)

Parallel Connection:

Unlimited

Life Cycles @ 100% DoD:

5,000+

Life Cycles @ 50% DoD:

10,000+

Dimensions (LxWxH):

330 x 173 x 215mm (230mm including terminals)

Weight:

12.5kg

Terminals:

Case Material:

ABS

🔧 DCDC40 Charger

Battery Capacity Range:

80–800Ah

Vehicle Input Voltage:

9–32V

Solar Input Voltage:

10–32V

Maximum Input Current:

45A

Input Fuse Rating:

60A

Continuous Output Current:

Up to 40A

Output Fuse Rating:

60A

Minimum Charge Start Voltage:

Standby Current:

<10mA

Compatible Battery Types:

Lead-acid, Gel, AGM, Calcium, LiFePO4

Operating Temperature:

-20°C ~ 80°C

IP Rating:

IP67

Dimensions (LxWxH):

188 x 127 x 39mm

Weight:

950g

🔋 Charging Profile

Charge Type:

3-Stage

Absorption Voltage (Max Output):

STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.3V
LiFePO4: 14.5V

Float Voltage:

STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V

🔌 Input Voltage Conditions

12V Standard Alternator:

On: >13.2V / Off: <12.8V

24V Standard Alternator:

On: >26.2V / Off: <25.6V

12V Smart Alternator (Ignition Cable):

On: >12V / Off: <11.8V

24V Smart Alternator (Ignition Cable):

On: >24V / Off: <23.6V

Solar Activation:

On: 16V & 25W / Off: 10V

🔧 iTech BC40 AC Charger

Compatible Battery Types:

Standard lead-acid, Gel, AGM, Calcium & LiFePO4

Operating Temperature:

-20°C ~ 60°C

IP Rating:

IP20

Dimensions (LxWxH):

275 x 190 x 72mm

Weight:

2kg

🔋 Charging Output

Charge Type:

4-Stage

Bulk Charge Current:

40A

Absorption Voltage:

STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.5V
LiFePO4: 14.4V

Float Voltage:

STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V

🔧 3000W PRO Inverter

Maximum Continuous Output:

3000W

Peak Output:

6000W

Battery Compatibility:

Standard lead-acid, AGM, Gel or LiFePO4

Input Voltage Range:

10.5-15.5V

Output Plug Rating:

15A

Output Voltage & Frequency:

240V - 50Hz

No Load Draw:

<1.6A

Efficiency:

89-92%

Output Waveform:

Pure Sine Wave

Total Harmonic Distortion (THD):

<3%

IP Rating:

IP22

Operating Temperature:

-10°C ~ 50°C

Storage Temperature:

-30°C ~ 70°C

Over Voltage Protection:

15.5±0.2V DC

Under Voltage Protection:

10.5±0.2V DC

Short Circuit Protection:

1 second

Dimensions (LxWxH):

494 x 289 x 105mm

🔌 Remote & Safety

AC Transfer Switch:

30ms

Remote Terminal:

RJ12

Remote Dimensions (LxWxH):

86 x 86 x 19mm

Safety Certifications:

Complies with AS/NZS 4763:2011 and IEC/EN 62368-1 (incl. Australian deviations)

🔧 BM500 Battery Monitor

Supply Voltage:

10-100V

Battery Capacity:

10-999Ah

Maximum Measured Current:

500A

Power Consumption (Screen Off):

<2mA

Power Consumption (Screen @ 10% Brightness):

<20mA

Power Consumption (Screen @ 100% Brightness):

<60mA

Voltage Accuracy:

±1%

Current Accuracy:

±1%

Capacity Accuracy:

±1%

Operating Temperature:

-20°C ~ 80°C

IP Rating:

IP20

📏 Dimensions

Exterior Bracket (LxWxH):

106 x 81 x 18mm

Mounting Bracket (LxW):

95 x 70mm

Monitor Backing (LxWxH):

80 x 59 x 16mm

🔧 000AWG Inverter Cable With 450A Fuse

Cable Gauge:

000AWG / 90mm²

Cable Length:

Fuse Type:

450A ANS

Terminals:

Power Up Your Caravan Adventures with the iTechworld Lithium System

Call us on 1300 902 361 to organise a fitting out today!

A photo including most of the components of the itechworld pro lithium caravan kit

iTechWorld Lithium Caravan Kit Key Components:

Unleash the full potential of freedom with iTechWorld's revolutionary 360Ah system, featuring not one but three of iTechWorld's premium lithium batteries, the iTECH120X PRO.

Plug & Play DCDC Wiring Kit - Connect your cranking battery to the iTECHDCDC40 or the Control Hub with an integrated iTECHDCDC40 charger for seamless power management.

iTECHDCCD40 for a straightforward and reliable charging option.

iTECHBC40 delivers a consistent 40 Amps Per Hour charge to your dual battery system. This provides efficient power delivery and keeps your batteries charged and ready for use.

3000W Pure Sine Wave Power Inverter - Power 240V appliances like Caravan AC, thermo-mix, electric kettle, coffee machines, microwaves, toasters, and more with ease. The Automatic Transfer Switch (ATS) feature ensures a smooth transition between power sources. Safety is a top priority with the built-in Residual Current Device (RCD) functionality.

RC2 Remote Control - Take control of your power with the RC2 remote control, designed to complement the 3000W Pure Sine Wave Power Inverter. This user-friendly remote allows you to conveniently operate and monitor your inverter from a distance, providing seamless control over your 240V appliances.

450Amp Maxi Fuse - Safeguard your system with a high-quality fuse on the inverter's positive line.

iTECHBM500 Battery Monitor - Stay informed about your battery's performance with real-time data on amps, SOC (State of Charge), and voltage.

iTechWorld Pro Lithium Caravan Kit Package Contents:

iTechWorld Pro Lithium Caravan Kit Tech Specs:

🔧 iTECH120X PRO
Nominal Voltage: 12.8V Usable Capacity (C20 Rating): 120Ah Short Circuit Protection: Yes Optimum Temperature Range: 5°C ~ 60°C BMS Operational Temperature Range: -40°C ~ 80°C Safety Protection Isolator: 80°C Recommended Charge Current: 1–60A Maximum Charge Current: 100A Recommended Charge Voltage: 14.4V BMS Charge Cutoff Voltage: 15V BMS Low Voltage Cutoff: 8.5–9V Continuous Discharge: 150A (175A for 5 minutes) Peak Discharge: 270A (5 seconds) Series Connection: Up to 48V (4 x batteries) Parallel Connection: Unlimited Life Cycles @ 100% DoD: 5,000+ Life Cycles @ 50% DoD: 10,000+ Dimensions (LxWxH): 330 x 173 x 215mm (230mm including terminals) Weight: 12.5kg Terminals: M8 Case Material: ABS

🔧 DCDC40 Charger
Battery Capacity Range: 80–800Ah Vehicle Input Voltage: 9–32V Solar Input Voltage: 10–32V Maximum Input Current: 45A Input Fuse Rating: 60A Continuous Output Current: Up to 40A Output Fuse Rating: 60A Minimum Charge Start Voltage: 4V Standby Current: <10mA Compatible Battery Types: Lead-acid, Gel, AGM, Calcium, LiFePO4 Operating Temperature: -20°C ~ 80°C IP Rating: IP67 Dimensions (LxWxH): 188 x 127 x 39mm Weight: 950g 🔋 Charging Profile
Charge Type: 3-Stage Absorption Voltage (Max Output): STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.3V
LiFePO4: 14.5V Float Voltage: STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V 🔌 Input Voltage Conditions
12V Standard Alternator: On: >13.2V / Off: <12.8V 24V Standard Alternator: On: >26.2V / Off: <25.6V 12V Smart Alternator (Ignition Cable): On: >12V / Off: <11.8V 24V Smart Alternator (Ignition Cable): On: >24V / Off: <23.6V Solar Activation: On: 16V & 25W / Off: 10V

🔧 iTech BC40 AC Charger
Compatible Battery Types: Standard lead-acid, Gel, AGM, Calcium & LiFePO4 Operating Temperature: -20°C ~ 60°C IP Rating: IP20 Dimensions (LxWxH): 275 x 190 x 72mm Weight: 2kg 🔋 Charging Output
Charge Type: 4-Stage Bulk Charge Current: 40A Absorption Voltage: STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.5V
LiFePO4: 14.4V Float Voltage: STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V

🔧 3000W PRO Inverter
Maximum Continuous Output: 3000W Peak Output: 6000W Battery Compatibility: Standard lead-acid, AGM, Gel or LiFePO4 Input Voltage Range: 10.5-15.5V Output Plug Rating: 15A Output Voltage & Frequency: 240V - 50Hz No Load Draw: <1.6A Efficiency: 89-92% Output Waveform: Pure Sine Wave Total Harmonic Distortion (THD): <3% IP Rating: IP22 Operating Temperature: -10°C ~ 50°C Storage Temperature: -30°C ~ 70°C Over Voltage Protection: 15.5±0.2V DC Under Voltage Protection: 10.5±0.2V DC Short Circuit Protection: 1 second Dimensions (LxWxH): 494 x 289 x 105mm 🔌 Remote & Safety
AC Transfer Switch: 30ms Remote Terminal: RJ12 Remote Dimensions (LxWxH): 86 x 86 x 19mm Safety Certifications: Complies with AS/NZS 4763:2011 and IEC/EN 62368-1 (incl. Australian deviations)

🔧 BM500 Battery Monitor
Supply Voltage: 10-100V Battery Capacity: 10-999Ah Maximum Measured Current: 500A Power Consumption (Screen Off): <2mA Power Consumption (Screen @ 10% Brightness): <20mA Power Consumption (Screen @ 100% Brightness): <60mA Voltage Accuracy: ±1% Current Accuracy: ±1% Capacity Accuracy: ±1% Operating Temperature: -20°C ~ 80°C IP Rating: IP20 📏 Dimensions
Exterior Bracket (LxWxH): 106 x 81 x 18mm Mounting Bracket (LxW): 95 x 70mm Monitor Backing (LxWxH): 80 x 59 x 16mm

🔧 000AWG Inverter Cable With 450A Fuse
Cable Gauge: 000AWG / 90mm² Cable Length: 1m Fuse Type: 450A ANS Terminals: M8
