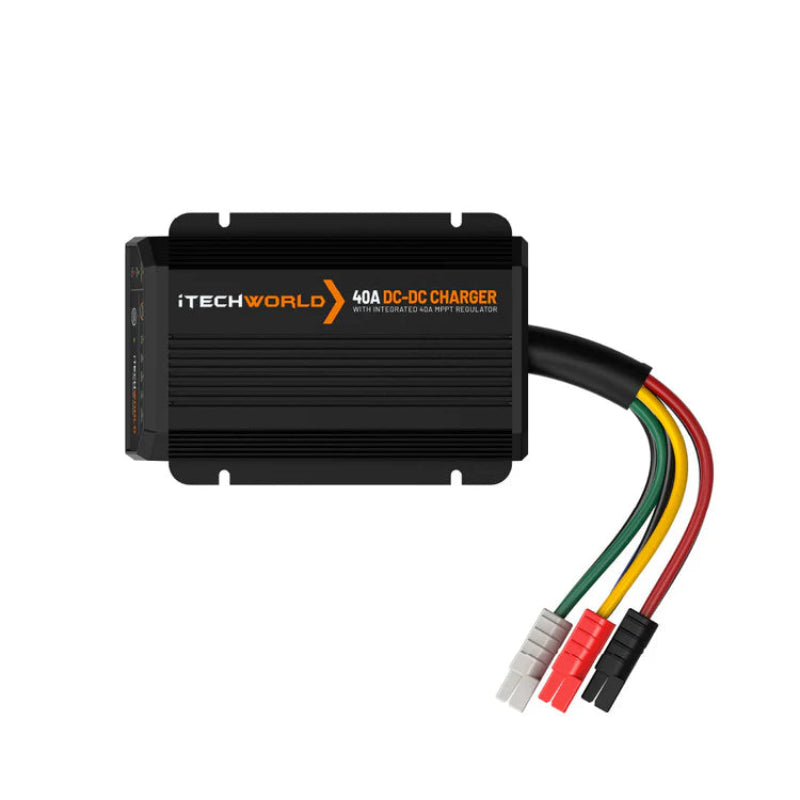

Front view of a Black iTechWorld iTechDCDC40 Battery Charger

iTechWorld DCDC40 Battery Charger

by iTechWorld
$399.00

🚚 GREAT SHIPPING RATES: Save cash with free shipping on orders $299 and over. Conditions apply.

💰 FOUND A BETTER PRICE? Call us on 1300 902 361.

🔄 EASY RETURNS: We've got you covered!

🛠️ NEED HELP WITH INSTALLATION? Call us for more info.

🤝 WE'RE HERE TO HELP: Call us from Mon-Sat between 8am-9pm AEST.

Notify me when back in stock

Big Power, Smart Charging – The iTechWorld DCDC40 40A DC-DC Charger

Need fast, reliable charging while you’re on the move? The iTECHDCDC40 40A DC-DC Charger is the answer. This powerhouse ensures your battery stays fully charged while you're driving, whether you're in your 4WD, caravan, or boat. With up to 40 amps of charging power, it keeps everything topped up and ready to go, no matter where your adventure takes you. Built tough for Aussie conditions, it’s the perfect addition to your setup to make sure you’re never caught without power.

The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).

If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.

A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.

The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.

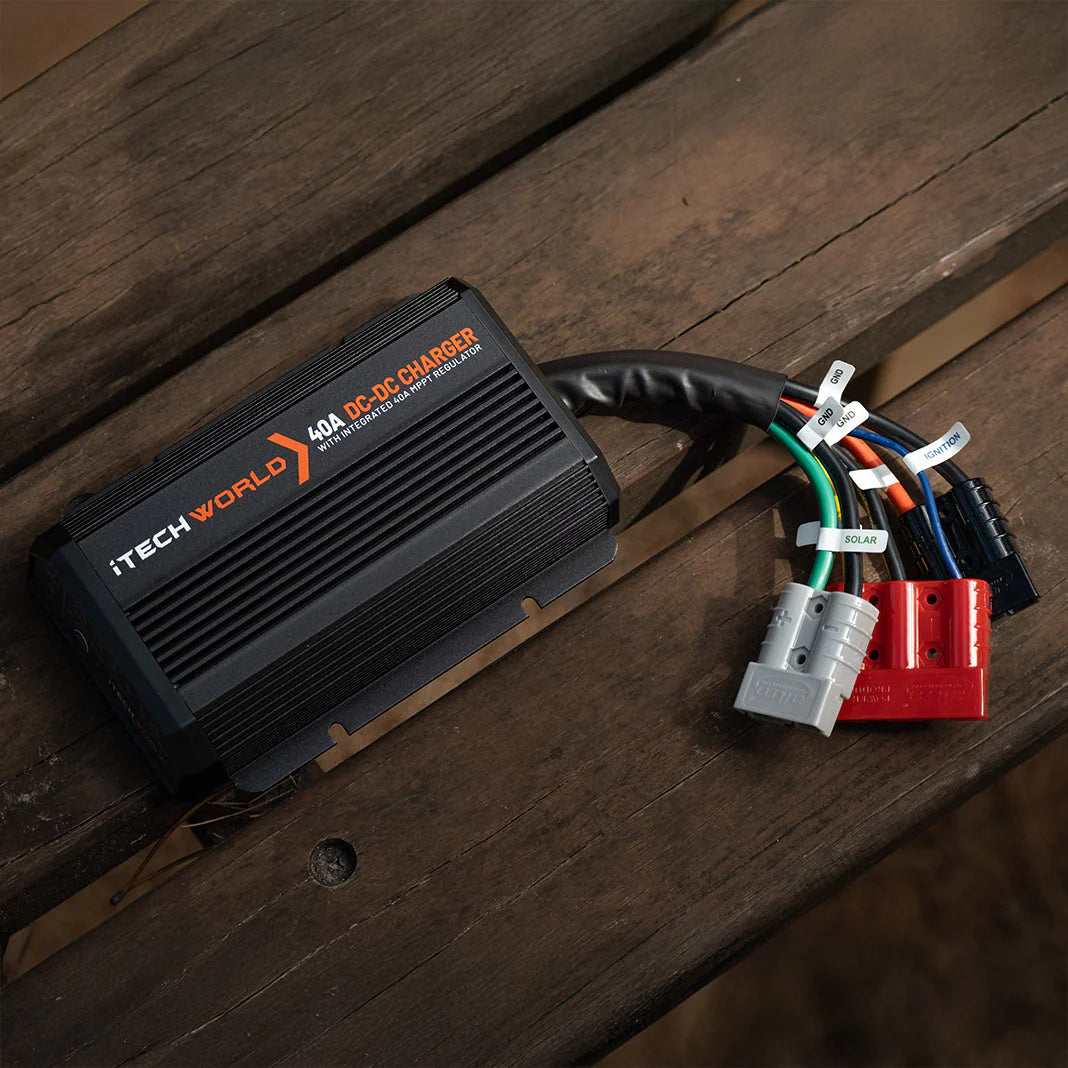

A photo of an iTechWorld DCDC40 battery charger laying down on a table.

iTechDCDC40 Battery Charger Package Contents:

  • 1x iTECHDCDC40
  • 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
  • 1x Instruction manual also found
  • Warranty: 1 year

iTechDCDC40 Battery Charger User Manual:


iTechDCDC40 Battery Charger Tech Specs:

🔧 General

Battery Capacity:
80–800Ah
Vehicle Input Voltage:
9–32V
Solar Input Voltage:
10–32V
Maximum Input Current:
45A
Input Fuse Rating:
60A
Continuous Output Current:
Up to 40A
Output Fuse Rating:
60A
Minimum Aux Battery Charge Start Voltage:
4V
Standby Current:
<10mA
Battery Type Compatibility:
Standard Lead-Acid, Gel, AGM, Calcium & LiFePO4
Operating Temperature:
-20°C ~ 80°C
IP Rating:
IP67
Dimensions (L×W×H):
188 × 127 × 39 mm
Weight:
950g
🔋 Output

Charge Type:
3-Stage
Charging Profile:
STD, Gel, AGM, Calcium, LiFePO4
Absorption Voltage:
STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.3V
LiFePO4: 14.5V
Float Voltage:
STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V
🔌 Input Triggers

12V Standard Alternator (On/Off):
>13.2V / <12.8V
24V Standard Alternator (On/Off):
>26.2V / <25.6V
12V Smart Alternator (Ignition Cable):
>12V / <11.8V
24V Smart Alternator (Ignition Cable):
>24V / <23.6V
Solar Activation Voltage:
Starts at 16V & 25W, cuts out below 10V
Description

Big Power, Smart Charging – The iTechWorld DCDC40 40A DC-DC Charger

Need fast, reliable charging while you’re on the move? The iTECHDCDC40 40A DC-DC Charger is the answer. This powerhouse ensures your battery stays fully charged while you're driving, whether you're in your 4WD, caravan, or boat. With up to 40 amps of charging power, it keeps everything topped up and ready to go, no matter where your adventure takes you. Built tough for Aussie conditions, it’s the perfect addition to your setup to make sure you’re never caught without power.

The iTECHDCDC40 charger incorporates an MPPT solar controller allowing charge from solar panels or blankets. When the vehicle runs, the DCDC charger will charge via the alternator; when the vehicle stops, the iTECHDCDC40 will continue charging via your solar panels/blankets (if added).

If your car has a smart alternator, the iTECHDCDC40 has you covered with its easy-to-connect 3-pin Anderson, which allows operation with any alternator.

A unique feature of the new iTECHDCDC40 is the ability to accept a wide voltage input range from either solar or vehicle input, with the maximum input voltage now being 32v. As the iTECHDCDC40 accepts higher input voltages, it opens the door to 24v inputs as well as some larger voltage solar panels commonly found in residential installations.

The new iTECHDCDC40 is compatible with all battery types but comes into its own when paired with iTechworld lithium batteries. All iTechworld lithium batteries have low voltage protection and will enter "safe mode" to protect themselves when their voltage dips below 10v. There are various methods to bring an iTechworld lithium battery out of safe mode, but the new iTECHDCDC40 will get an iTechworld lithium battery out of safe mode automatically; if the lithium battery enters safe mode, turn off any load on the battery and the iTECHDCDC40 will take care of the rest, it's that simple.

A photo of an iTechWorld DCDC40 battery charger laying down on a table.

iTechDCDC40 Battery Charger Package Contents:

  • 1x iTECHDCDC40
  • 6x Colour coded Anderson Connectors (3 are pre-installed to the iTECHDCDC40)
  • 1x Instruction manual also found
  • Warranty: 1 year

iTechDCDC40 Battery Charger User Manual:

iTechDCDC40 Battery Charger User ManualiTechDCDC40 Battery Charger User Manual

iTechDCDC40 Battery Charger Tech Specs:

🔧 General
Battery Capacity: 80–800Ah Vehicle Input Voltage: 9–32V Solar Input Voltage: 10–32V Maximum Input Current: 45A Input Fuse Rating: 60A Continuous Output Current: Up to 40A Output Fuse Rating: 60A Minimum Aux Battery Charge Start Voltage: 4V Standby Current: <10mA Battery Type Compatibility: Standard Lead-Acid, Gel, AGM, Calcium & LiFePO4 Operating Temperature: -20°C ~ 80°C IP Rating: IP67 Dimensions (L×W×H): 188 × 127 × 39 mm Weight: 950g 🔋 Output
Charge Type: 3-Stage Charging Profile: STD, Gel, AGM, Calcium, LiFePO4 Absorption Voltage: STD: 14.4V
Gel: 14.1V
AGM: 14.7V
Calcium: 15.3V
LiFePO4: 14.5V Float Voltage: STD: 13.4V
Gel: 13.5V
AGM: 13.4V
Calcium: 13.6V 🔌 Input Triggers
12V Standard Alternator (On/Off): >13.2V / <12.8V 24V Standard Alternator (On/Off): >26.2V / <25.6V 12V Smart Alternator (Ignition Cable): >12V / <11.8V 24V Smart Alternator (Ignition Cable): >24V / <23.6V Solar Activation Voltage: Starts at 16V & 25W, cuts out below 10V
