Custom Lithium 230Ah Slim Lithium Battery
$2,090.00
Estimated delivery …
This is an estimate only. Actual delivery times can vary with stock availability, courier delays, weather, public holidays and your location.
Thirty More Amp Hours, Same Install — The Custom Lithium 230Ah Slim
The 230Ah Slim sits in exactly the same case as the 200Ah — same 450 x 125 x 252mm footprint, same 18 kg, same mounting — and carries 30 more amp hours. For most touring setups that's another day before you need to recharge, and it costs $100. If the 200Ah Slim already suits your space, this is the one to take.
Same slot in your build, more time off-grid. Order yours today!
Why The Custom Lithium 230Ah Slim Lithium Battery May Be Right For You:
- Identical 450 x 125 x 252mm case and 18 kg weight as the 200Ah — the extra capacity costs you nothing in space or payload.

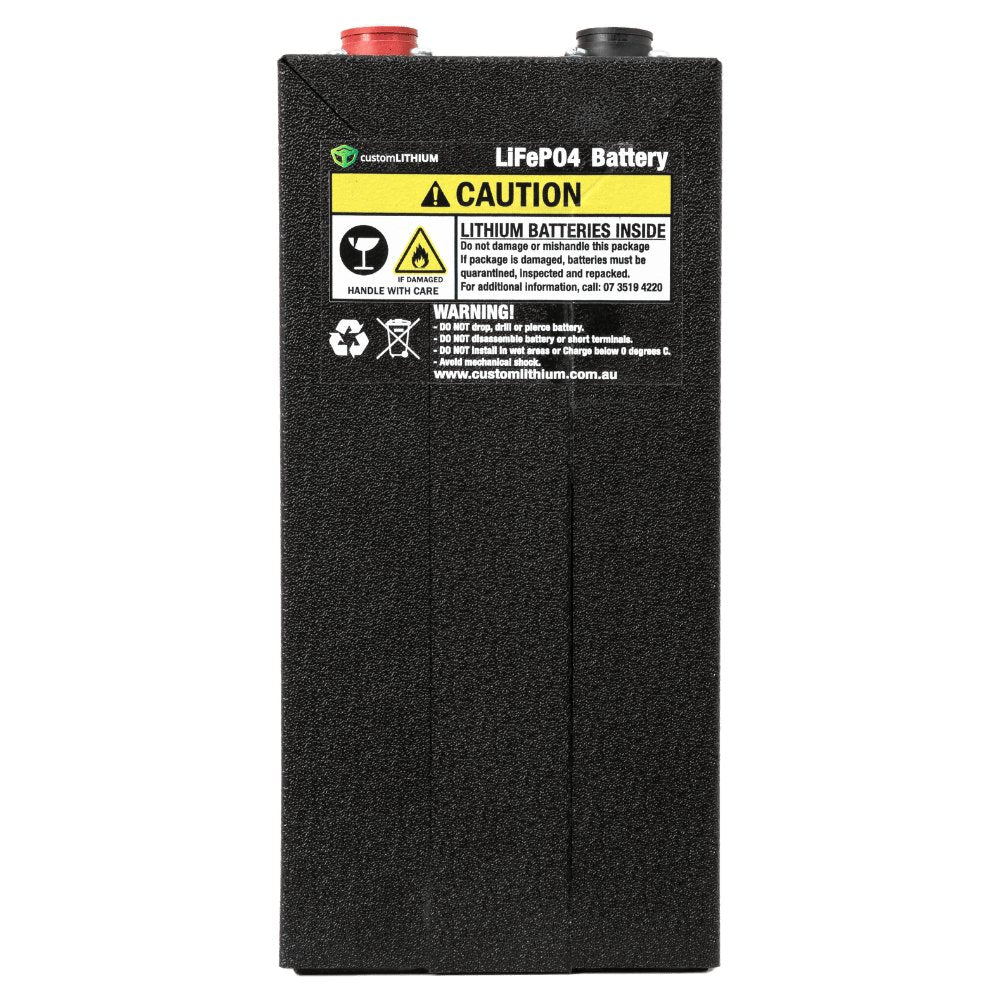

- At 125mm wide it fits the narrow cavities in canopies, caravans and 4x4 builds that a conventional battery can't reach.
- 200 amps continuous discharge with 1000 amp peak protection, so a fridge, inverter, water pump and lights run together.
- Takes up to 100 amps of charge, so a decent DC-DC charger refills it properly on a single drive between camps.
- A-grade automotive LiFePO4 cells with BMS protection and vibration-insulated components for corrugated roads.
- You're supporting the local economy. All Custom Lithium batteries are made here in Australia and individually bench-tested.
Custom Lithium 230Ah Slim Lithium Battery Installation:
If you are unsure about installation, please contact us on 1300 902 361 for assistance, or alternatively please reach out for us to organise an installation.
*Improper installation will void your warranty and may result in injury.
Custom Lithium 230Ah Slim Lithium Battery Tech Specs
| CAPACITY: | 230AH |
| NOMINAL VOLTAGE: | 12.8V |
| CONSTANT DISCHARGE: | 200 AMP |
| PEAK DISCHARGE: | 833A - 1000AMP Protection |
| RECOMMENDED CHARGE: | 100AMP |
| DIMENSIONS: | 450 x 125 x 252 |
| DIMENSIONS (Overall): | 450mm L x 125mm W x 285mm H |
| WEIGHT (KG): | 18 kg |
| OPERATING TEMP: | 0°C – 60°C |

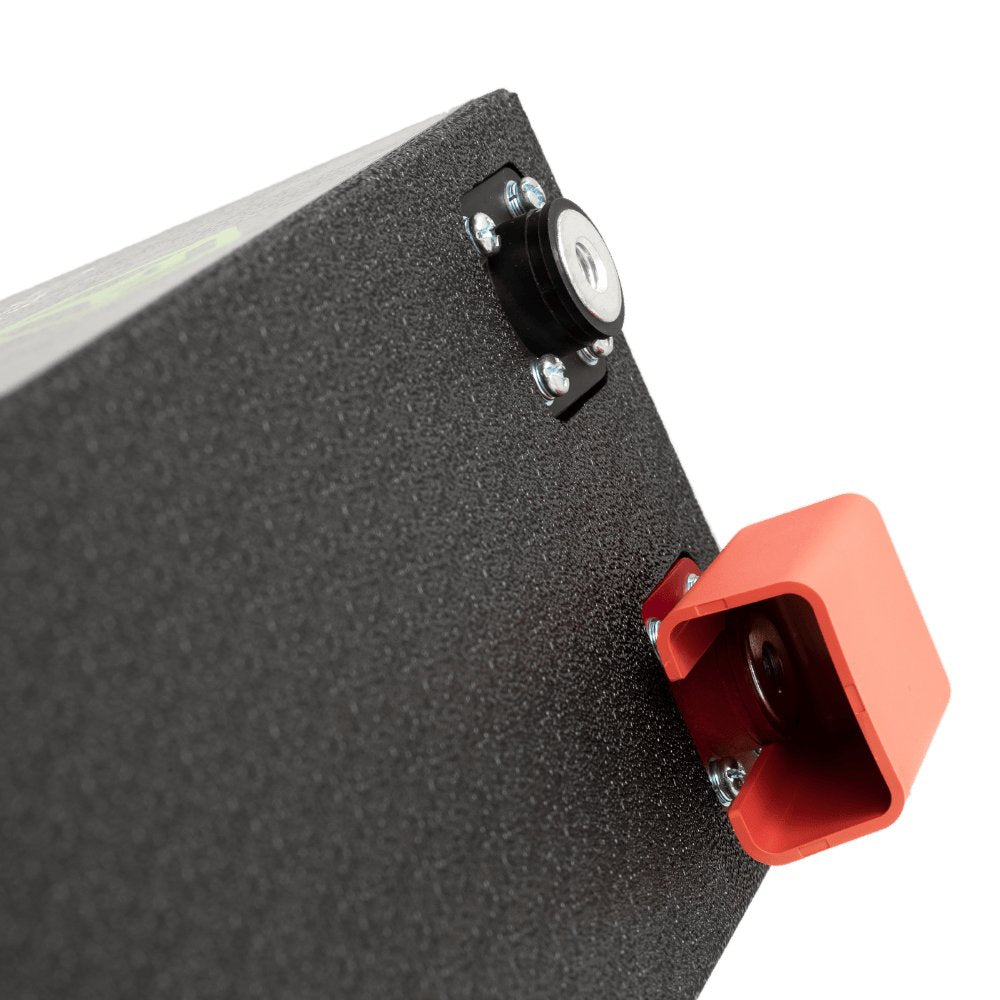

| TERMINALS: | M8 terminals |
| CHARGE VOLTAGE: | 14.2v – 14.6v |
| ABSORPTION/FLOAT: | 13.4v – 13.6v |
| CUT OFF VOLTAGE: | 10.5v |
