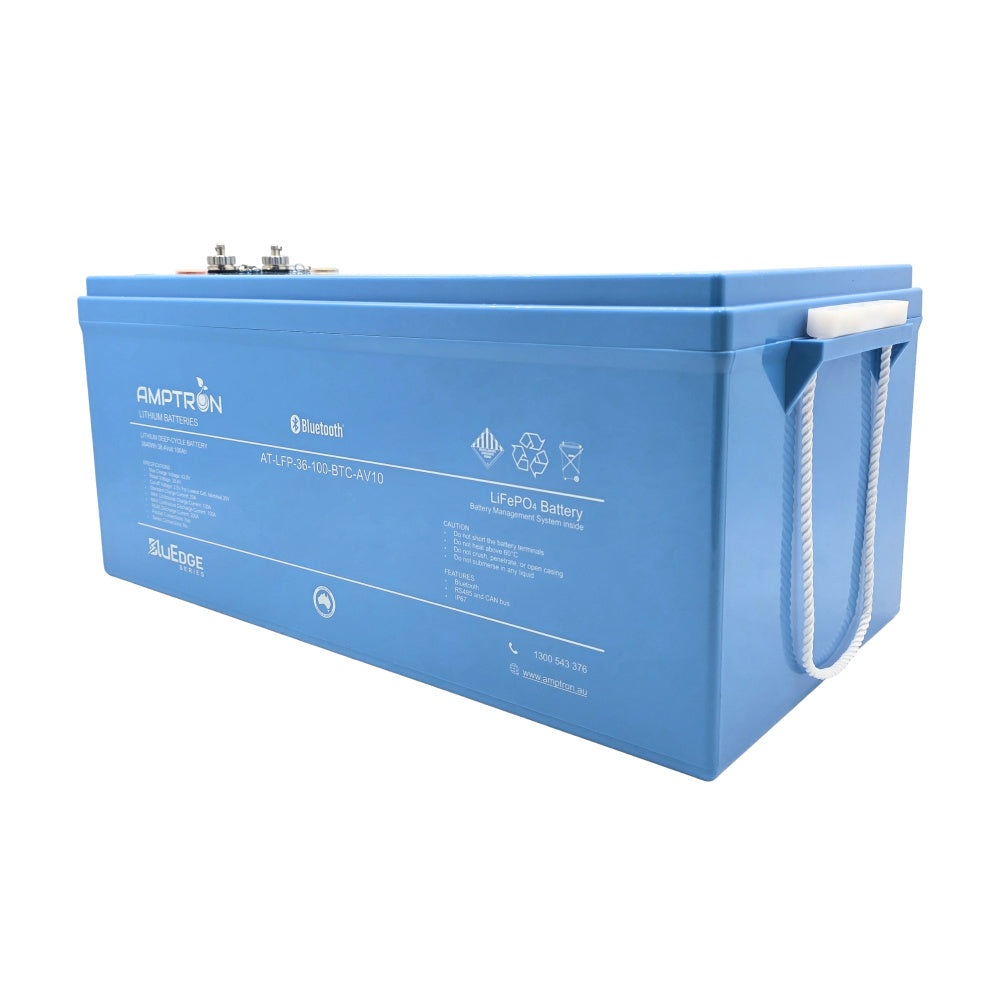

A photo of an Amptron 36V 100Ah 100A bluEdge lithium battery on a left side angle with a white background.

Amptron 36V BluEdge 100Ah 100A Lithium Battery

Name: Amptron 36V BluEdge 100Ah 100A Lithium Battery
Brand: Amptron
SKU: AT-LFP-36-100-BTC-AV10
Price: 2599.0 AUD
Availability: InStock

by Amptron

Save $300.00

$2,899.00

$2,599.00

Quantity

Why Shop With Outback SafeTrack

*Delivery windows may vary by location and carrier. $100 store credit applies if delivery exceeds 10 business days after dispatch.

The Amptron 36V 100Ah Lithium Battery Is Built Tough For Tough Aussie Set-Ups

Needing some serious battery power for your current setup? The AMPTRON 36V 100Ah BluEdge LiFePO4 Battery is your new best mate. Run your high draw power equipment (think electric scooters, golf carts and marine gear) with ease using an Amptron 36V Lithium Battery.

With a rate of 100A continuous discharge rate, this beast packs a punch without hogging half your canopy or under-bunk space. Worried about weight? This battery is lithium, so it’s light, safe, and delivers way more usable power than a lead-acid equivalent.

Alright, that all sounds great but are these going to handle the whatever the harsh Aussie outback throws at it? Yes! Amptron are Aussie owned and operated, therefore their batteries are built to handle rough Aussie conditions with a rugged case and top-tier BMS. The bonus? You get Bluetooth monitoring straight from your phone and CANBUS/RS485 comms for advanced setups. Whether you’re running fridges, inverters or a full touring rig, this battery won’t skip a beat.

Chuck it in your 4WD, caravan, your boat or camper and enjoy reliable, maintenance-free power wherever you pull up stumps. No worries, no dramas, just endless off-grid juice. Don't let this one slip away, slide your way up the top of the page and add this beauty to your cart today!

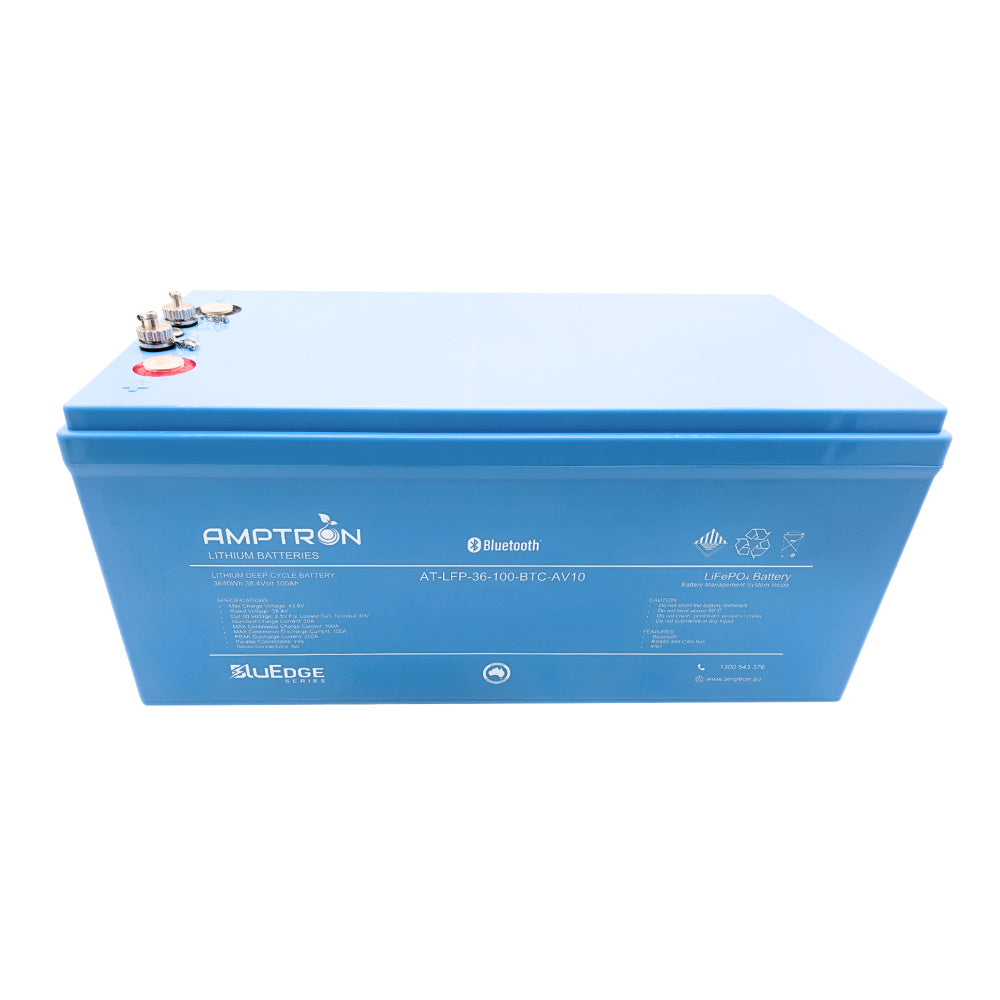

A top view photo of an Amptron 36V 100Ah 100A bluEdge lithium battery on a white background.

Why The Amptron BluEdge 36V 100Ah Lithium Battery May Be Right For You:

36V Of Battery Power: Need a bit of extra oomph for your setup and your standard 12/24V batteries aren't doing it for you? With 100A of continuous 36V discharge and a peak discharge current of 200A for 2 seconds, you'll never have to second guess your setup.
Built-in Bluetooth Monitoring: Never guess your battery levels again with built in Bluetooth monitoring right at the tips of your fingers. Stay in control knowing that your batteries health checkup is always just a click away.
Lightweight Small Profile Design (Just 32.5kg): So you've chucked everything in the back of the ute but there's no space for the bloody battery... Don't stress! Amptron Lithium Batteries slot into the canopy perfectly just like getting the perfect piece in Tetris. Level up your battery game in style.
Integrated Battery Management System (BMS): Bumpy roads and hot weather got you feeling stressed about the health of your gear? With built in BMS, you can rest easy knowing that your battery is protected against bumps, over-temperature, short circuits, overcharge and over discharge. Enjoy the comfort of knowing that your battery can handle the heat, even if you're getting a little hot under the collar.

Amptron BluEdge 36V 100Ah Lithium Battery User Manual:

Amptron 36V 100A 100Ah BluEdge lithium battery user manual

Amptron BluEdge 36V 100Ah Lithium Battery User Manual

The BluEdge series is backed by an Australian based 5-year warranty.

Amptron BluEdge 36V 100A Lithium Battery Tech Specs:

🔧 General

Model:

AT-LFP-36-100-BTC-AV10

Description:

BluEdge Series – 36V 100Ah / 100A Continuous Discharge Lithium LiFePO4 battery + Bluetooth

Size (LxWxH):

520 x 267 x 220mm

Weight:

32.5kg

Connection Terminals:

Connection Terminal Torque Limit:

6Nm

Outer Casing Material:

ABS

Casing material for single cell:

Nickel plated steel

IP Rating:

IP67

Chemistry:

Lithium Iron Phosphate (LiFePO4)

Cell Type:

Prismatic

Rated Capacity:

100Ah / 3840Wh (at 0.2C)

Battery packs in series:

Not Supported

Battery packs in parallel:

Supported

Battery cycle life:

6000 cycles @ 0.2C (100% DoD)

Rated / Nominal Voltage:

38.4V

Operating Voltage Range:

30V – 43.8V

Shipping Voltage:

36 – 43V

Recommended Charge Voltage:

43.2V

Max Charge Voltage:

43.2V (3.65V per cell)

Cut-off Voltage:

30V (when lowest cell reaches 2.5V)

Depth of Discharge (DoD):

100% (Recommended: 80%)

Standard Charge Current:

20A

Charging Time @ Standard Current:

4–5 Hours

Maximum Charge Current:

100A

Max Continuous Discharge Current:

100A

Peak Discharge Current (2s):

200A

Internal Resistance:

≤ 20mΩ

Operating Power Consumption:

≤ 25mA

Operating Temperature (Charge):

0°C to 55°C

Operating Temperature (Discharge):

-20°C to 60°C

Storage Temperature (2 months):

-20°C to 40°C

Storage Temperature (6 months):

-10°C to 35°C

Recommended Storage Temp:

20°C ± 5°C

Storage Humidity Range:

10% – 90%

Recommended Storage Duration:

Charge to 39.9V or 40–60% SoC every 6 months

Cell Overcharge Protection:

3.65V ± 0.05V

Cell Overdischarge Protection:

2.5V ± 0.1V

Charging Overcurrent Protection:

105A (8 seconds)

Discharging Overcurrent Protection:

1st: 180A (3.5s), 2nd: 200A (2s)

Short Circuit Protection:

500A (400μs)

High Temp Protection (Discharge/Charge):

60°C ± 5°C

Low Temp Protection (Discharge/Charge):

-10°C ± 5°C

The Amptron 36V 100Ah Lithium Battery Is Built Tough For Tough Aussie Set-Ups

Why The Amptron BluEdge 36V 100Ah Lithium Battery May Be Right For You:

36V Of Battery Power: Need a bit of extra oomph for your setup and your standard 12/24V batteries aren't doing it for you? With 100A of continuous 36V discharge and a peak discharge current of 200A for 2 seconds, you'll never have to second guess your setup.

Built-in Bluetooth Monitoring: Never guess your battery levels again with built in Bluetooth monitoring right at the tips of your fingers. Stay in control knowing that your batteries health checkup is always just a click away.

Lightweight Small Profile Design (Just 32.5kg): So you've chucked everything in the back of the ute but there's no space for the bloody battery... Don't stress! Amptron Lithium Batteries slot into the canopy perfectly just like getting the perfect piece in Tetris. Level up your battery game in style.

Integrated Battery Management System (BMS): Bumpy roads and hot weather got you feeling stressed about the health of your gear? With built in BMS, you can rest easy knowing that your battery is protected against bumps, over-temperature, short circuits, overcharge and over discharge. Enjoy the comfort of knowing that your battery can handle the heat, even if you're getting a little hot under the collar.

Amptron BluEdge 36V 100Ah Lithium Battery User Manual:

The BluEdge series is backed by an Australian based 5-year warranty.

Amptron BluEdge 36V 100A Lithium Battery Tech Specs:

🔧 General
Model: AT-LFP-36-100-BTC-AV10 Description: BluEdge Series – 36V 100Ah / 100A Continuous Discharge Lithium LiFePO4 battery + Bluetooth Size (LxWxH): 520 x 267 x 220mm Weight: 32.5kg Connection Terminals: M8 Connection Terminal Torque Limit: 6Nm Outer Casing Material: ABS Casing material for single cell: Nickel plated steel IP Rating: IP67 Chemistry: Lithium Iron Phosphate (LiFePO4) Cell Type: Prismatic Rated Capacity: 100Ah / 3840Wh (at 0.2C) Battery packs in series: Not Supported Battery packs in parallel: Supported Battery cycle life: 6000 cycles @ 0.2C (100% DoD) Rated / Nominal Voltage: 38.4V Operating Voltage Range: 30V – 43.8V Shipping Voltage: 36 – 43V Recommended Charge Voltage: 43.2V Max Charge Voltage: 43.2V (3.65V per cell) Cut-off Voltage: 30V (when lowest cell reaches 2.5V) Depth of Discharge (DoD): 100% (Recommended: 80%) Standard Charge Current: 20A Charging Time @ Standard Current: 4–5 Hours Maximum Charge Current: 100A Max Continuous Discharge Current: 100A Peak Discharge Current (2s): 200A Internal Resistance: ≤ 20mΩ Operating Power Consumption: ≤ 25mA Operating Temperature (Charge): 0°C to 55°C Operating Temperature (Discharge): -20°C to 60°C Storage Temperature (2 months): -20°C to 40°C Storage Temperature (6 months): -10°C to 35°C Recommended Storage Temp: 20°C ± 5°C Storage Humidity Range: 10% – 90% Recommended Storage Duration: Charge to 39.9V or 40–60% SoC every 6 months Cell Overcharge Protection: 3.65V ± 0.05V Cell Overdischarge Protection: 2.5V ± 0.1V Charging Overcurrent Protection: 105A (8 seconds) Discharging Overcurrent Protection: 1st: 180A (3.5s), 2nd: 200A (2s) Short Circuit Protection: 500A (400μs) High Temp Protection (Discharge/Charge): 60°C ± 5°C Low Temp Protection (Discharge/Charge): -10°C ± 5°C
