Tistar 12V 200Ah Lithium Battery

12V 200 Ah Tistar: Big-Time Lithium Backup for Your Off-Grid Setup!

Sick of your batteries carking it halfway through a trip? Whether you’re out bush, parked up at a caravan site, or running your shed off solar, the 12V 200Ah Tistar Battery is here to save the day.

No more worrying about the lights cutting out or the fridge conking it when it’s stinkin’ hot, this lithium beauty keeps your gear humming along without breaking a sweat. Built tough for Aussie conditions and smart enough to look after itself, it’s the kind of power you can trust to go the distance.

So don’t muck around, grab a Tistar 200Ah Battery and keep the power rolling!

Why The 200Ah 12V Tistar Battery May Be Right For You:

• Stay powered up longer thanks to the 200Ah lithium deep-cycle design, so you can run your fridge, lights, and gadgets for days without worrying about going flat.

• Enjoy peace of mind on every trip with the smart BMS (Battery Management System) that protects against overcharging, overheating, and short circuits — no dramas when you’re off-grid.

• Save your back and your setup with the lightweight lithium build, making it easy to lift, move, and install without busting a sweat.

• Get more bang for your buck with the long lifespan and high efficiency, meaning fewer replacements and more time enjoying the open road.

• Keep your power steady and reliable even in the harshest Aussie heat with the rugged, weather-resistant design that’s built tough for the outback.

⚡ Tistar 12V 200Ah Lithium Battery Tech Specs

Electrical Characteristics

• Nominal Voltage: 12.8 V (206 Ah capacity)

• Max Output Power: 2,560 W (recommended inverter: 2,000 W)

• Total Energy: 2,636.8 Wh

• Cycle Life: > 6,000 cycles @ 0.2C, 80% DOD, 25°C — built to last for years of touring and off-grid use

Mechanical

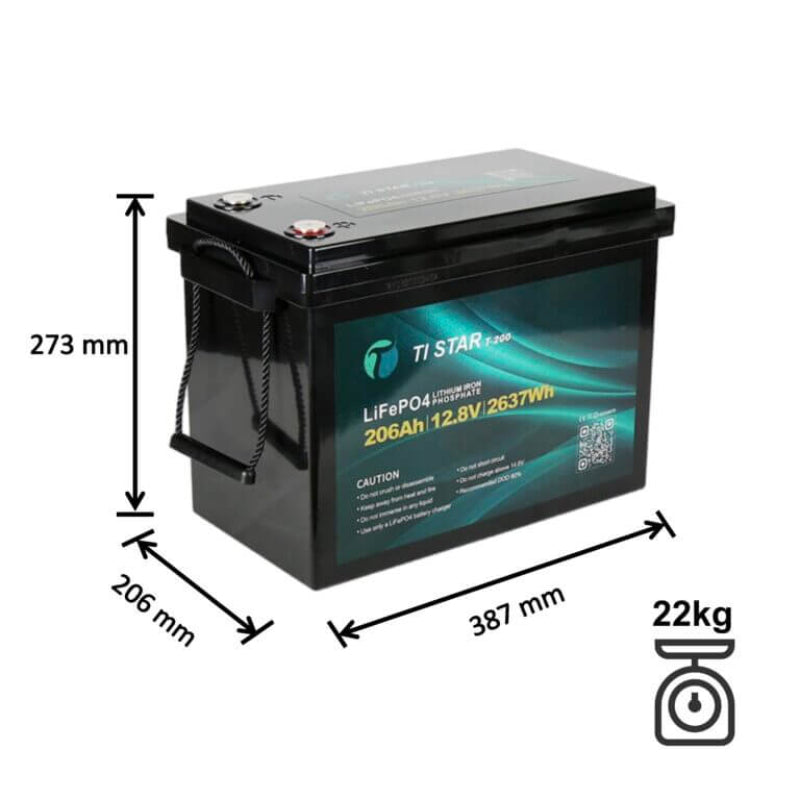

• Dimensions (L × W × H): 387 × 206 × 273 mm (including terminals)

• Weight: 22 ± 1 kg — light enough to lift without pulling a muscle

• Case Material: ABS — tough as nails

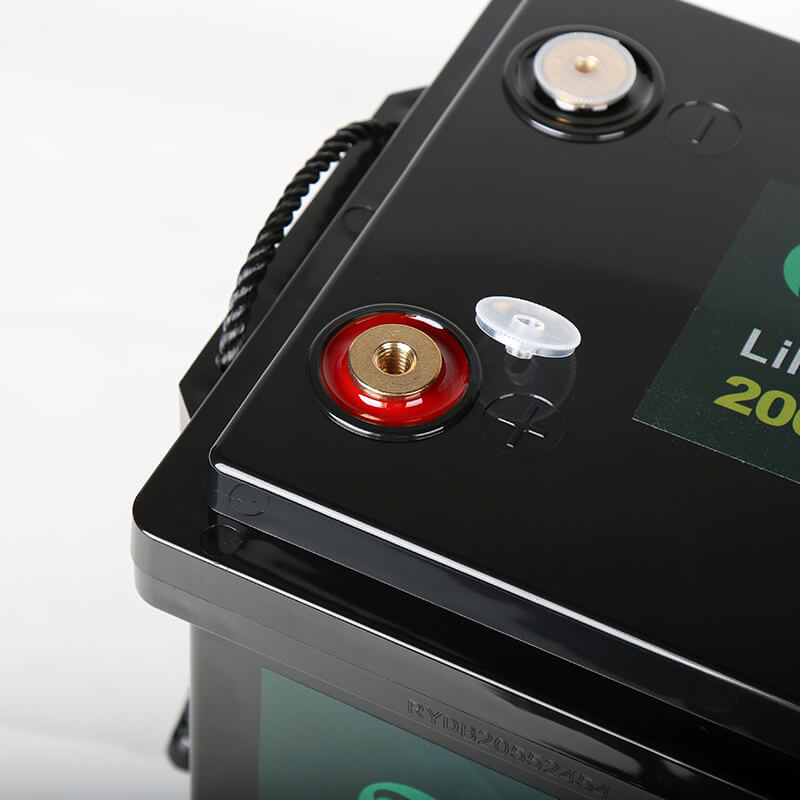

• Terminal Type: M8

• Parallel Connection: Supports up to 4 units — stack ’em for more juice

Standard Charge

• Charge Voltage: 14.6 V ± 0.2 V

• Charge Mode: CCCV (Constant Current / Constant Voltage)

• Recommended Charge Current: 40 A

• Max Charge Current: 200 A

• Charge Cut-Off Voltage: 14.6 V

Standard Discharge

• Continuous Discharge Current: 200 A

• Max Discharge Current: 420 A (3 seconds surge)

• Discharge Cut-Off Voltage: 10.0 V

Environmental

• Charge Temp Range: 0 °C to 60 °C

• Discharge Temp Range: −20 °C to 65 °C

• Storage Temp Range: −5 °C to 45 °C

• Ingress Protection: IP67 — dust-tight and waterproof, perfect for Aussie conditions

Extra Features

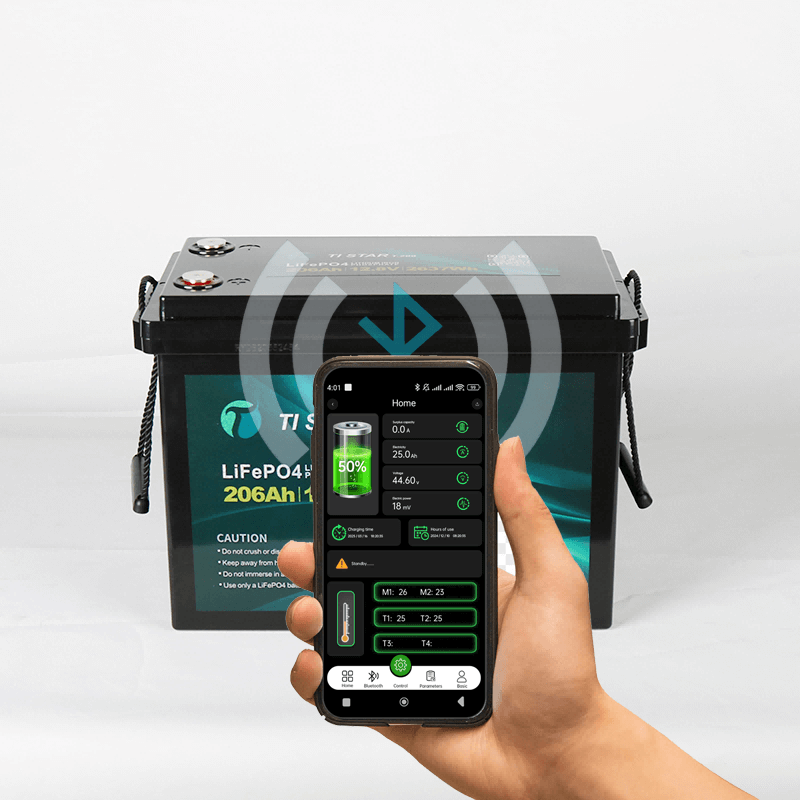

• Bluetooth 4.0 Monitoring (via iOS & Android app) — check your battery health and charge from your phone, no dramas.
